MADDALENA ARROW WAN 2 SPLIT

Separate wMBus and LoRaWAN™ radio module, ensuring a high level of interoperability with a range of mobile and fixed network reading systems, including third-party ones. Arrow WAN 2 split is also suitable for difficult Utility installations (IP68). Compatible with all Maddalena pulse emitter modules.

Ask a question

Description Specification Features

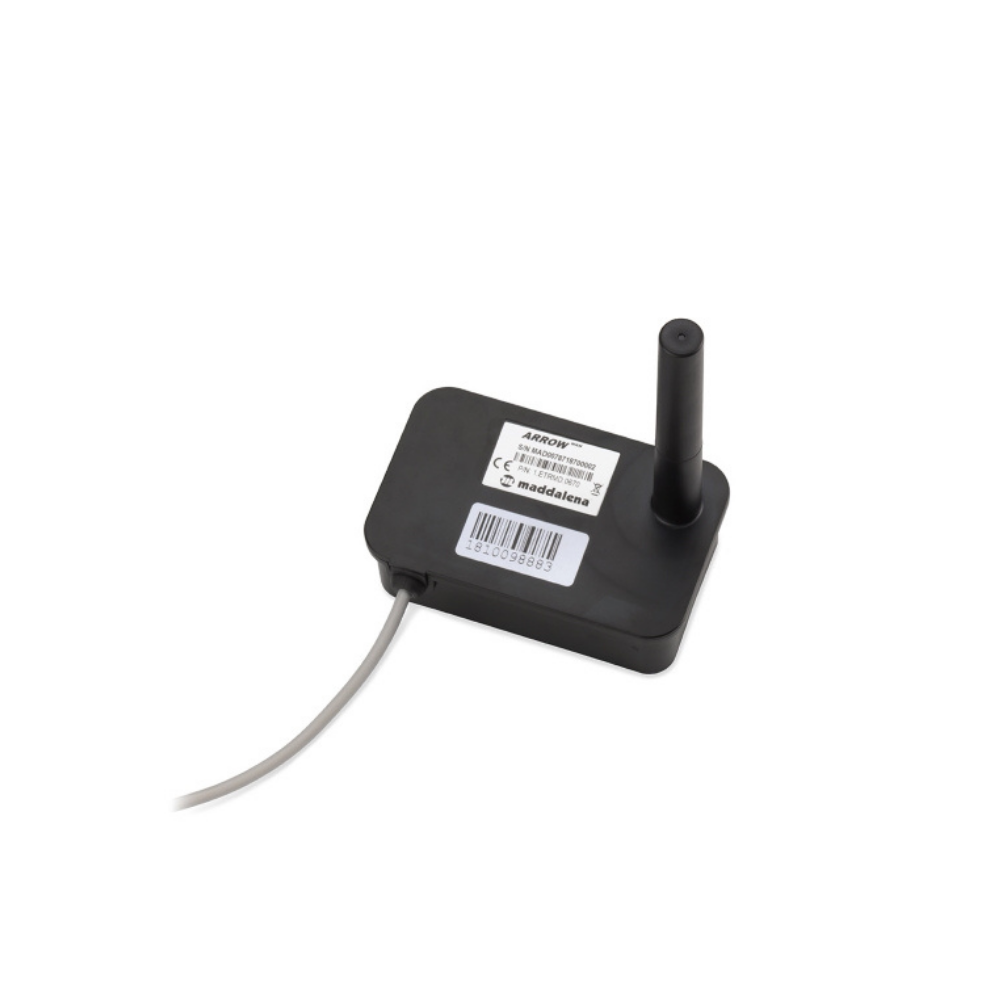

ARROW WAN 2 SPLIT

wM-Bus AND LoRaWAN™ EXTERNAL RADIO MODULE

Separate wMBus and LoRaWAN™ radio module for the ISM 868 MHz band for water meters equipped with pulse sensor. Compatible with all Maddalena meters from DN 15 to DN 300. Data communication protocol compliant with the OMS wMBus (EN 13757) and LoRaWAN™ standards. The multiprotocol radio guarantees a high level of interoperability with a range of mobile and fixed reading systems, including third-party ones.

Battery powered, with a battery life of up to 15 years (depending on the type of configuration and the number of readings/transmissions). Activation and configuration are carried out locally using the NFC interface and a dedicated Android app.

868 MHz band
Communication protocol compliant with the OMS wM-Bus and LoRaWAN™ standards
wMBus protocol in T1, C1 communication mode
LoRaWAN™ protocol with two-way communication
Dual or single mode operation available
Omnidirectional internal antenna

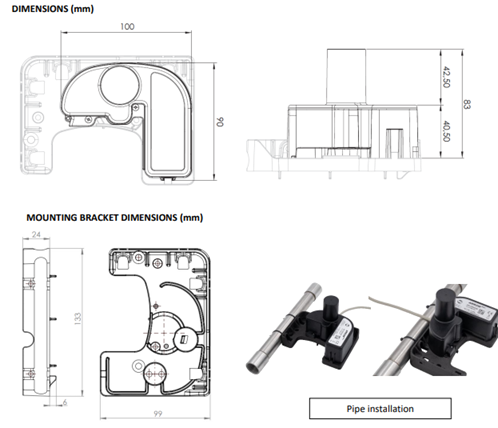

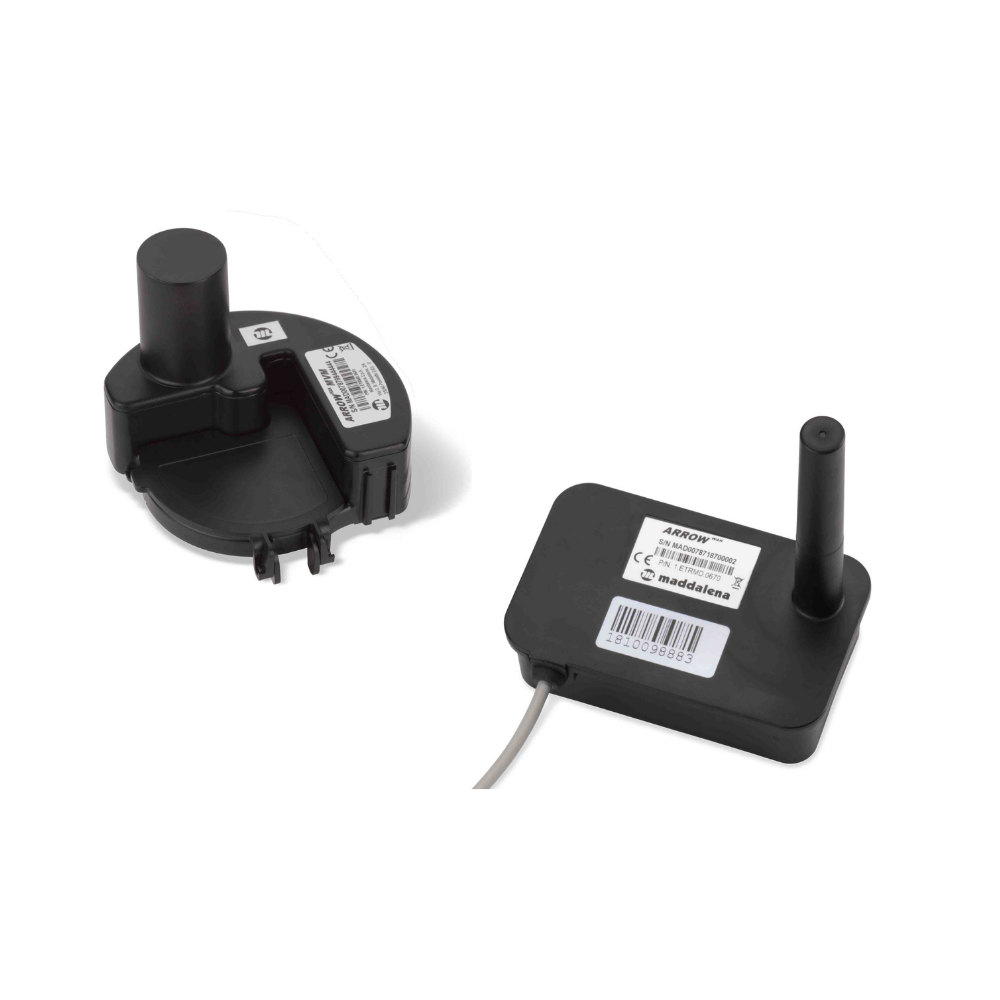

Easy installation using mounting bracket (code 5300020A): wall, pipe (vertically or horizontally) or E-BULK meter.

Specification	Value
Built-in radio interface	EN 13757 OMS – wM-Bus T1, C1 LoRaWAN™ v. 1.03 Class A – LoRa SF7-12, BW125-500, CR=4/5
Operation frequency band	863 to 870 MHz
Reception sensitivity	Up to -136 dBm (maximum)
Transmission power	Up to 14 dBm (25 mW)
Transmission range	Up to 500 m with wM-Bus Up to 15 km with LoRaWAN
Configuration	Factory default or customer-specific, configurable
Data	Reading indexes (depending on configuration)
Alarms	Excess consumption, no consumption, reversed meter, return flow, leak, low battery, magnetic fraud, mechanical fraud
Operating temperature range	-10 °C to +55 °C
Protection rating	IP68
Meter interface	4 wire: earth, pulses, flow direction, fraud Types of meters supported: open drain transistor, reed switch or any other open/close switch Maximum pulse frequency: 12.5 Hz nominal Minimum pulse width: >40 ms nominal Cable length: 1.5 m nominal
User interfaces	NFC interface (installation and configuration procedure) Standard contactless interface: ISO 15693 (frequency: 13.56 MHz)
