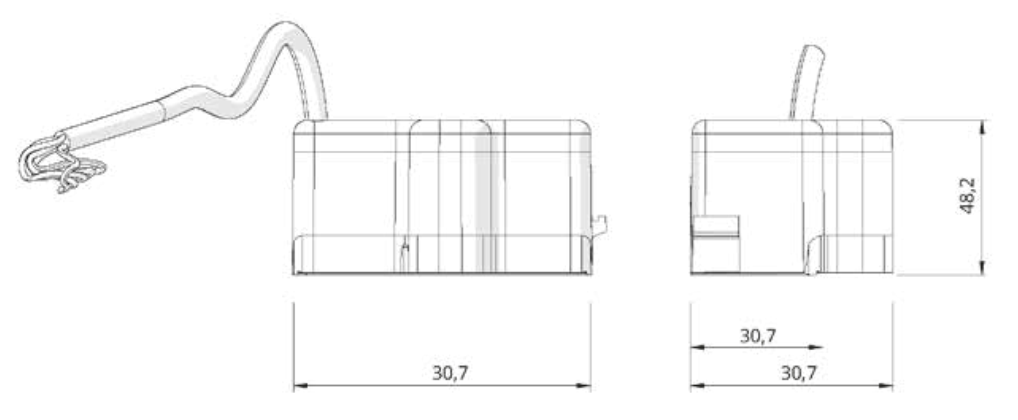

Compact wired module for M-Bus protocol communication. Activation takes place automatically or at the programming stage via Master M-Bus and dedicated software.

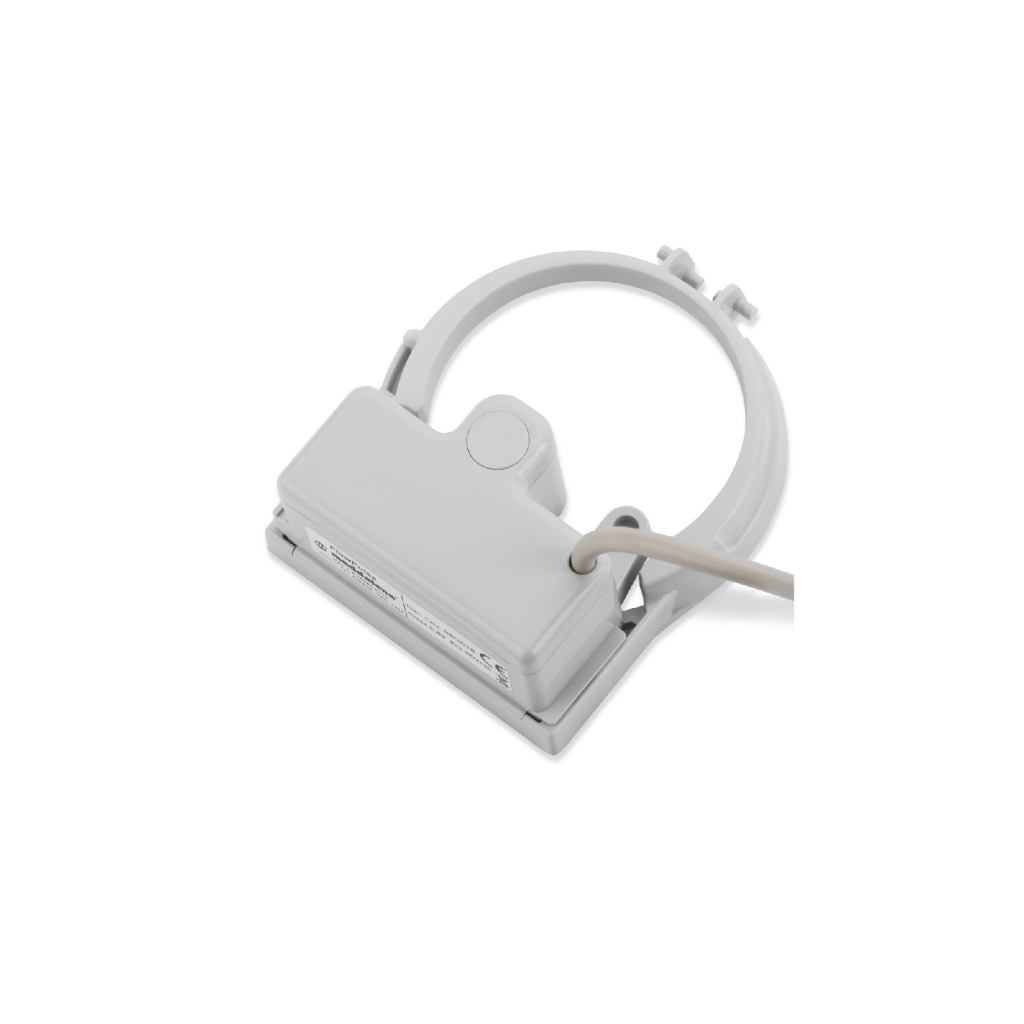

Static pulser featuring an NPN output for MVM and MVM PLUS C positive displacement and WMAP EVO Woltmann type water meters.
| Specification | Value | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Type | Microprocessor, inductive pulser | ||||||||
| Power supply | 3 V lithium battery | ||||||||
| Battery service life | 15 years (average service life under standard conditions, not guaranteed) | ||||||||
| Average battery service life |
|
||||||||
| Maximum pulse frequency | 10 Hz | ||||||||
| Approvals | EC, European Directive on Electromagnetic Compatibility | ||||||||
| Operating temperature | -10 °C to +55 °C | ||||||||
| Storage temperature | -20 °C to +70 °C | ||||||||
| Environmental class | C | ||||||||
| Electromagnetic class | E2 | ||||||||
| Protection rating | IP68 |
| Specification | Value |
|---|---|
| Digital outputs (5 wires) | Pulse output, flow direction, fraud, ground, forward pulse counter |
| Output type | NPN open collector, 30 V DC, 50 mA DC |
| Pulse duration | 125 ms |
| Pulse factor | MVM / MVM PLUS C DN 15–DN 32: 1 pulse/litre DN 40: 1 pulse/10 litres WMAP EVO |
| Cable length | 2 m |
| Wire | Signal | Description |
|---|---|---|
| White | Pulses | Pulse signal both with forward flow and reverse flow |
| Yellow | Direction | Contact closed = return flow |
| Green | Fraud | Contact open = fraud |
| Brown | Ground | Common ground signal |
| Grey | Forward pulses counter | In the event of reverse flow, the meter counts the reverse volume internally. When forward flow is restored, no pulses are generated until the reverse-flow volume returns to zero. |
