MADDALENA REED SWITCH TRP

MADDALENA REED SWITCH TRP

Reed switch pulse emitter, it can be installed later on suitable meters to provide communication with standalone radio modules.

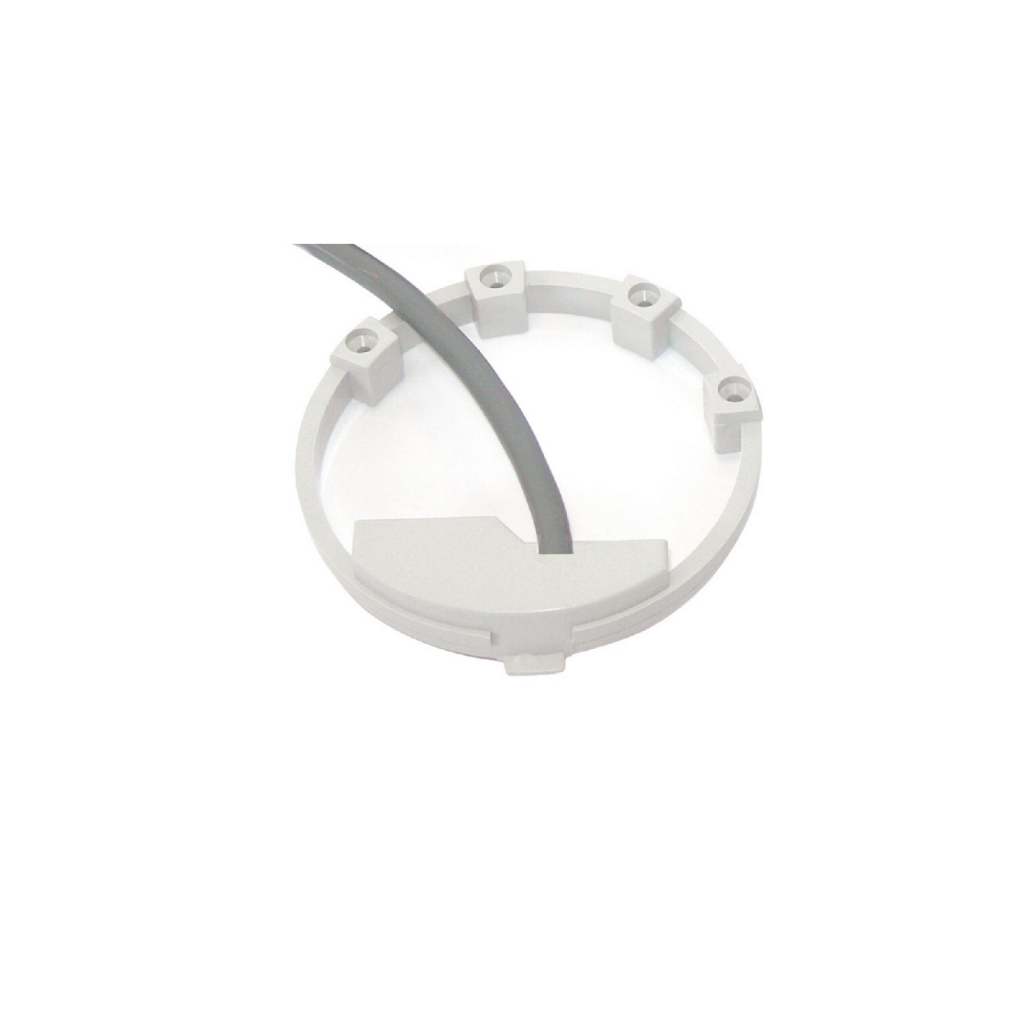

MADDALENA REED SWITCH TRP PULSER

Reed switch pulser for CD/SJ and DS TRP multi-jet. Gives a number of pulses proportional to the volume flowed

  • For CD ONE/SJ ONEE single jet and DS multi-jet water meters
  • Pulse ratio: 1/10/100/1000 litre/pulse
  • Does not affect meter performance
  • External power supply
  • Protection rating: IP68
  • Retrofits to pre-equipped meters
  • Easy to install and replace
  • Designed for remote reading systems, batching systems, etc.

• Resin potted reed switch contact
• Protection rating: IP68
• Contact ratings: 24 Vac/Vdc, 0.1 A
• Cable length: standard 1 m
• Operating temperature:
-10°C ÷ +50°C (DS TRP)
-10°C ÷ +90°C (CD/SJ ONE)
• Storage temperature: -20 °C ÷ +70 °C
