Ultrasonic Flaw Detectors, ECHOGRAPH 1095
Precise measurement with easy operating in clear text

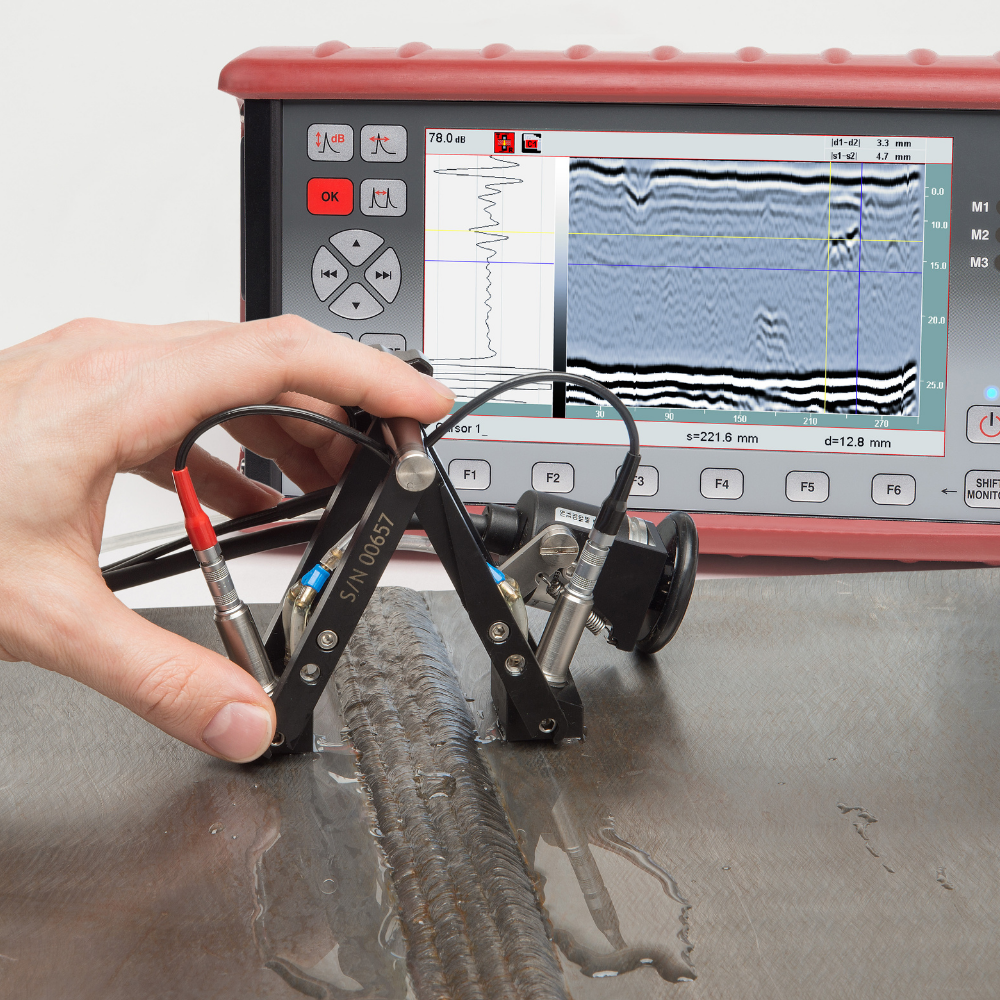

Powerful, compact and user-friendly
The powerful ultrasonic flaw detector features 3 monitors for amplitude and time-of-flight measurement and 3 associated status lamps on the front panel for monitoring of threshold levels. The very compact instrument (54 mm case depth) provides fast digital ultrasonic electronics with a high sampling rate and pulse repetition frequencies up to 5000 Hz.
Operating assistance for less-experienced users
A convenient user guidance supports less-trained UT inspectors, also during probe handling and instrument adjustment: Simply activate the wizard and follow the instructions on the screen. Even difficult evaluation procedures for defect sizing (DAC/TCG, JIS, AWS or DGS) are set almost automatically.
Display Evaluation with DGS and DAC

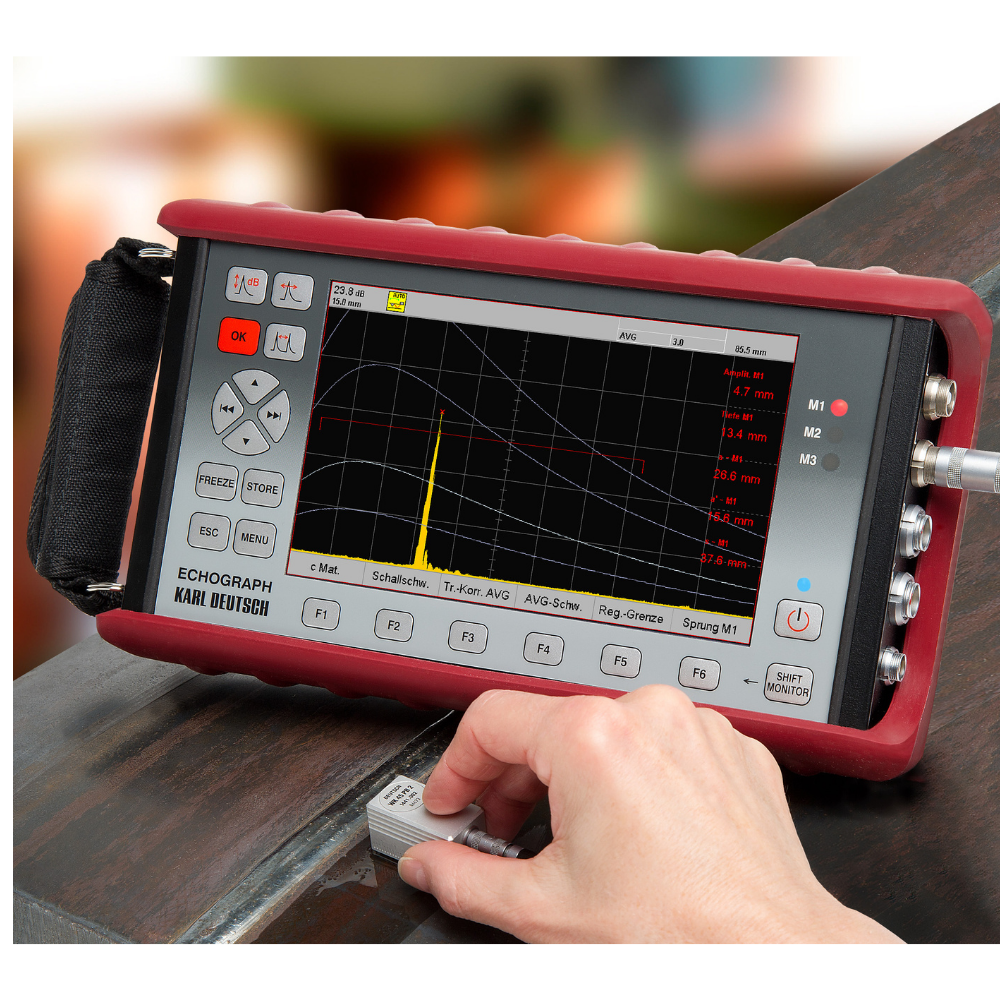

Display evaluation DGS method (option):
- Not restricted to special probes (DGS curve is calculated within the instrument)
- Visualisation of the reference DGS curve
- Defect size (FBH = flat bottom hole) is directly shown
- DGS with KARL DEUTSCH TR probes
- Indication of up to 6 additional threshold curves
Display evaluation DAC method (option):
- Reference line method (EN 1330-4)
- Optical and acoustical alarm when exceeding or dropping below the curve
- Indication of up to 6 threshold curves
- DAC support points can be manually added, shifted and deleted (up to 16 points)
- Calculation of time corrected gain from the DAC curve
Time Corrected Gain TCG
For TCG evaluation the gain is adjusted depth-dependent according to the previously recorded DAC curve (option). As a result, large reflectors with equal sizes are displayed with equal amplitudes though they are located in different depths.
Backwall echo attenuation
Very often the flaw echoes between transmitter pulse and backwall echo are much smaller than a backwall echo used for monitoring of coupling. With activated backwall echo attenuation monitor 3 can be shifted over the backwall echo and a separate gain can be selected there. As a result, it is possible to show all interesting echoes in a useful height (in the example picture: amplification 28 dB within and 45 dB outside of monitor 3.
High-precision wall thickness measurement
The high-precision distance measurement is executed with the aid of signal zero crossings and uses the RF-mode of the unit. Exclusively considering zero crossings minimizes influences of amplification and signal shape, thus wall thickness values are highly accurate and stable. Besides arithmetic averaging, storing of minimal and maximal values is available. As a result, the unit is optimized e.g. for the measurement of corrosion.
