Description

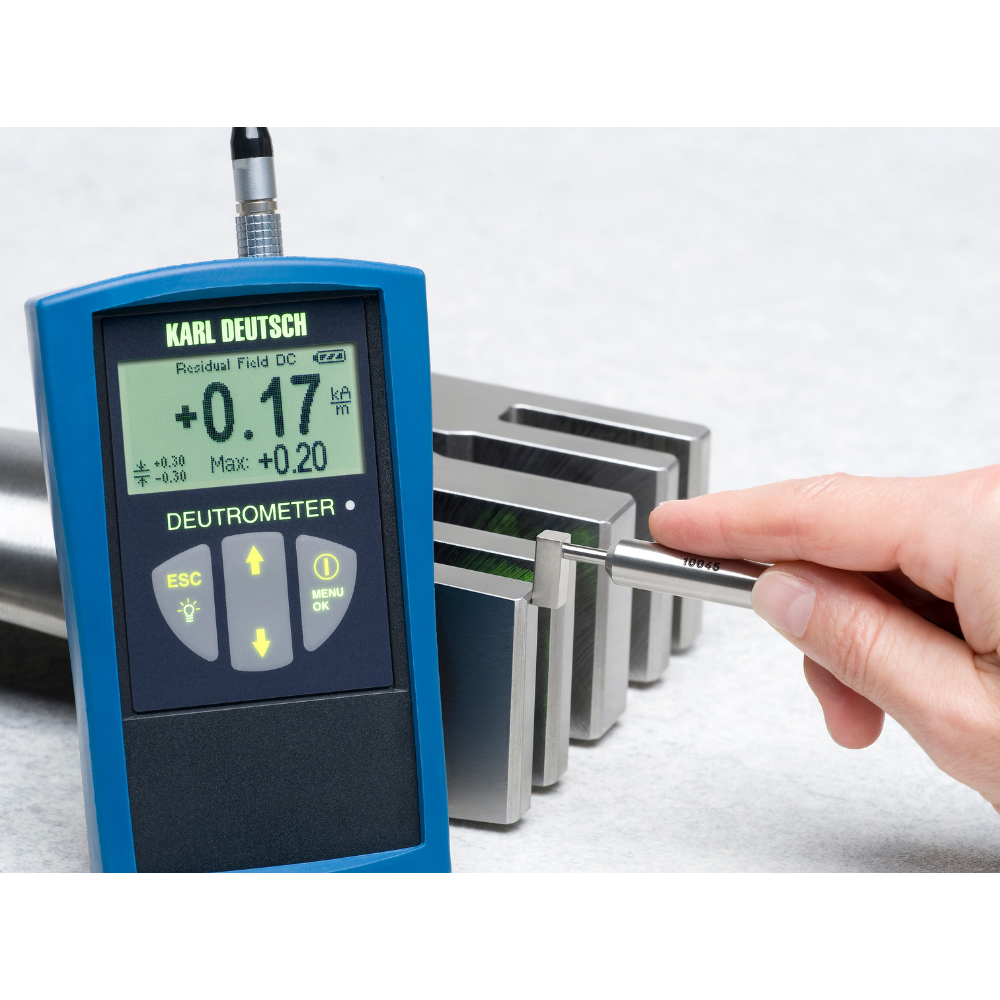

DEUTROMETER 3873
Field Strength Meter
Application
With nondestructive crack detection of magnetizable workpieces the gauge is mainly used for the measurement of the tangential field strength during the magnetization and for the measurement of the residual field after the demagnetization.
In addition the DEUTROMETER can be used also as a flux density measuring instrument (Tesla meter).
During the magnetic particle crack detection workpieces are magnetized by means of a current or a field flow.
For a secure indication of cracks a minimum magnetizing field strength must be reached in this case. After termination of the test cycle the workpiece becomes demagnetized again and environmentally neutral.
In a quick and precise manner the DEUTROMETER 3873 is capable of checking whether the required strength of the magnetizing field was reached and whether the residual field strength after demagnetization is below a limit.
In doing so the instrument needs not to be toggled manually: The field detection of the instrument automatically selects the required operating mode.
The menu guidance is executed in comprehensible plain text. The illuminated display and the lettering which fluoresces under UV light permit safe and convenient operation of the instrument also inside the darkened testing booth.
Operating modes
The user of the DEUTROMETER can select from four operating modes:
- Measurement of alternating/direct field (automatic detection)
- Measurement of alternating/direct field (automatic detection) with limit monitoring
- Measurement of direct field (e.g. for residual fields)
- Measurement of alternating field (e.g. measurement of the magnetizing strength)
Probes
For optimal adaptation to the geometrical conditions you can choose between a 0° and a 90° measuring head. An alternative, paraffin-resistant execution makes the probes especially robust and thus suitable for crack detection using oil-based testing agents.
