MADDALENA UNICO TOOL

868 MHz wM-Bus radio transceiver with long-lasting rechargeable battery. Compatible with Maddalena radio modules and meters, as well as other wM-Bus devices. Uses a Bluetooth or USB C interface to send and receive data via a mobile device. It also provides the following interfaces for local programming of devices: M-Bus (master up to 5 meters), IRDA optical head jack, NFC, ISM 868MHz radio in wM-Bus T1/C1.

Uzdodiet jautājumu

Apraksts Specification

UNICO TOOL

UNIVERSAL CONNECTING TOOL

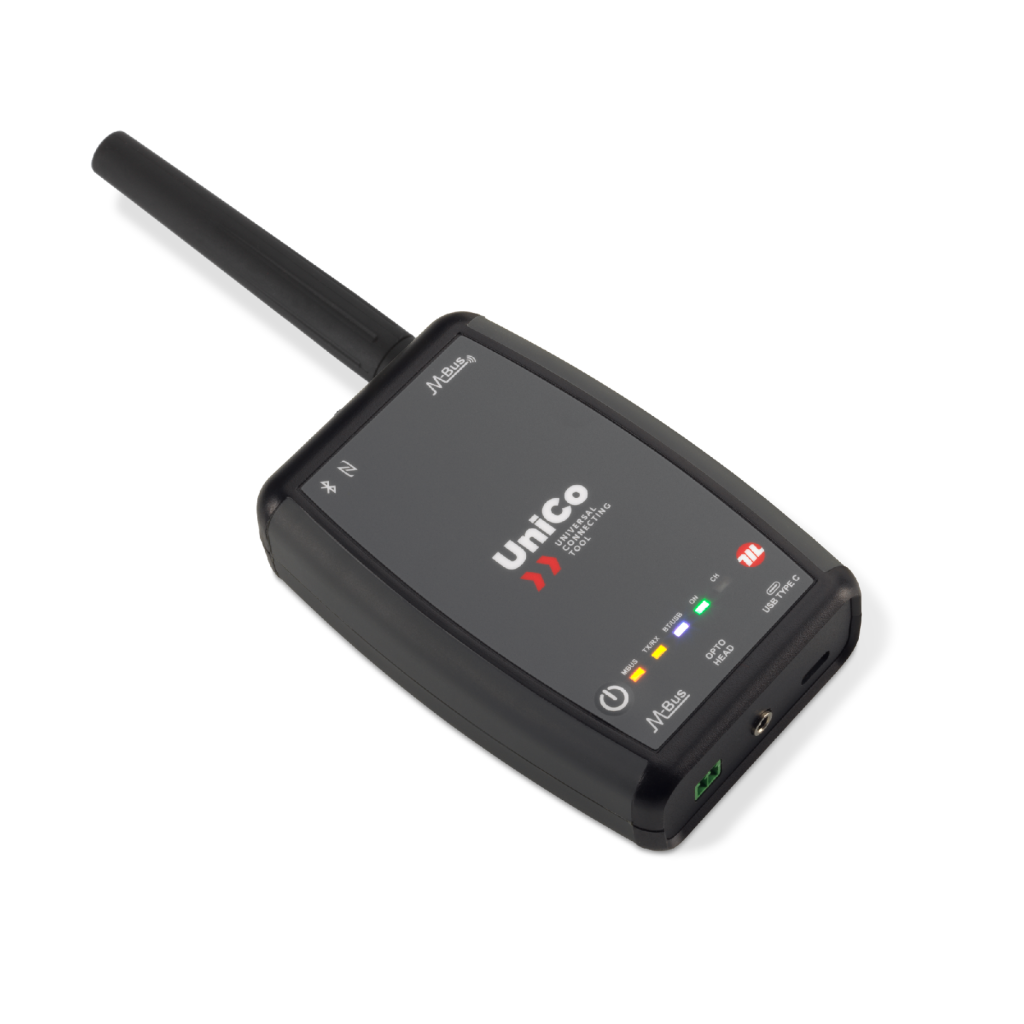

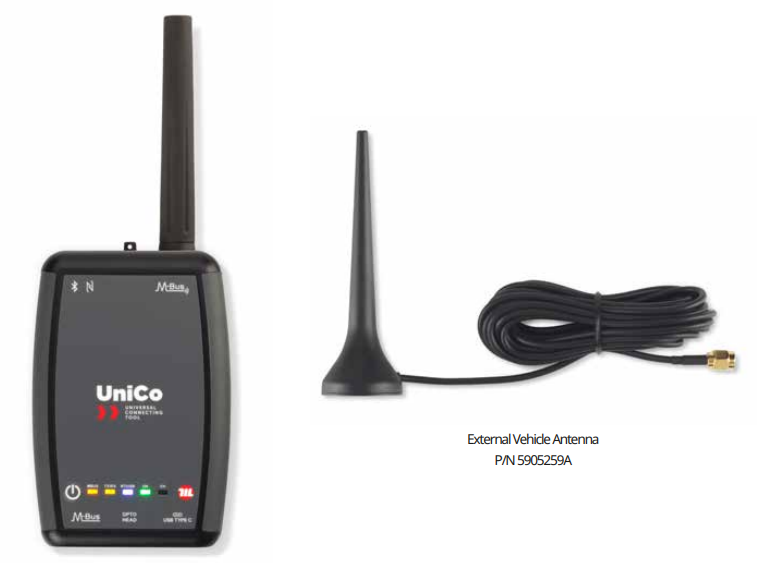

The name UniCo, acronym for Universal Connecting, identifies a compact, lightweight, and highly flexible multifunction device designed to operate in two main areas: receiving wM-Bus messages in T1/C1 mode on the 868 MHz ISM band and programming Maddalena devices. Connectivity with reading or programming applications and software is ensured via both USB-C and Bluetooth. UniCo integrates a wide range of interfaces, including an M-Bus (master) port supporting up to 5 unit loads, NFC, optical probe (Opto IR), and onboard 868 MHz ISM radio, allowing it to program all ElecTo Maddalena communication modules and meters with a single solution. It is available in a version with external SMA-type RF connector (P/N 1.ETRMD.1503), optimized for vehicle-mounted applications. Fully compatible with currently used Maddalena software, UniCo can also be integrated with third-party software.

Compact size: 117.2x79x32 mm
Power supply: Rechargeable lithium polymer battery
Antenna: built-in RF 868MHz with optional external antenna connector
Autonomy: > 10 hours
Recharge: via USB-C from PC or standard smartphone charger
Updatable FW, firmware updatable via USB
Includes carrying strap
Available communication interfaces:
- USB-C
- Bluetooth (BT)
- M-Bus (master) for up to 5 devices
- Optical probe input (jack)
- NFC port
- ISM 868MHz radio in wM-Bus T1/C1

GENERAL
Power supply	Rechargeable internal lithium-ion battery
Battery life	>10 hours
Certifications / Approv	RED – 2014/53/EU;RoHS – 2011/65/UE and subsequent revisions
