868 MHz radio repeater for data communication with the RTU EVO datalogger via MESH radio channel. It can receive up to 500 wM-Bus radio devices. Multi-hop function for extending the network using other repeaters. Only available with external power supply.

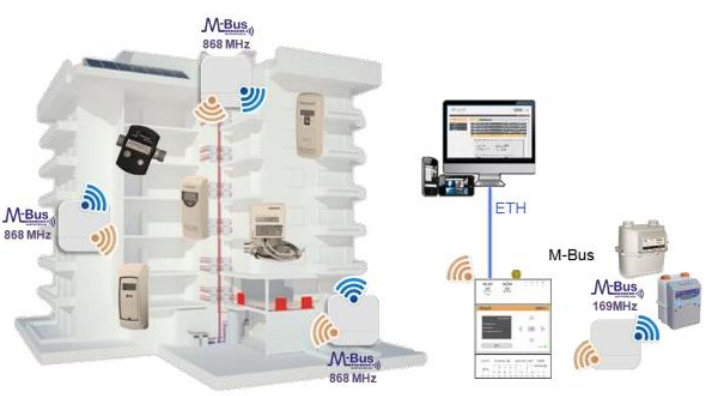

This family includes a range of wireless repeaters able to acquire the signal from one or more meters compatible with the Wireless M-BUS communication standard (868 MHz) and retransmit the received data to a network of other devices, thus extending the wireless range of the meters themselves. The data can also be logged by the 1.ETRSEQ.0051 datalogger. Each RPT can handle up to 500 meters and has a coverage extending up to 500 m in free space and 40 m inside buildings.

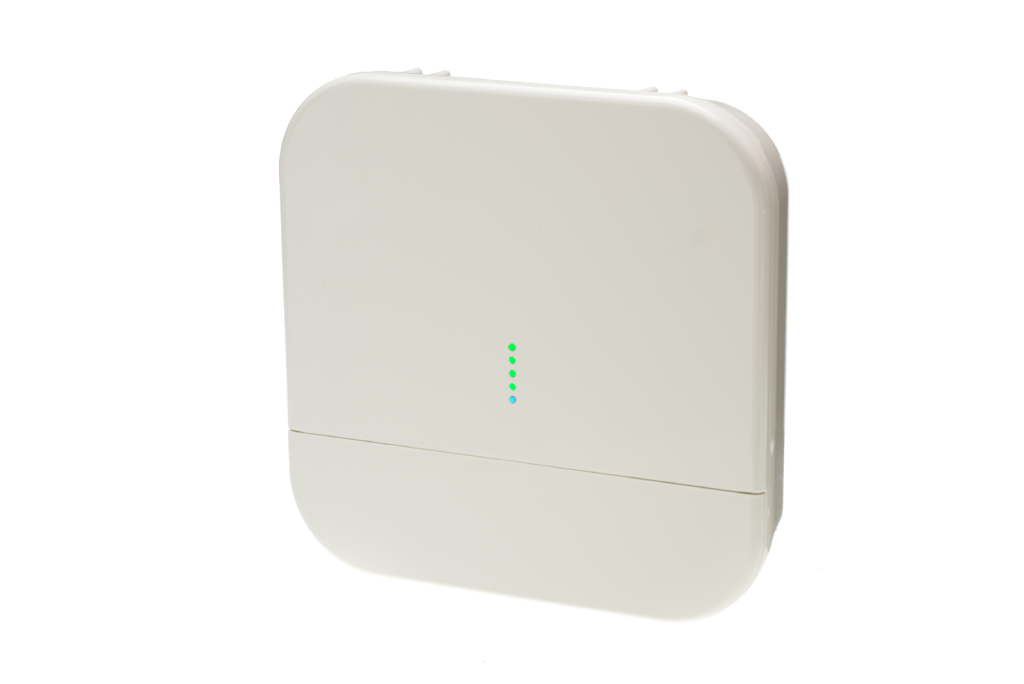

With a clean and elegant plastic case, fully hidden electrical connections and internal built-in antennas, the repeater is ideal for wall installation in visible locations as well. Commissioning is made easier by the device LEDs that show the strength of the radio signal available in the different tentative locations. The device can be powered from its USB port so that it can be easily moved while searching for the best installation location that provides the best signal-to-distance ratio.
The repeater has a multi-hop function which allows you to extend the network coverage when used with other repeaters. It is also able to handle meters compliant with Wireless M-Bus (868 MHz) and OMS. The received signals are retransmitted immediately, without time-shifting so as to provide consumption data in real time.
The repeater supports stand-alone mode, and it memorises the latest data received from each meter, thus making it possible to download the data it acquired using a datalogger.
| ELECTRICAL CHARACTERISTICS | |
| Power supply | 100 to 240 Vac at 50–60 Hz During commissioning/data reading: 5 Vdc via USB port (500 mA) |
| Installation category | Class II |
| Maximum consumption | 4.5 W |
| MECHANICAL CHARACTERISTICS | |
| Temperature range | Operating: −20 °C to +55 °C / Storage: −25 °C to +85 °C |
| Dimensions | 160 × 160 × 35 mm (H × L × D) – DIN fitting |
| Installation | Wall-mounted, with screws |
| Protection rating | IP40 (EN 60529) |
| MESH NETWORK INTERFACE | |
| Frequency | 868 MHz – max. transmission power: 27 dBm |
| Maximum distance between two RPTs | 500 m free space – 40 m in building |
| WMBUS NETWORK INTERFACE | |
| Regulatory references | EN 13757-4 (Physical Layer), EN 13757-3 (Application Layer) |
| Supported application layers (in combination with SIN.EQRTU1T or with SIN.EQSW) | Wireless M-Bus, OMS |
| Frequency | 868 MHz |
| Number of W-MBus meters supported | 500 |
| W-MBus Mode | S / T / T+C / S & T+C |
| Meter recognition mode | Based on data reception Based on SND_IR message receipt Meter list import from file |
| DATALOGGING | |
| Data retention | Latest sample received, 100 years |
| USER INTERFACE | |
| Power LED | Operating status |
| Signal strength LEDs | 4 LEDs for displaying wireless network signal strength |
| TX/RX status LEDs | 4 LEDs for displaying the status of the radio network and transmission/reception from meters |
