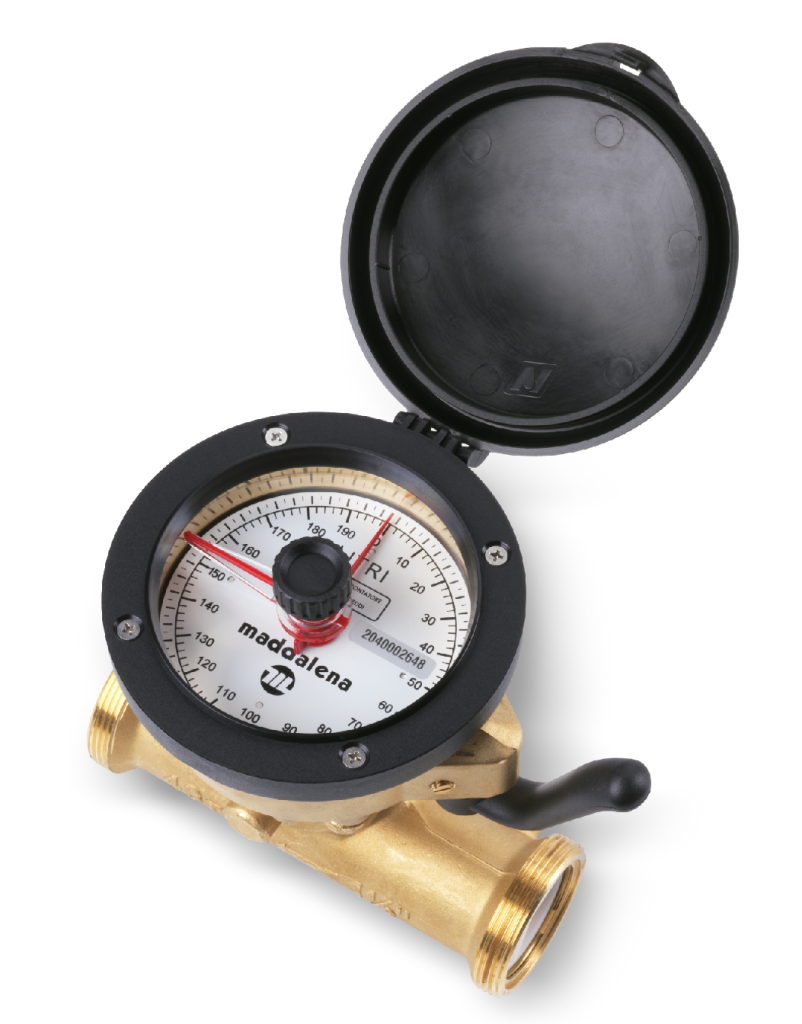

Manual or semi-automatic batch control unit able to significantly reduce operation times and simplify batching issues. Batch control units are used in industry, and in particular in the delivery of specific amounts of water in the cement manufacturing industry. The manual unit (TDML) features a pointer indicating the volume of water delivered, a preset pointer, and a meter reset lever. The semi-automatic unit (TDSL) features a preset pointer, to be positioned manually on the volume required at the beginning of the batching operation. As soon as the preset volume is reached, the instrument will issue an end-of-batch electric signal.
Manual or semi-automatic batch control unit able to significantly reduce operation times and simplify batching issues. Batch control units are used in industry, and in particular in the delivery of specific amounts of water in the cement manufacturing industry. The manual unit (TDML) features a pointer indicating the volume of water delivered, a preset pointer, and a meter reset lever. The semi-automatic unit (TDSL) features a preset pointer, to be positioned manually on the volume required at the beginning of the batching operation. As soon as the preset volume is reached, the instrument will issue an end-of-batch electric signal.

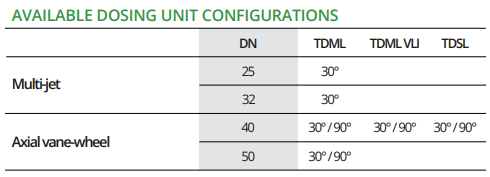

• Available in version with Manual Dosing Head (TDML) and Semi-automatic Dosing Head (TDSL – DN40 only)
• Large 4 mm shock-resistant polycarbonate display window
• Brass body (from DN25 to DN40) or cast iron body (for DN50)
• Hydraulic section for multi-jet meter (DN 25 mm and 32 mm) and with axial turbine meter (DN 40 mm and 50 mm)
• Dial reading range (full scale) variable according to type, meter size and application requirements. The minimum reading is always equal to one hundredth of the full scale
• Cover available for dial protection
• Operating temperature of 30 °C (option for temperatures up to 90 °C for the axial turbine version)
 | STANDARD FITTINGS KIT Consisting of 2 nuts, 2 brass tailpieces and 2 rubber gaskets |
|---|---|
SPECIAL FITTINGS KIT Consisting of 2 nuts, brass hose-tail fittings and 2 rubber gaskets. | |
 | OTHER DOSING SOLUTIONS 1-D-M RANGE DOSING UNIT Dosing unit that can be combined with all meters with pulse output. Rack-type preset counter with dual high-brightness LED display, with 6 buttons for instrument programming and dosing control. |
 |
 |
|---|---|

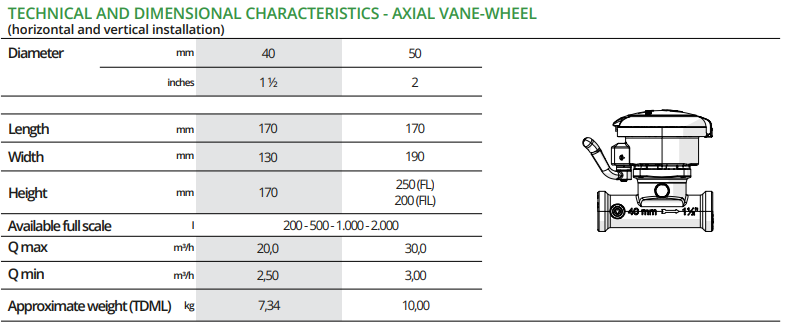

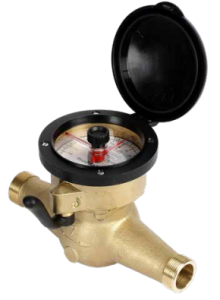

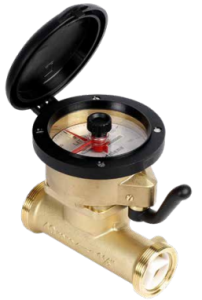

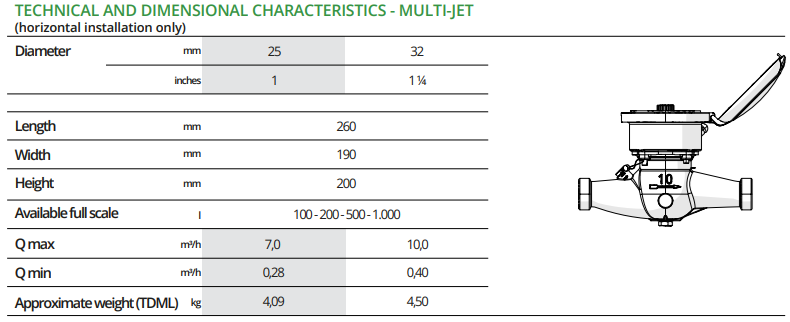

| Multi-jet hydraulics (DN25-32) | Axial vane-wheel hydraulics (DN40-50) |
Manual or semi-automatic dosing units significantly reduce working times and simplify dosing operations. The dosing unit is used in industry in general and, in particular, for dosing water in cement production.

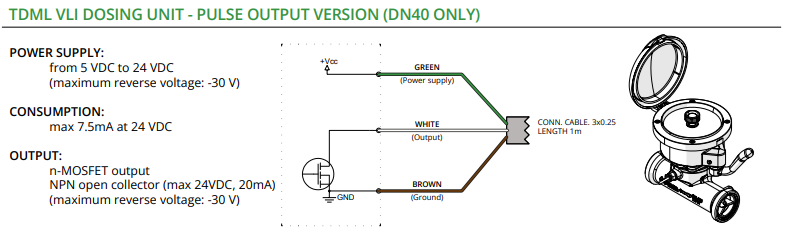

The manual dosing unit (TDML) is equipped with a pointer indicating the volume of water delivered and a meter reset lever. A version with pulse output is also available for DN40.
The semi-automatic dosing unit (TDSL) is equipped with a preset pointer, to be positioned manually at the start of the dosing operation according to the required volume; as soon as the set volume is reached, the instrument sends an electrical end-of-dosing signal.
