Description

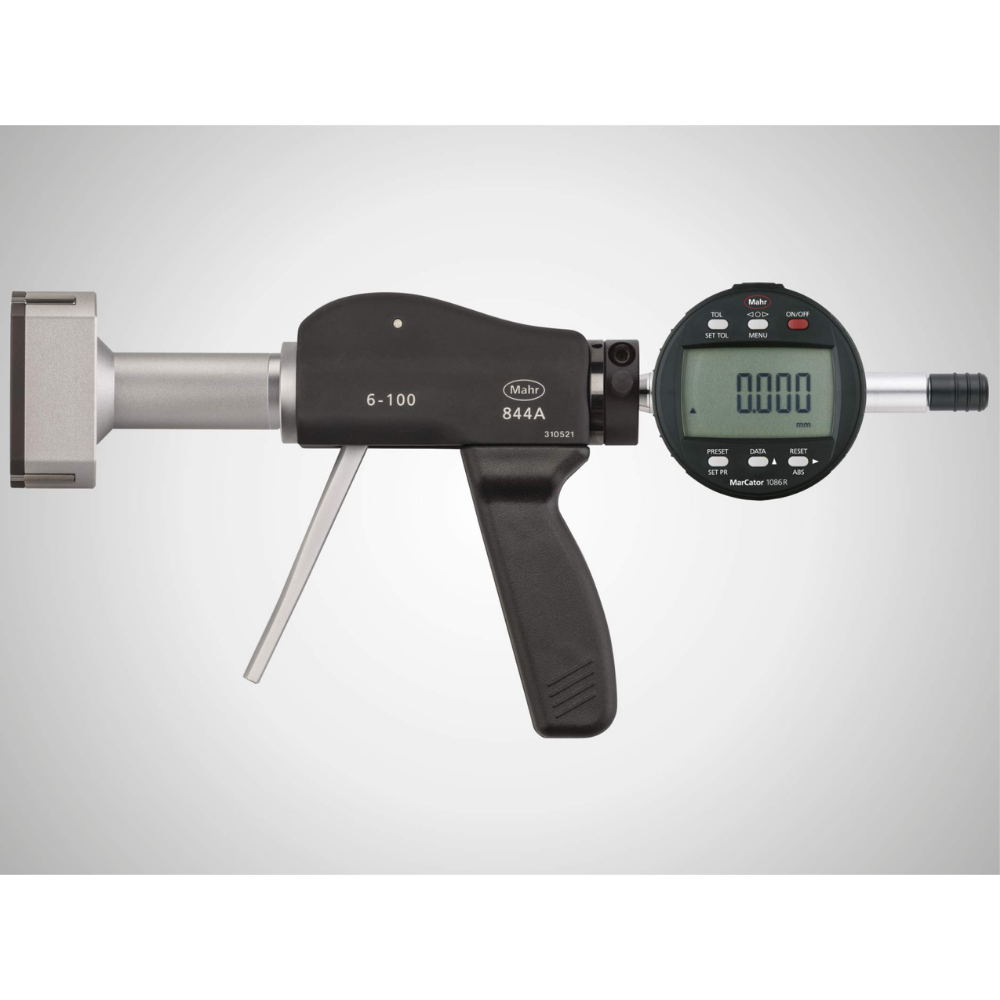

Micromar 844 A Self-centering inside measuring pistol
Technical data
| Order no. | Measuring range mm | Measuring range inch | Error limit µm | Notes error limit |
|---|---|---|---|---|
| 4487700 |
6 – 8
|
.25 – .3125″
|
3 µm
|
|
| 4487701 |
8 – 10
|
.3125 – .4″
|
3 µm
|
|
| 4487702 |
10 – 12
|
.4 – .4725″
|
3 µm
|
|
| 4487703 |
12 – 16
|
.4725 – .625″
|
3 µm
|
|
| 4487704 |
16 – 20
|
.625 – .775″
|
3 µm
|
|
| 4487705 |
20 – 25
|
.775 – 1″
|
3 µm
|
|
| 4487706 |
25 – 30
|
1 – 1.2″
|
3 µm
|
|
| 4487707 |
30 – 40
|
1.2 – 1.6″
|
3 µm
|
|
| 4487709 |
40 – 50
|
1.6 – 2″
|
3 µm
|
|
| 4487710 |
50 – 60
|
2 – 2.35″
|
4 µm
|
|
| 4487711 |
60 – 70
|
2.35 – 2.75″
|
4 µm
|
|
| 4487612 |
70 – 85
|
2.75 – 3.35″
|
4 µm
|
|
| 4487613 |
85 – 100
|
3.35 – 4″
|
4 µm
|
|
| 4487614 |
100 – 125
|
4 – 4.9″
|
5 µm
|
|
| 4487615 |
125 – 150
|
4.9 – 5.9″
|
5 µm
|
|
| 4487616 |
150 – 175
|
5.9 – 6.9″
|
6 µm
|
|
| 4487617 |
175 – 200
|
6.9 – 7.9″
|
6 µm
|
|
Applications
For measuring:
- through holes
- blind holes
- centering shoulders
