MADDALENA ULTRASONIC FLOW METER K-BULK

K-BULK ULTRASONIC FLOW METER

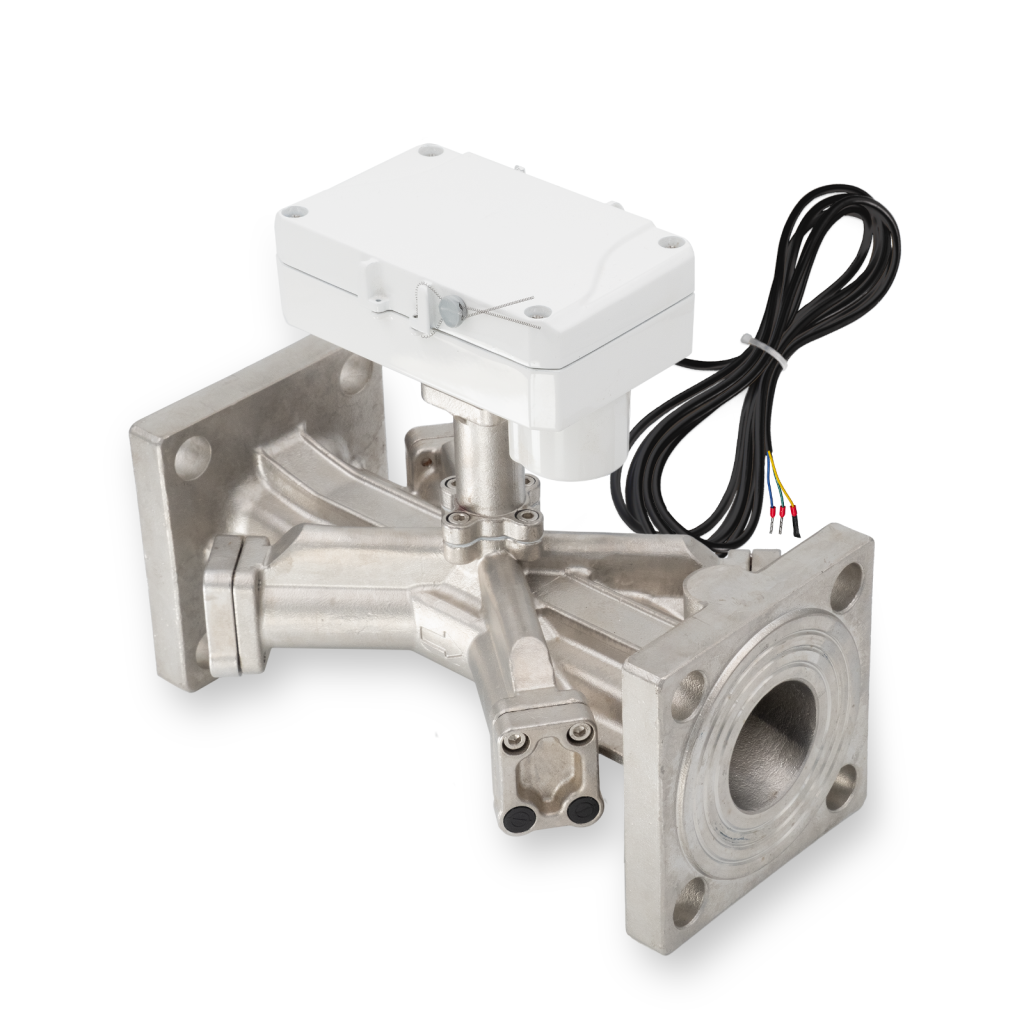

K-BULK is the ultrasonic flow sensor designed for precise thermal energy measurement in centralized heating and cooling systems. The measuring element, with no moving parts, ensures long-term reliability even under harsh operating conditions. The metallic body with IP68 protection includes battery-powered electronic (10+1 years lifetime), making the device suitable for humid or demanding environments. Thanks to the dual ultrasonic paths and compatibility with Maddalena KS3C calculators and KPTEG probes, K-BULK guarantees maximum accuracy and interoperability in direct metering systems.

• Dual-path ultrasonic measurement principle
• DN: 50 ÷ 300 • Accuracy class: 2 (EN 1434)
• Environmental class: C – indoor use
• Mechanical class M2 and electromagnetic class E2
• Protection rating IP68 (electronic unit and sensor)
• Power supply: battery (10 + 1 years lifetime)
• Installation: U0–D0, any position
• Open-drain synchronous pulse output
• 3 m cable, max voltage 12 V DC, max current 10 mA DC
• Available with multiple pulse-resolution options (1/10 – 1/100 L)

GENERAL TECHNICAL DATA

FLOW SENSOR TECHNICAL DATA

PULSE OUTPUT TECHNICAL DATA

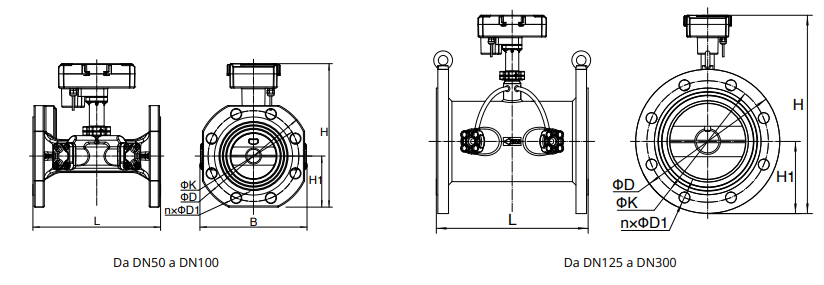

OVERALL DIMENSIONS
