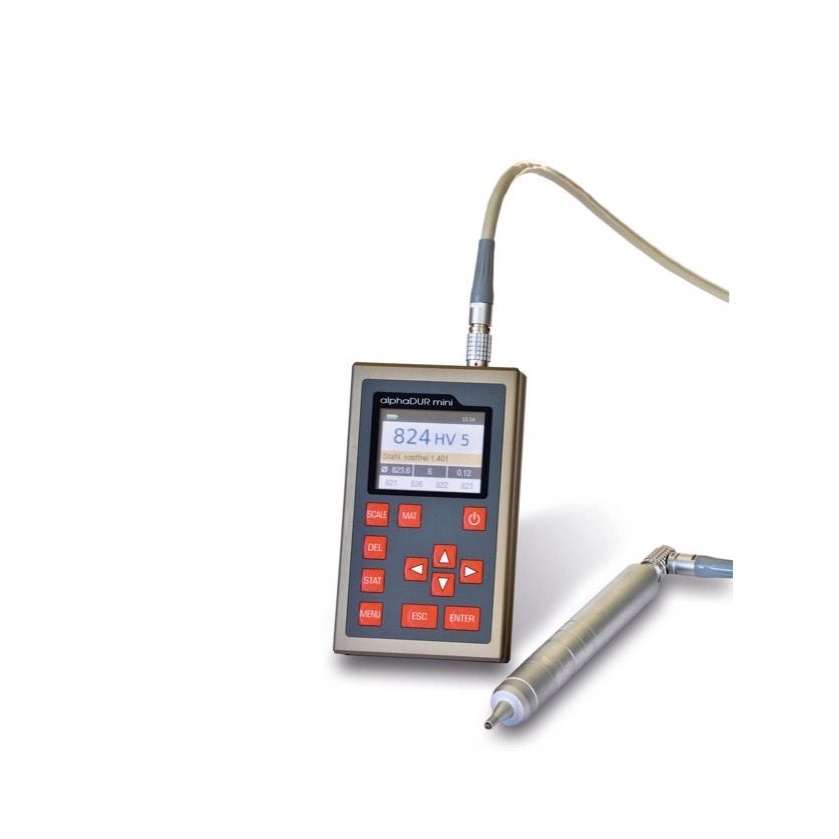

UCI Hardness Tester alphaDUR mini

The alphaDUR mini is the small and handy variant of the alphaDUR which has been successfully used in hardness testing since many years. The technology is identical and the accessories are compatible.

The operation of the alphaDUR mini is very easy because all information is shown on the large display. Hardness scale and material can quickly be changed by special keys.



Ask Question
Categories: , Product ID: 4785

Description

Fast and easy hardness testing

Incoming goods inspection. Hardness testing of metals in production. Testing of machine parts, weld seams, coatings and hardened parts even at difficult to access locations and at any angle
Due to the UCI measuring method measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 0.3 kg (HV 0.3) and 10 kg HV 10) can be chosen depending on the application and the sample surface.

Measuring method according to DIN 50159 and ASTM A1038
Robust metal casing
Large color display
Built-in Li-ion battery
Extensive storage and statistical functions
USB interface and PC software

Technical Specifications

Technical Specifications

  • Measuring method UCI (Ultrasonic Contact Impedance) according to DIN 50159 and ASTM A 1038-05
  • Test load 3, 10, 20, 30, 49 or 98 N, depending on the UCI probe (HV0.3 – HV10)
  • Testing Materials: Preferably metals, material calibrations can be saved in the device.
  • Measurements on glass, ceramic and plastic are possible if comparison measurements for calibration are done. Minimum thickness for steel app. 5mm (depending on the sample geometry)
  • Hardness scale HRC, HV, HB, HRB and tensile strength
  • Uncertainty of measurement <2% to the value of the hardness test block
  • Display Colour LCD 320 x 240 pixels
  • Interface USB
  • Data memory 100,000 data records with date, time and GOOD/BAD rating
  • Data transfer: Direct protocol printout with mini thermal printer
  • PC-Software
  • Data transfer on USB flash device
  • Statistics Average value, minimum, maximum, standard deviation
  • Battery Built-in Li-ion battery, battery life approx. 6.5 h, rechargeable by charging adapter or USB port
  • Language Menu: English, German, French, Polish, Russian, Turkish
  • Manual: English, German, French, Polish
  • Dimensions 135 x 80 x 23 mm
  • Weight Device 320 g, probe 190 g
  • Minimum sample thickness Approx. 5 mm (depends on the dimension and the shape of the sample)

Supplied with:

  • Basic UCI hardness tester with built-in battery
  • Probe (3N, 10N, 20N, 30N, 49N or 98N) with connection cable
  • USB cable
  • USB charging adapter
  • Carrying case
  • Manufacturer certificate
  • USB flash drive with manuals (PDF)
