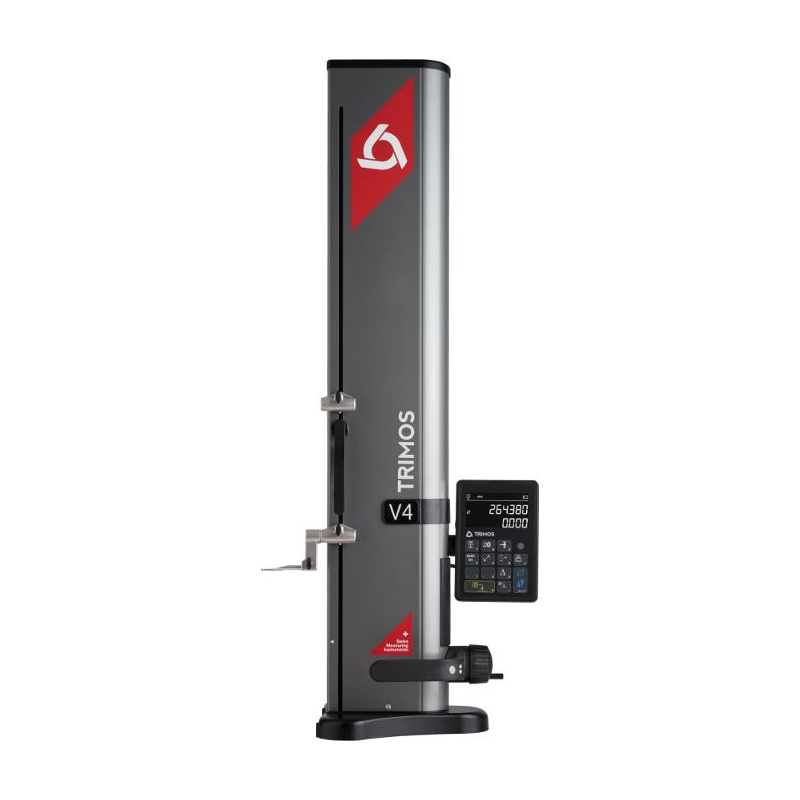

Trimos height gauge V4

An easy-to-use, universal and reliable height gauge for the most difficult workshop environments.

Ask Question


The height gauge V4 have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product on the long run.

For more than 40 years Trimos philosophy has been to offer easy-to-use instruments that are very efficient in production environment.

The display unit provides functions that are directly accessible and depicted with symbols easy to understand.

This allows for easy and quick handling even by unqualified personnel. The large 2-line « Black Mask » display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market.

The V4 measuring column offers the same functions as the V3. In addition it is equipped with a second probe holder as well as with an air cushion for easy displacement on the measuring table. The programmable functions buttons of the handle allow a quick access to the functions most used.


V4 400 700
Measuring range mm (in) 407 (16) 711 (28)
Application range mm (in) 719 (28) 1023 (40)
Max permissible errors, BMPE µm 4.5 6
Repeatability, RMPE (2s) µm 2 (Ø: 4)
Frontal squareness deviation SMPE µm 10 15
Max. Resolutions mm 0.001 (0.00005)
Measuring force N 0.75 ÷ 1.5
Autonomy h 20
Interfaces USB / RS232
Air cushion Yes
Weight kg 21 24
