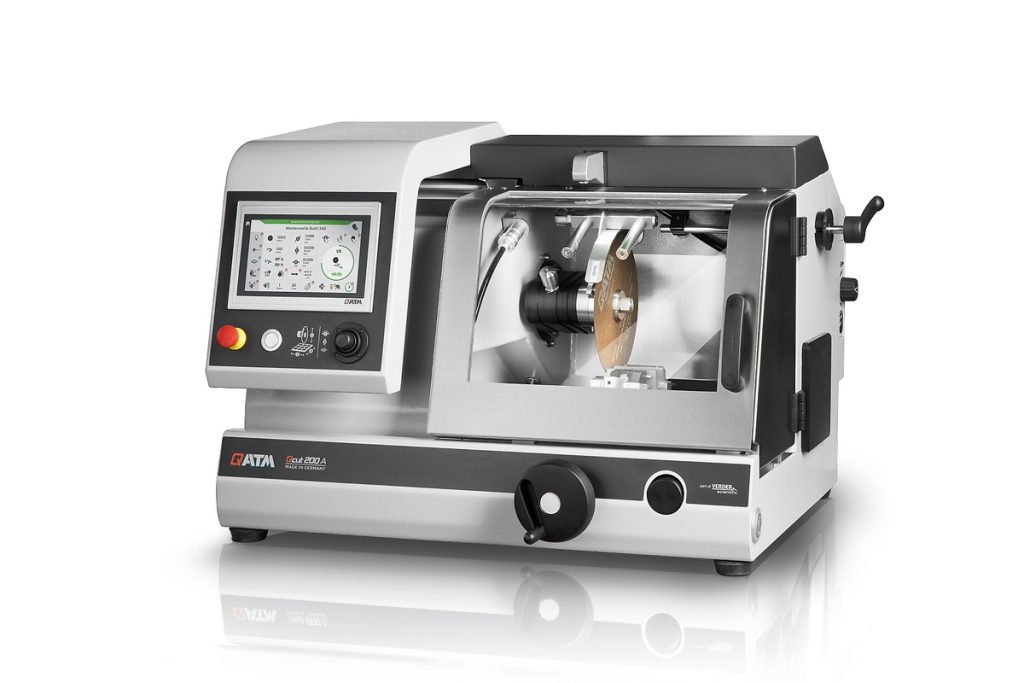

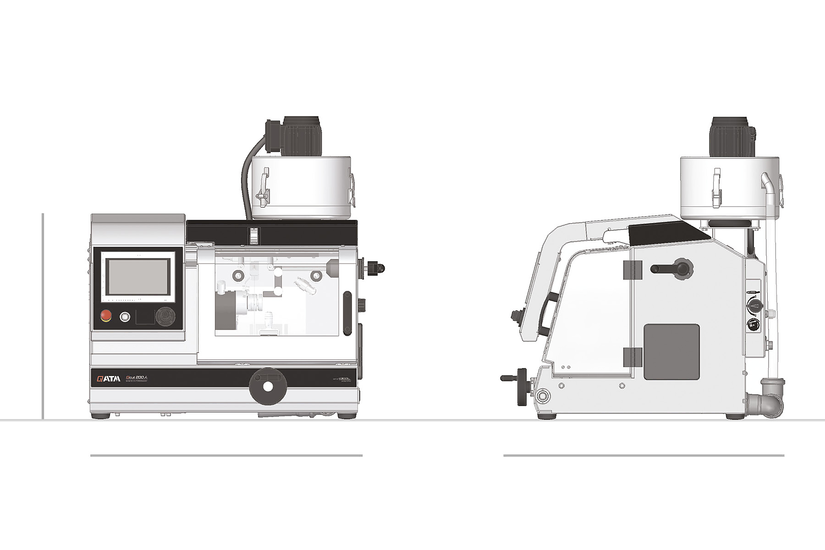

Precision cut-off machine Qcut 200 A

The Qcut 200 A is a compact, precision cut-off machine that offers the highest possible flexibility and use of space, with up to three automatic axes (X, Y, Z) and numerous cutting functions. Thanks to its modular design, the Qcut 200 A can be optimally equipped with numerous options and suitable clamping tools.

Product Advantages

• Fully automatic precision axes with backlash free bearings
• New cooling system with approx. 25% higher flow rate than comparable machines which reduces the cut-off wheel wear by up to 15%
• Automatic cleaning function
• New software functions for grinding applications
• Simplified cut-off wheel change
• New modular adaptable turning device

Features

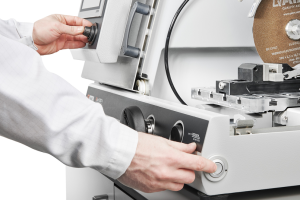

Highest demands of safety

• Due to the enabling switch, the machine can only be positioned via the two-hand control when the door is open.
• The risk of crushing for the machine operator is virtually eliminated

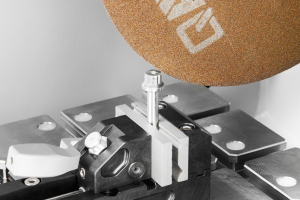

Intelligent component detection

• Proven automatic component detection and a new type of exit detection (auto-stop function)
• Start and end points of the cutting process are automatically detected and process times are shortened

Highest precision thanks to robust design

• Durable and low vibration thanks to stable construction

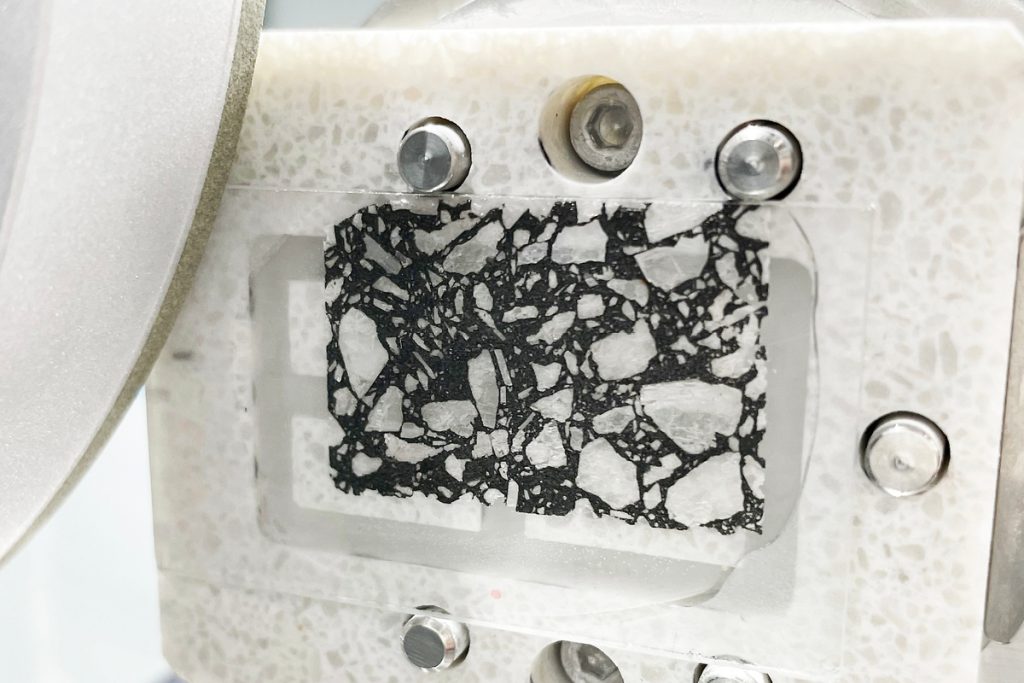

• Cutting or grinding (using a cup wheel) of delicate samples with maximum precision
• Excellent access to the cutting chamber thanks to large sliding door
• Quick and secure attachment of versatile clamping devices on the large machine table

Intuitive and simple operation

• Large 7″ industrial touchscreen with ergonomic user guidance
• Easy operation of the user-friendly software
• Comfortable movement of automatic axes using the Joystick

Flow monitoring

• Optional flow monitoring ensures constant cooling of sensitive samples even during long cutting processes
• The cutting process is automatically interrupted as soon as a critical threshold value is reached

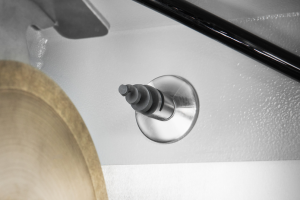

Automatic cleaning function

• Fully automatic machine cleaning thanks to spiral nozzles in the cutting chamber
• Cleaning can be switched on individually and starts automatically after each cut if required
• Clear view during the cutting process: cleaning can be activated during the running process

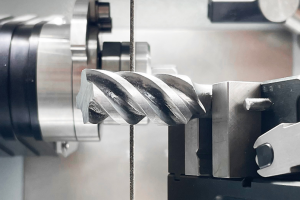

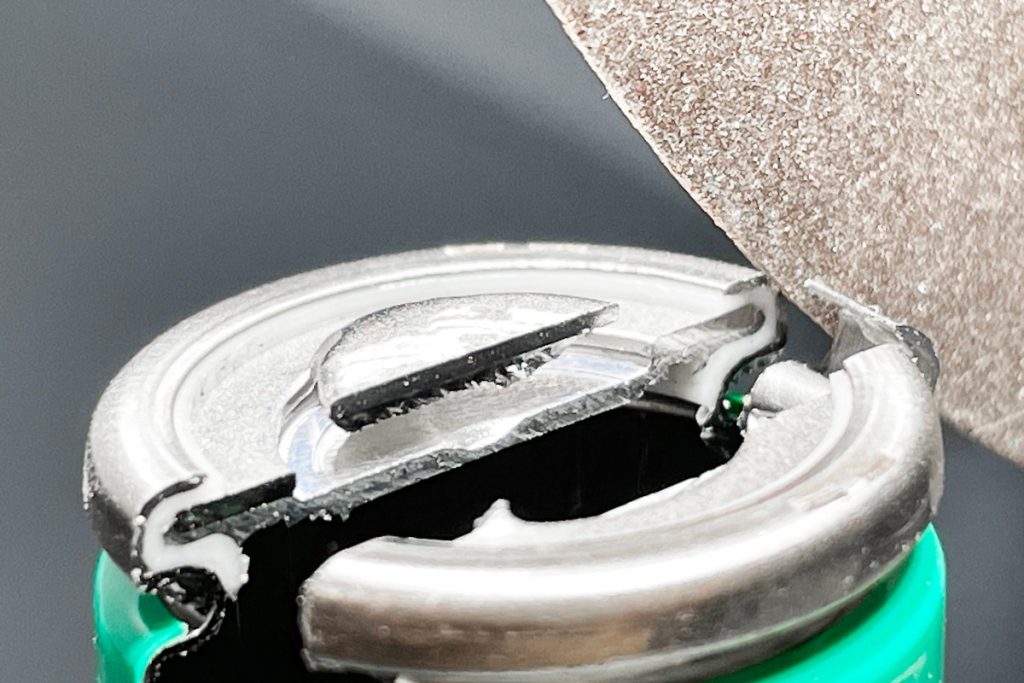

Extensive cutting programs

• Depending on the geometry of the component, the travel or chop cut is used to minimize the contact area to the cut-off wheel
• Cut the workpiece layer by layer and optimize the angle of action using the step cut functions – particularly suitable for solid material

1. Cutting chamber flushing

• Automatic cleaning of the cutting chamber

2. Large machine table

• Axes can be positioned backlash-free
• Easy grooves for simple mounting of QATM clamping devices
• T-slots 8 mm for individual clamping devices
• Max. W x H: 300 mm x 210 mm

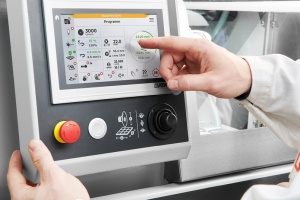

3. Ergonomic control panel

• Large 7“ TFT touch display
• Joystick for manual operation

4. Laser alignment

• For exact component part positioning before cutting
• Included as standard

5. Accessories

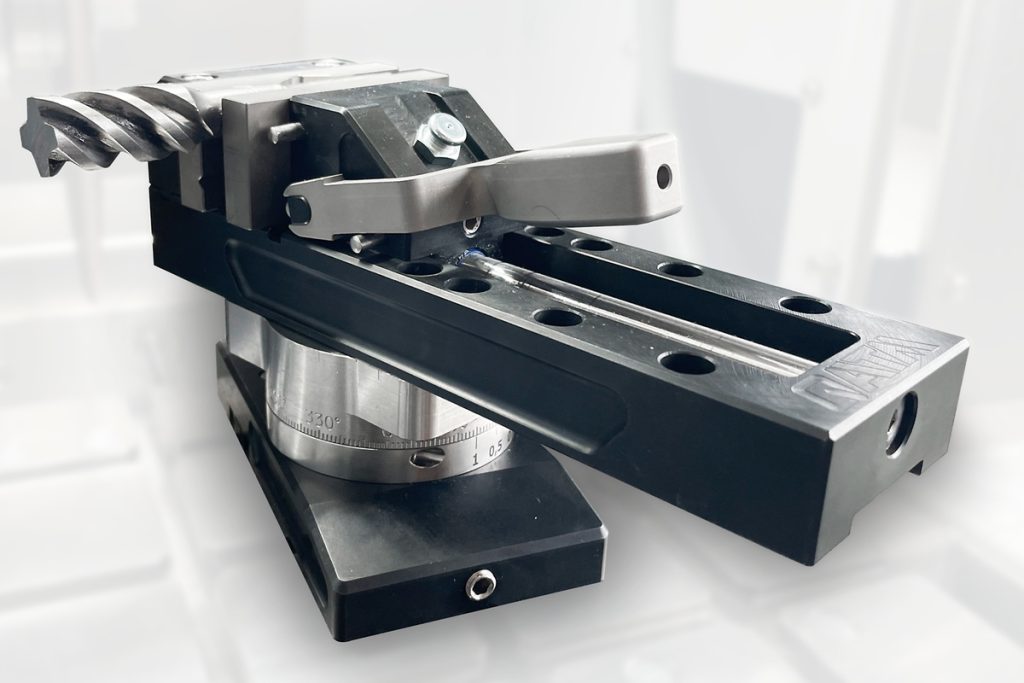

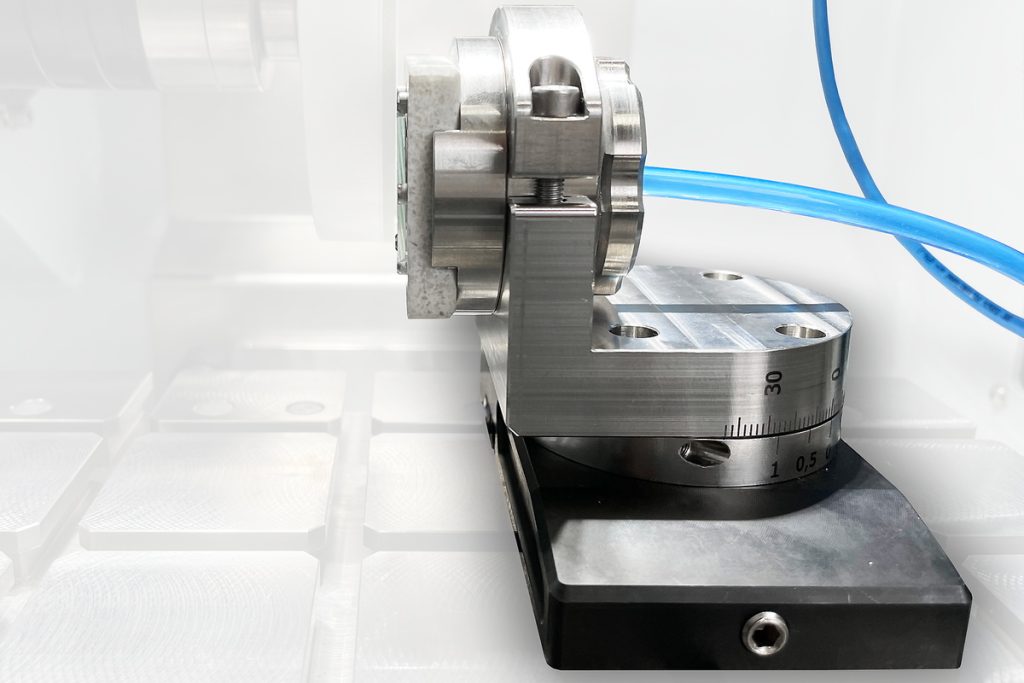

• Clamping possibility individually expandable with turning device or further clamping devices

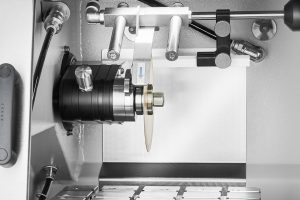

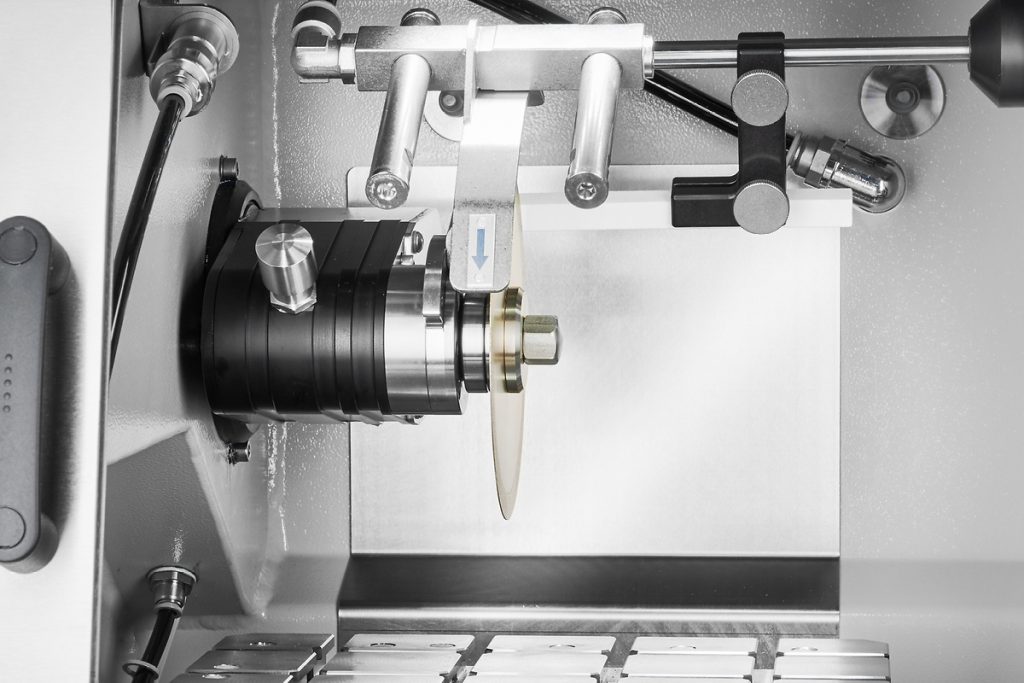

6. Cut-off wheel lock

• Simplified cut-off wheel change via locking function
• With integrated lubrication option

7. Dressing device

• For sharpening diamond cutting and grinding wheels
• Can be operated manually from the outside

8. Centrifugal separator

• Effective removal of coolant mist from the sectioning process
