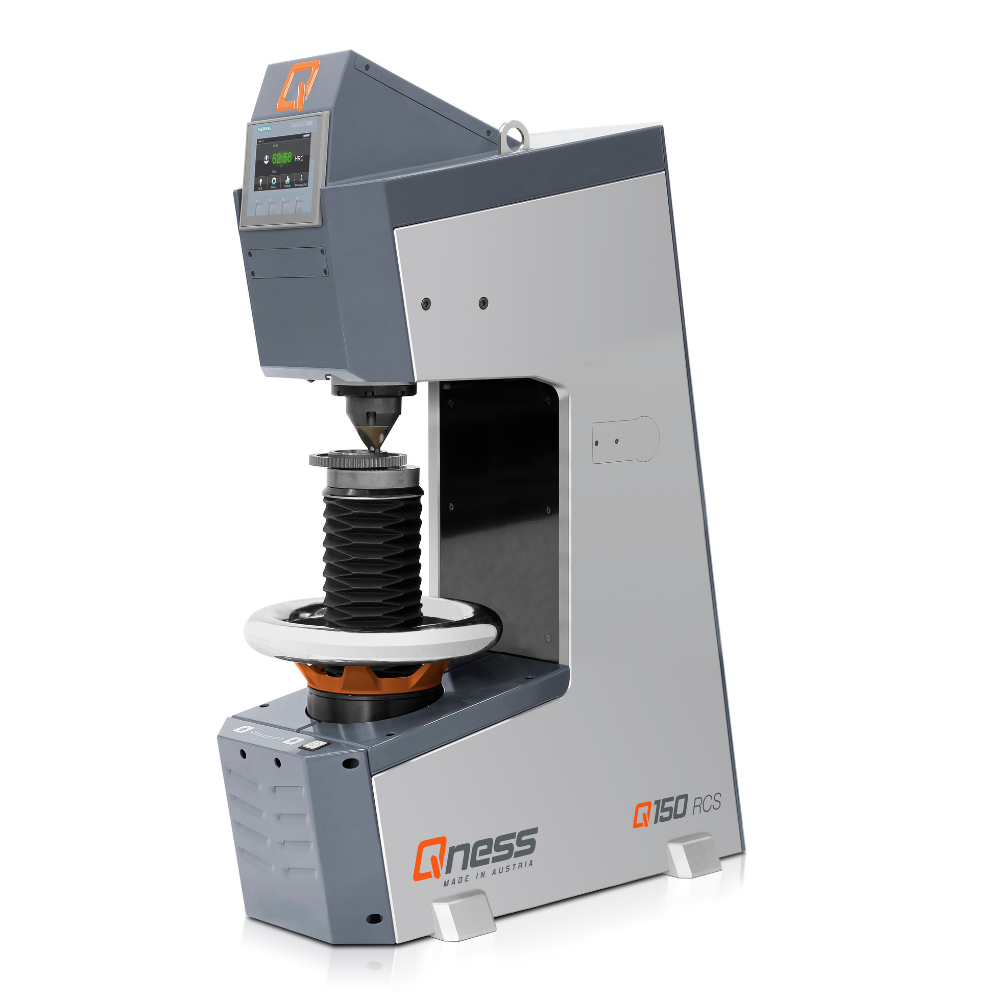

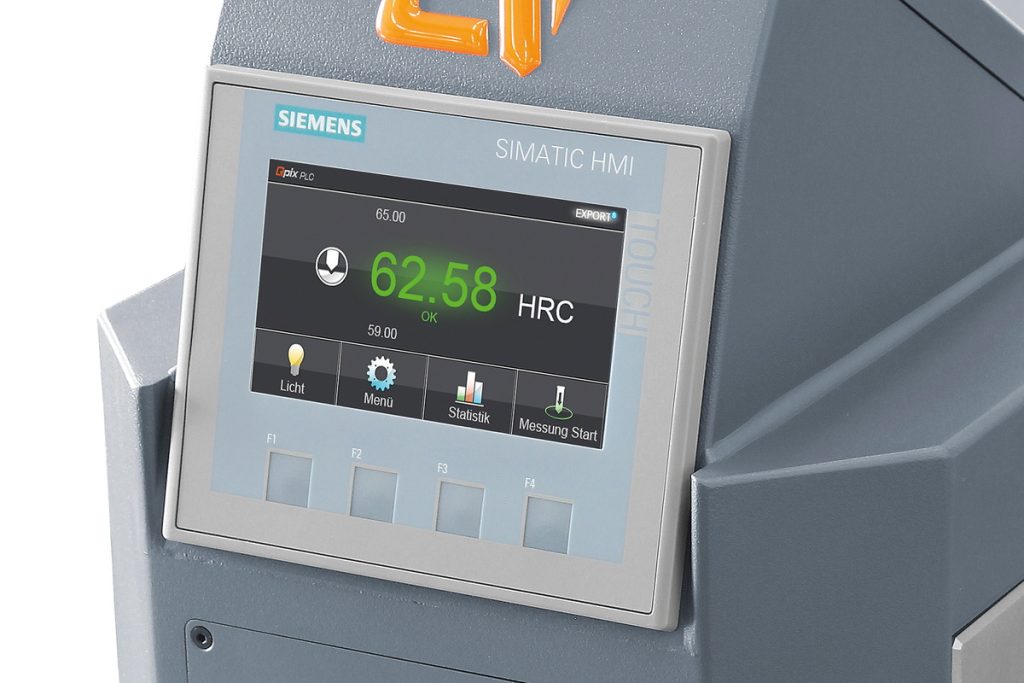

The Qness 60/150 RCS is a high-speed Rockwell hardness tester designed for rapid and reliable hardness testing in production environments. Featuring an advanced Siemens S7 control system, a 4-inch touchscreen, and a test cycle of under 2 seconds, it ensures maximum efficiency and repeatability. The system supports HRC or HBT testing, offers RS232 data output, and can be integrated into automated production lines for seamless quality control.
| Test method | Qness 150 RCS: HRC Qness 60 RCS: HBT 2.5 |
| Test force area | Qness 150 RCS: 150 kg (1471.5 N) Qness 60 RCS: 62.5 kg (613.1 N) |
| Height adjustment | Handwheel |

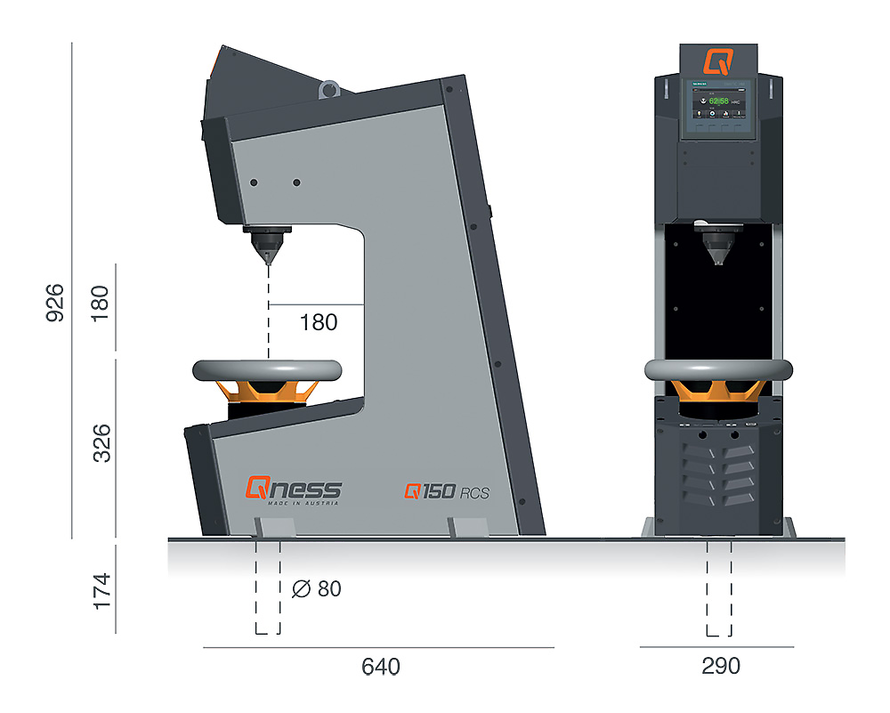

| Test height horizontal reach |
180 mm / 180 mm |
| Test anvil | ø 100 mm |
| Weight of basic device | 120 kg |
| Interfaces | 1 x RS232 C, 1 x RJ45 (Ethernet) |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power consumption | ~ 360 W |
| Accessories and Options | |
| General | Penetrator (Rockwell, Brinell) |
| Inline – solution | to be agreed |
| Options | Customised devices, customised test anvil, pro bus, sorting lamps, flashlight |
