QATM Qness Mobile Image Evaluation of existing Brinell indentations

For Portable Evaluation of Brinell Hardness Testing Indentations

Qmobile EVO is a mobile image evaluation unit for standard-compliant Brinell evaluation in accordance with DIN EN ISO 6506 and ASTM E-10. The user-friendly Qpix T2 software runs on an industrial tablet and enables testing directly in the field for fast data acquisition and quality control.

Ask a question

Description Features Technical Data

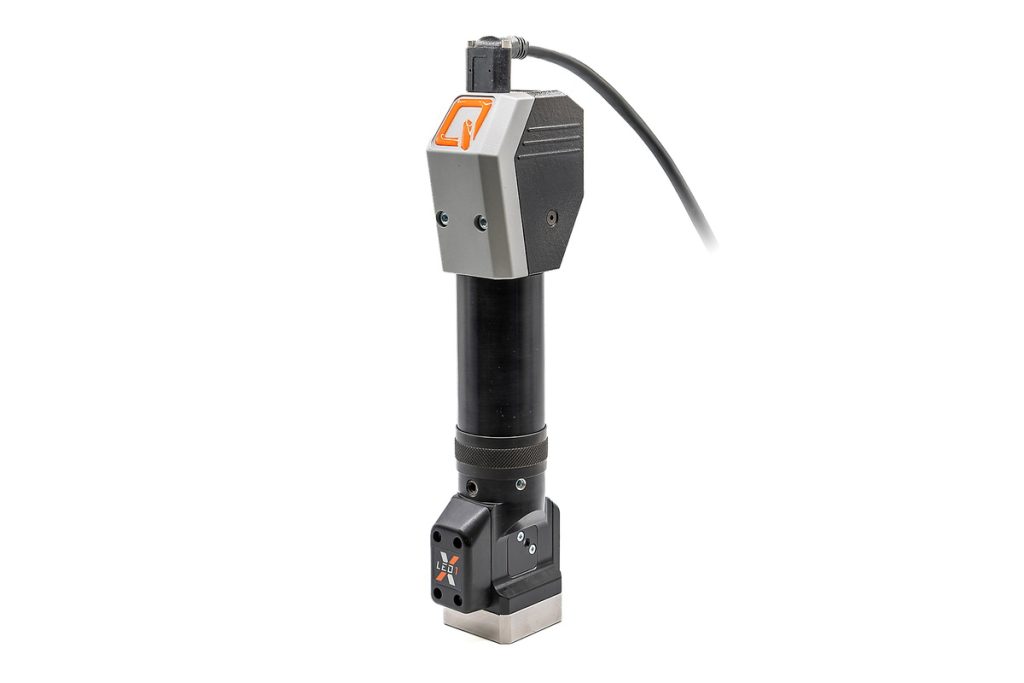

Mobile Image Evaluation Qmobile EVO

Product Advantages

Consignment includes case
State-of-the-art technology
QAI Image evaluation via built-in microscope and XLED Optic

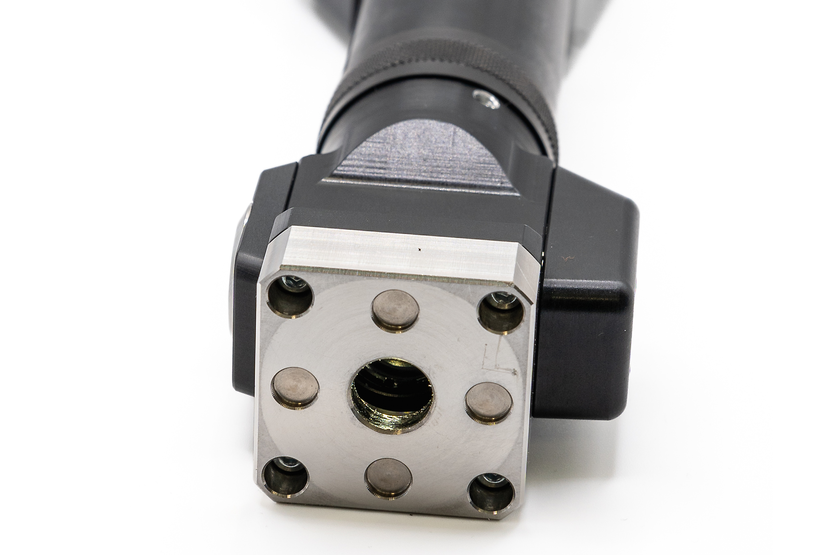

Replaceable head for customer-determined applications

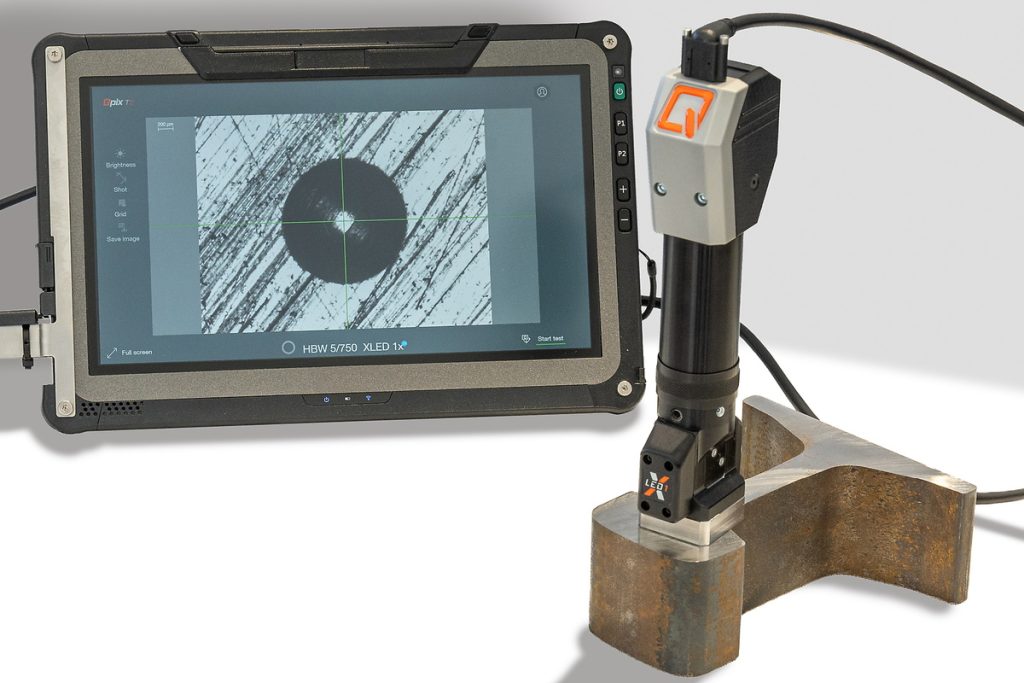

Innovative Qpix T2 Software
Industry compatible tablet PC
Data output via interfaces (USB 3.0)
Ergonomic system design

Evaluation with Brinell XLED technology

Replaceable support

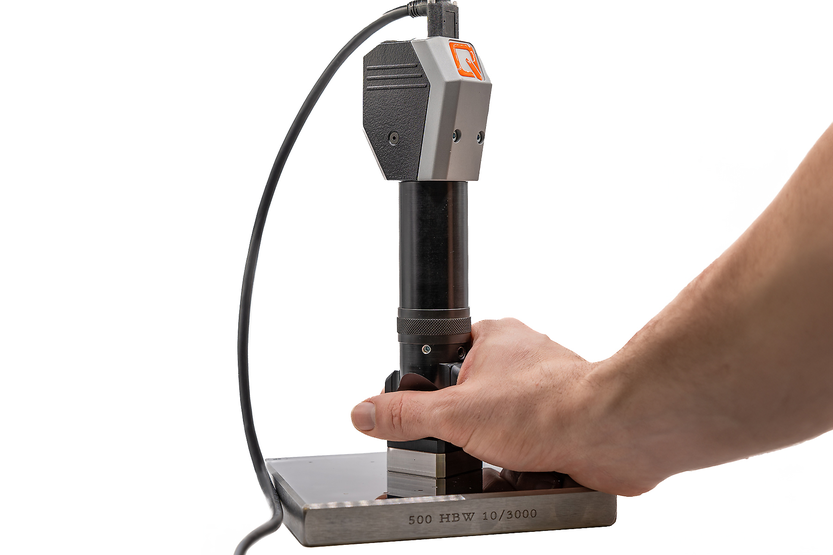

Indirect calibration using a hardness test block

Integrated conversion for measuring the Brinell hardness of shear pin hardness tests, hammer blow method (shear pin – hardness testing) Suitable for steel and cast iron, conversion to HB 30, HRC, kg/mm²

Hardness test evaluation	Brinell: HBW 10/3000, HBW 5/750, HBW 2.5/187.5
Field of view	7.9 x 5.9 mm
Camera	5 Megapixel
Interfaces	1 x USB 3.0
Weight of Qmobile EVO	0.7 kg
Tablet screen	11.6”
Options	Operation via external PC
