The Qcut 600 A represents the flagship of QATM’s cut-off machine series, delivering maximum cutting capacity for large and heavy workpieces. Its automatic travel and cross-feed functions enable precise, low-contact cutting while setting new standards in workspace efficiency, operational flexibility, and process automation.

Ask a question
Description Superiority in detail Technical Data

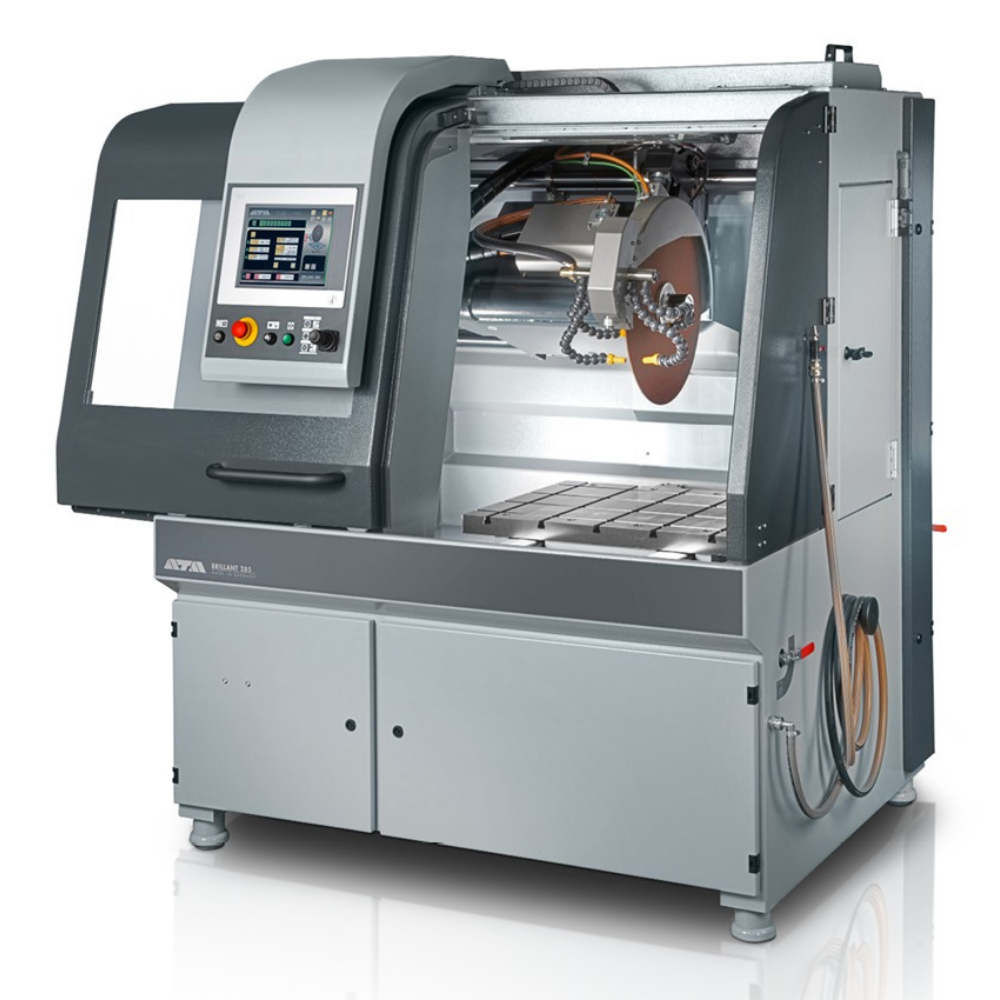

Floor-standing Cut-off machine QCUT 600 A

  • Maximum cutting capacity: Samples with a diameter of up to 244 mm can be easily cut
  • Industrial applications: Even the heaviest samples can be placed on the heavy-duty machine table using a forklift or crane
  • Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of different components on the machine table

Features

floor models new qcut 400a

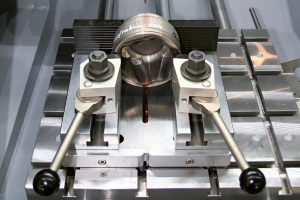

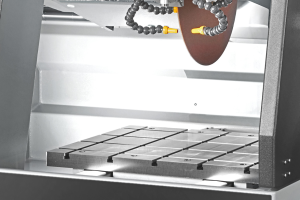

Stainless steel machine table

Spacious machine table enables precise work even under heavy loads.

  • Integrated T-slots for the Easy clamping system for quick mounting of clamping tools
  • Efficient and reliable fixation of complex geometries using clamping devices
  • Load capacity up to 400 kg (including clamping devices)
products cutting floor models new qcut400 a features

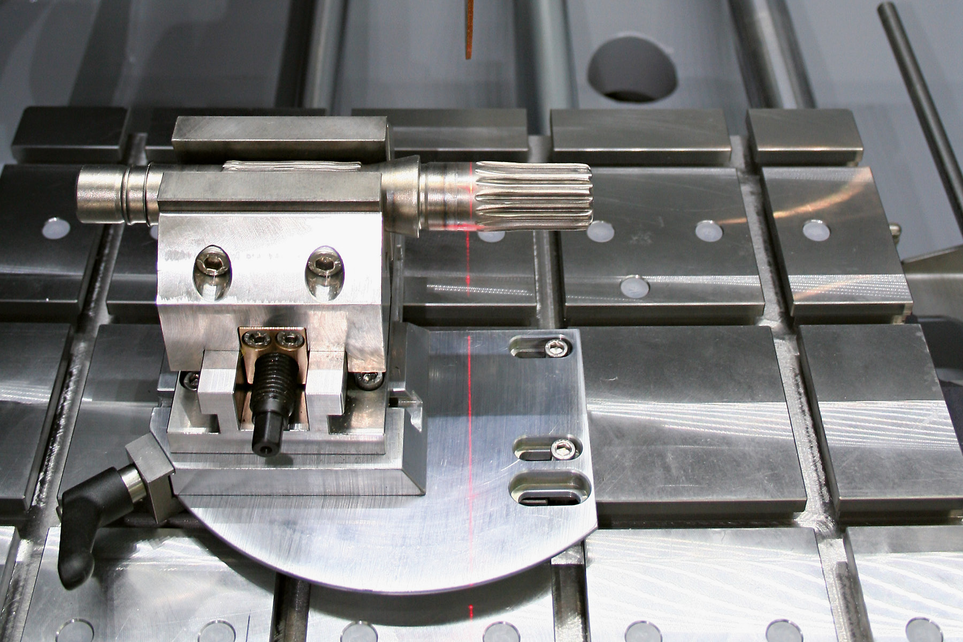

Laser alignment

Optional laser alignment projects the cutting line directly onto the workpiece, enabling precise positioning and exact cut placement.

  • Easy positioning of workpieces
  • Precise clamping without much effort

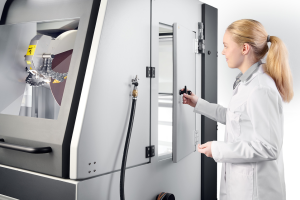

Robust machine with large cutting chamber

Robust machine with large cutting chamber

Robust, powder-coated steel machine body features a large sliding door with scratch-resistant laminated safety glass and convenient side access door.

  • Machine body with integrable recirculating cooling unit and automatic central lubrication
  • Large cutting chamber access with safety interlock — doors open only when cut-off wheel is stationary
Precision cross feed

Precision cross feed

The table-integrated Z-axis maintains consistent cutting height while the automatic cross feed with serial cutting function delivers precise parallel cuts.

  • Simple and intuitive serial cutting
  • The multi-position process (MPP) allows more complex serial cutting to be carried out

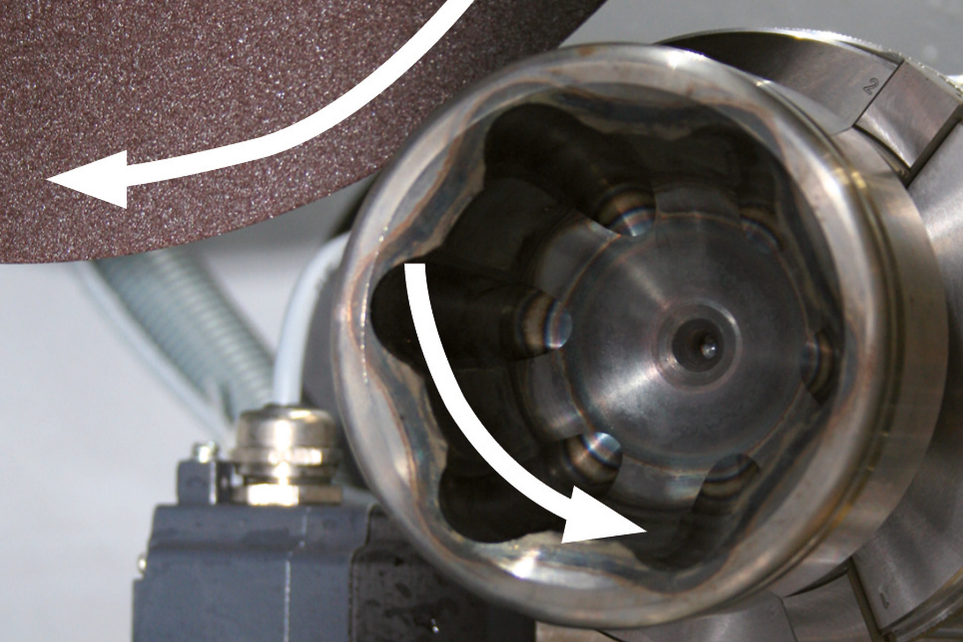

Rotation tool

Rotation tool

The optional rotation tool features a vertical rotary feed parallel to the wheel with software-controlled angle input.

  • More uniform cutting surfaces and cutting quality
  • Cutting time is halved for rotationally symmetrical parts
  • Protects against cut-off wheel run-out

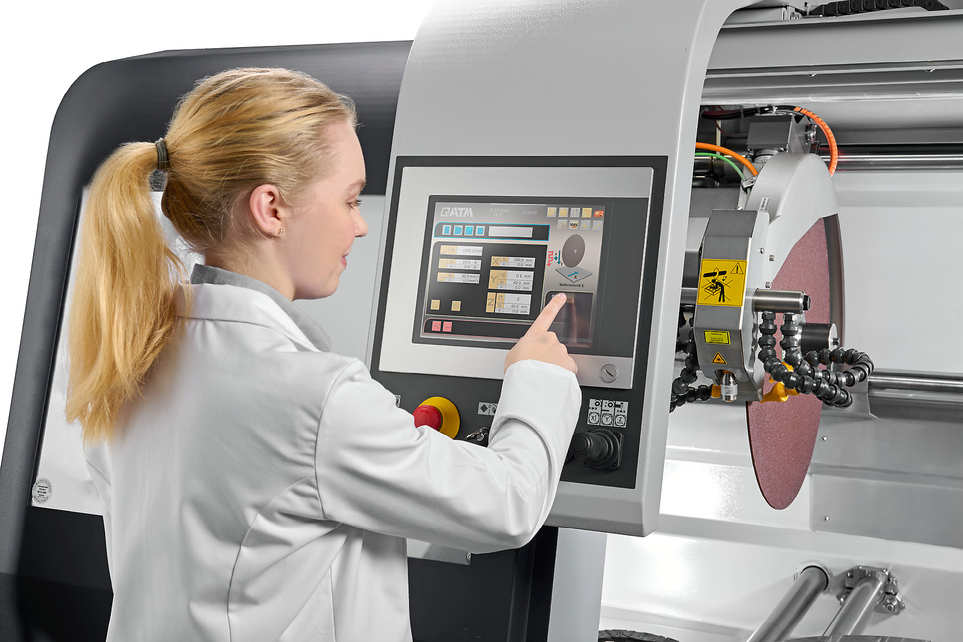

Intuitive and easy operation

Intuitive and easy operation

Large 12.1” industrial touchscreen with intuitive QATM user software and joystick.

  • Easily manage process parameters and create customer-specific maintenance tasks (200 user programs can be saved)
  • Parameters such as feed rate, travel distance, and cutting force can be changed during automatic operation

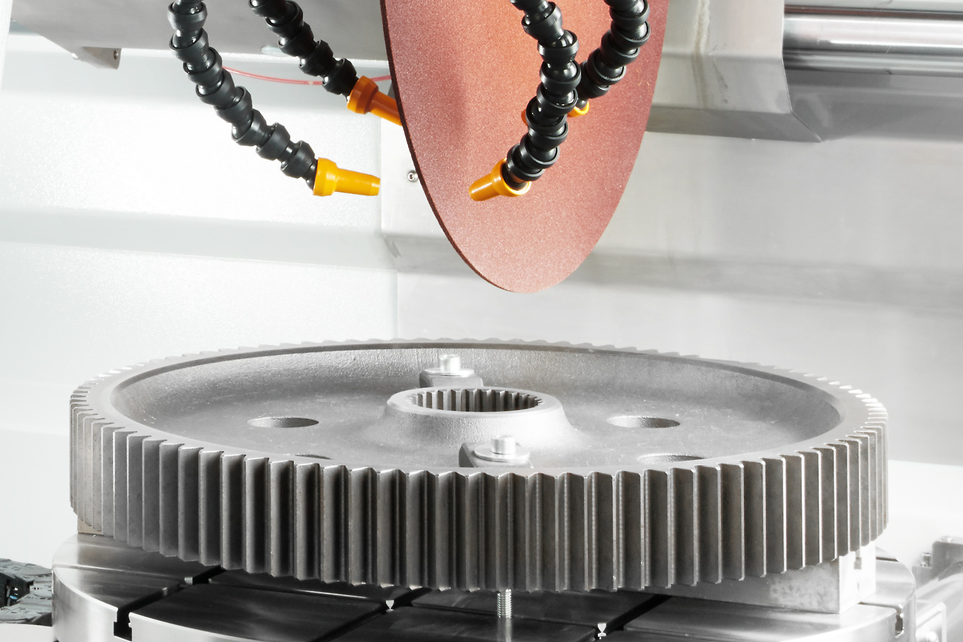

pulsed cutting

Pulsed cutting

For thick and difficult-to-cut materials, the adjustable automatic pulsed cutting provides gentle sectioning with optimal cooling of the cut interface.

  • Enhanced cutting results for larger components
  • Superior cooling of contact surfaces

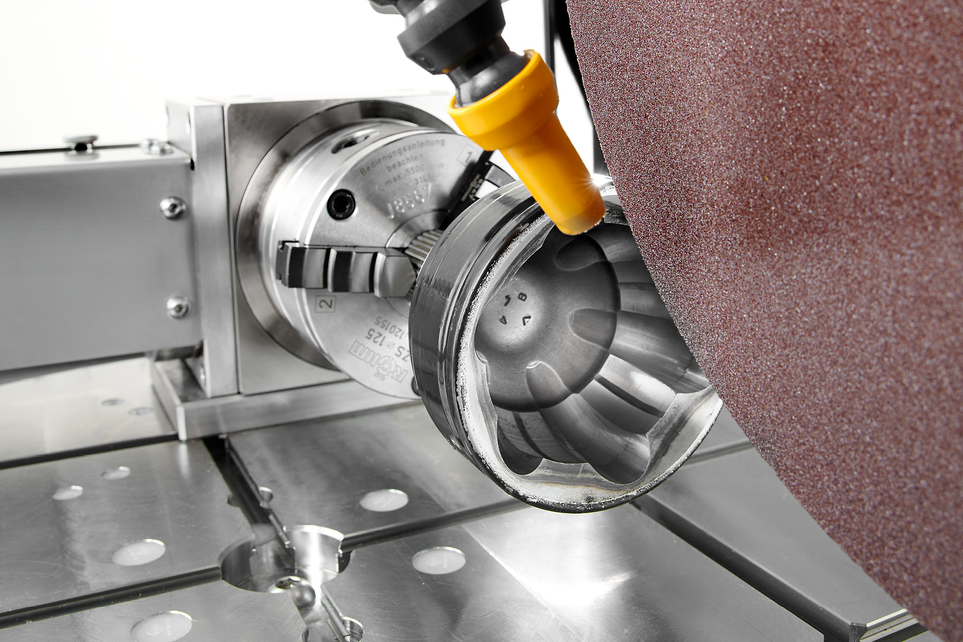

Cutting force dependent feed control (X- and Y-Axis)

Cutting force dependent feed control (X- and Y-Axis)

The feed rate automatically decreases when cutting force reaches a preset limit, protecting the machine, sample, and clamping tools from overloading.

  • Time savings thanks to variable feed rate

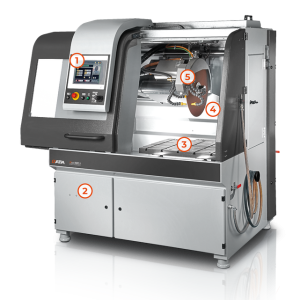

Qcut 600

1. Ergonomic control panel

  • Large 12.1″ industrial touchscreen with intuitive QATM software
  • Quick setup, control of all automatic axes with joystick
  • The sliding control panel enables unobstructed working conditions

2. Robust machine body

  • Sturdy powder-coated steel construction
  • Integrable recirculating cooling unit
  • Automatic central lubrication of the axes

3. Large machine table

  • Made of stainless steel with integrated longitudinal and cross T-slots
  • Secure clamping of complex workpiece shapes using the T-slot table or Easy clamping system
  • Dimensions 750 x 600 mm (W x D)
  • Load capacity: up to 400 kg
  • Travel: X: 550 mm, Y: 360 mm, Z: 550 mm

4. Large cutting chamber

  • Large sliding door provides easy access and visibility
  • Side swing door for convenient access to cutting chamber
  • Large side door for easy cut-off wheel replacement
  • Break-resistant LED interior lighting

5. Optimized swivel arm

  • Highly efficient cooling system
  • Increased cutting capacity thanks to parallel guided cut-off wheel guard
  • Laser alignment aid for easy workpiece positioning
  • Water-cooled main drive with 15 kW drive power

Qcut 600a

Cutting wheel up to ø 600 mm/24″
Max. cutting capacity ø 244 mm
Feed rate 0.001 – 50 mm/sec
Max. way of cutting wheel into sample 190 mm (cutting wheel ø 500 mm)
Wheel flange size ø 32/40 mm
X-axis automatic 550 mm
Y-axis automatic 360 mm
Z-axis automatic 550 mm
Precision Z-axis 0.1 mm
Table WxD 750 x 600 mm, stainless
T-slot 12 mm
Speed variable 1000-2400 rpm
Drive power (main drive) 15 kW S1
Connection power 30 kVA

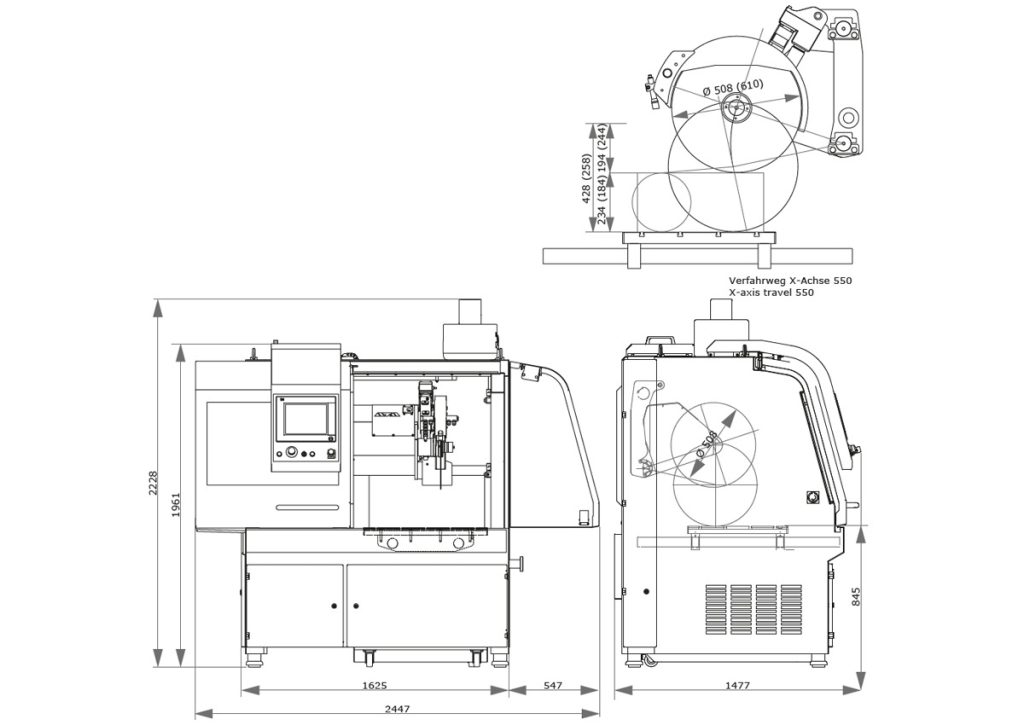

W x H x D 1488 x 1960 x 1477 mm
Weight ~ 1600 kg (depends on equipment)
