HomePRODUCT CATALOGStandartsQness (QATM) Consumables Hardness Testing
Qness (QATM) Consumables Hardness Testing(1)

Qness (QATM) Consumables Hardness Testing

Made in Germany

Our hardness test blocks are manufactured by selected steel and aluminium producers with excellent experience in the production of homogeneous material.





Ask Question
Categories: , , Product ID: 3521

Description



Qness (QATM) Consumables Hardness Testing

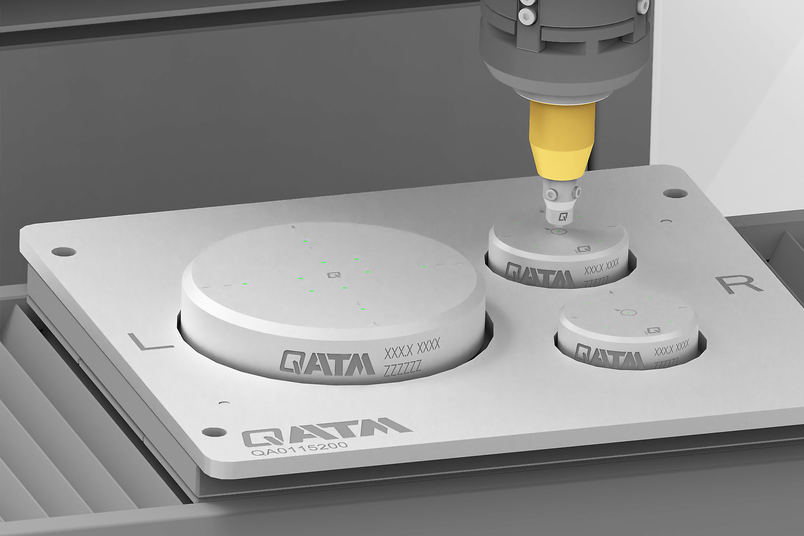

Large angular test surface

Large angular test surface

The shape enables periodic testing to be automated. This is a decisive benefit compared with circular hardness test blocks.





Value deviation engraved

Value deviation engraved

The permissible value deviation is engraved on each hardness test block. This saves time and money in everyday testing.







Dakks calibration

Dakks calibration

All hardness test blocks are calibrated in our accredited laboratory according to the latest ISO and ASTM standards.







Availability 14 days

Availability 14 days

Most of our hardness test blocks are available within 14 days.







Software

Software

You benefit from free access to our comprehensive range of software for the documentation of hardness tests.







Options

Options

On request, grid lines can be engraved and multiple calibrations can be provided.

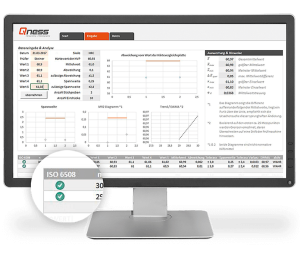

Software included For periodic standard-compliant tests

Software included

Purchasing a hardness test block entitles you to free access to a comprehensive range of software. The software provides support with the periodic standard-compliance testing on your hardness tester. Measurement accuracy is visualized at a glance to show whether the measuring accuracy of the test method in use is with the current standard. If original Qness hardness test blocks are in use, data can be called up online and the software is filled automatically. A comprehensive range of statistical functions has also been built in. All results from the test are clearly and logically documented, and can be presented whenever there is an audit.



Rockwell Hardness Test Blocks

Rockwell Hardness Test Blocks

DIN EN ISO 6508-3, ASTM E18
HRA 31 42 53 55 59 60 62 63 65 68 70 73 76 78 81 83 84 85
HRB 40 65 85 90 95 100
HRC 20 22 25 30 35 40 45 50 55 60 63 65 67
HRD 40 44 48 52 56 60 64 67 71 73 74 77
HRE 81 96
HRG 32 58 66 74 83
HRK 56 73 95 99
HR15N 69 72 75 78 81 83 85 88 90 91 92 93
HR30N 41 46 50 55 59 64 68 73 77 80 82 83
HR45N 19 25 31 37 43 49 55 61 66 70 72 74
HR15T 73 82 88 90 91 93
HR30T 43 60 73 76 80
HR45T 12 38 58 63 68

Vickers Hardness Test Blocks

Vickers Hardness Test Blocks

DIN EN ISO 6507-3, ASTM E92
HV 0,01
 200
HV 0,015 200 250
HV 0,02 200 250 300 350
HV 0,025 200 250 300 350 400 450
HV 0,05 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 0,1 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 0,2 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 0,3 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 0,5 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 1 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 2 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 1
 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 2 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 3 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 5 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 10 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 20 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 30 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 50 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HV 100 80 110 130 170 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900

Brinell Hardness Test Blocks

Brinell Hardness Test Blocks

DIN EN ISO 6506-3, ASTM E10
HBW 10 / 500
 80
HBW 10 / 1000 80 110 130 170 200
HBW 10 / 1500 80 110 130 170 200 250 300
HBW 10 / 3000 110 130 170 200 250 300 350 400 450 500 550 600 650
HBW 5 / 125 80
HBW 5 / 250 80 110 130 170 200
HBW 5 / 750 110 130 170 200 250 300 350 400 450 500 550 600 650
HBW 2,5 / 31,25 80
HBW 2,5 / 62,5 80 110 130 170 200
HBW 2,5 / 187,5 110 130 170 200 250 300 350 400 450 500 550 600 650
HBW 1 / 5 80
HBW 1 / 10 80 110 130 170 200
HBW 1 / 30 110 130 170 200 250 300 350 400 450 500 550 600 650

Knoop Hardness Test Blocks

Knoop Hardness Test Blocks

DIN EN ISO 4545-3, ASTM E92
HK 0,01
 200 250 300 350
HK 0,015 200 250 300 350 400 450 500
HK 0,02 200 250 300 350 400 450 500 550 600 650 700
HK 0,025 200 250 300 350 400 450 500 550 600 650 700 750 800 850
HK 0,05 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HK 0,1 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HK 0,2 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HK 0,3 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HK 0,5 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HK 1 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
HK 2 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
