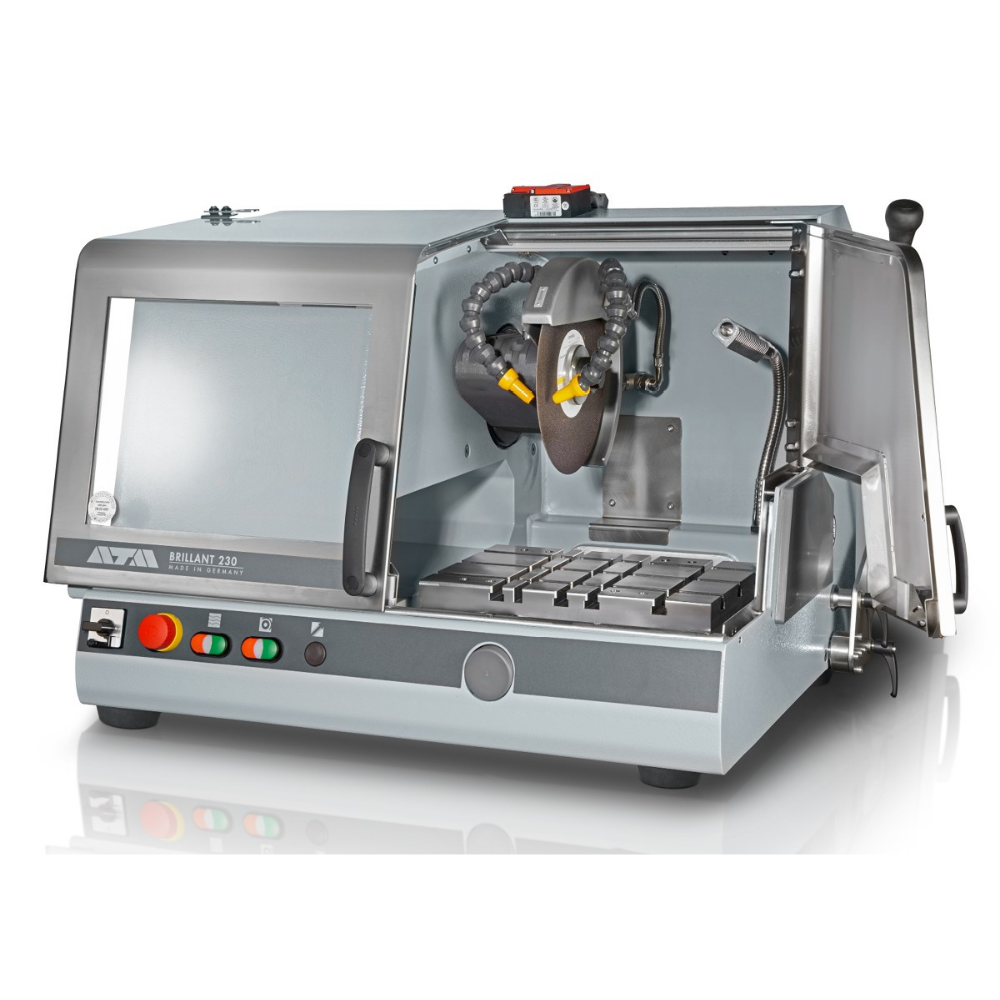

The BRILLANT 230 is a wet abrasive cut-off machine with fine dynamic, manual wheel movement into samples up to Ø 110 mm. The spacious cutting chamber allows various clamping variations. The solid aluminium design of the cutting machine comes with openings on the right and left hand side for cutting continuous long parts.
With the manual cutting movement, the cutting force is regulated through a set of gears. The cut is thereby yerk-free and more precise. The easy-to-use lever brake fixes the cutting disc in any position.

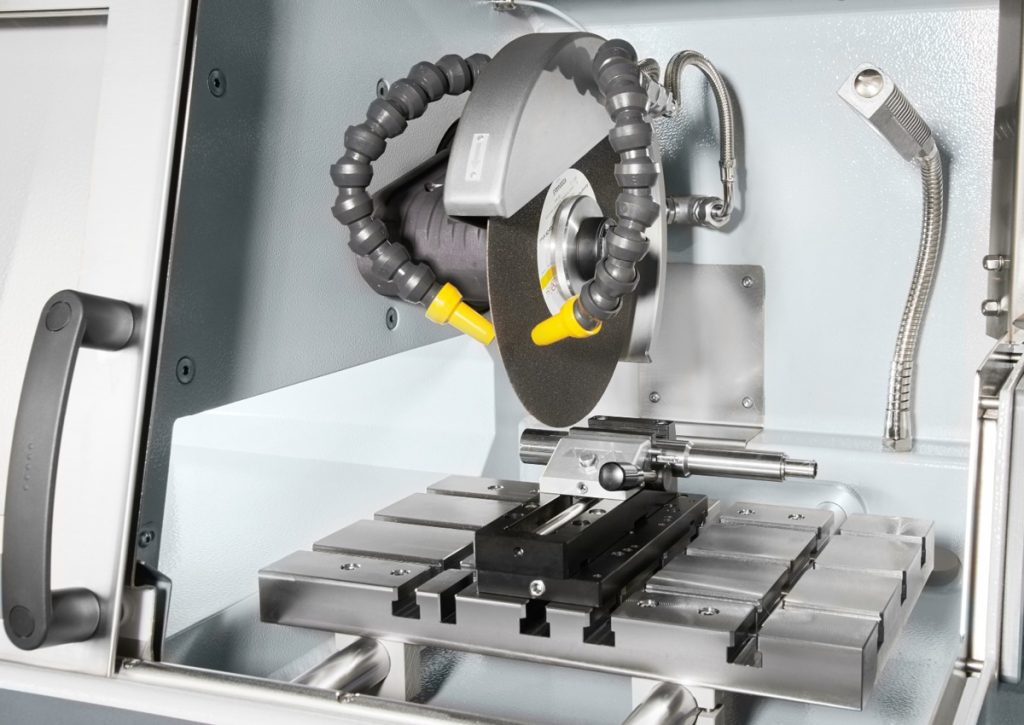

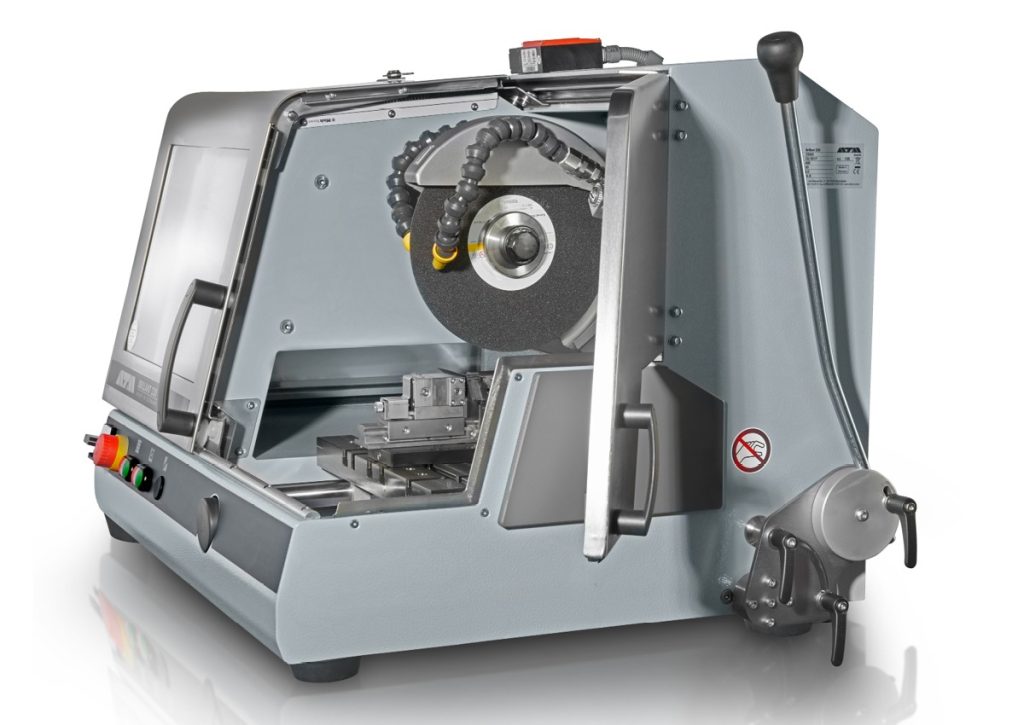

The sliding front door and the side door with safety interlock allow easy and optimal access to the cutter chamber. Further, the LED cutting chamber illumination is energy-saving. The arbour is protected against wearing by an interchangeable ring.
The manual horizontal movement allows cutting long parts longitudinally and easy positioning of the sample below the cut-off wheel.
The manual Z-axis can be adjusted with 0.1 mm precision for parallel cuts.
| Cutting wheel | up to ø 300 mm/12″ |
| Max. cutting capacity | ø 110 mm |
| Wheel flange size | ø 32 mm |
| Y-axis (vertical movement) | 125 mm |
| Table WxD | 380 x 250 mm, stainless |
| T-slot | 12 mm |
| Connection power | 6 kVA |
| Drive power (main drive) | 4 kW S1 |
| Speed | 2750 rpm |

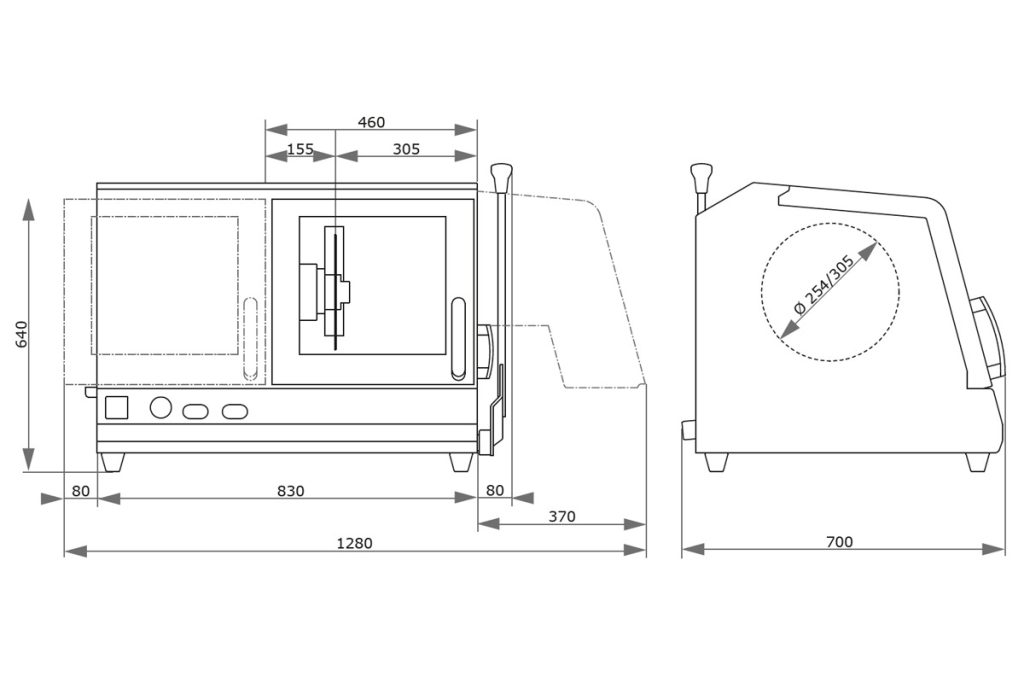

| W x H x D | 830 x 640 x 670 mm |
| Weight | ca. 130 kg |
