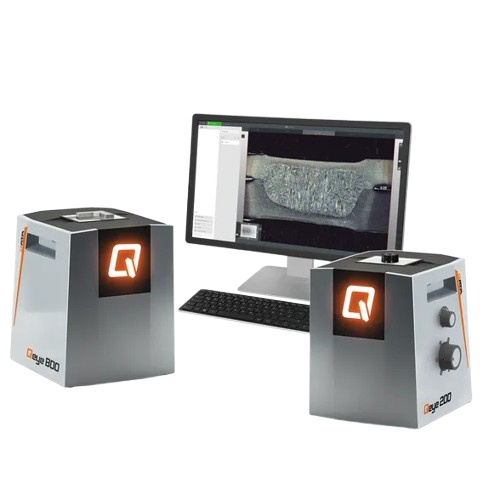

The Qeye 200 and Qeye 800 optical analysis systems by QATM set new benchmarks in visual quality control. As inverse macroscopes, they enable high-resolution image capture and precise measurement of weld seams, solder joints and components – directly on the macro-section.
The Qeye 200 specialises in the analysis of demanding laser welds – ideal for the automotive industry, electronics, and research and development in joining technology. The Qeye 800 excels in series production and materials testing, for example in steel construction and plant engineering, where weld shape, penetration depth and potential defects need to be assessed reliably.
Both systems deliver reproducible results in accordance with international standards such as DIN EN ISO 5817, supported by Intelligent Area Illumination and the powerful Qpix Control2 software – for laboratories that make no compromises on quality or throughput.

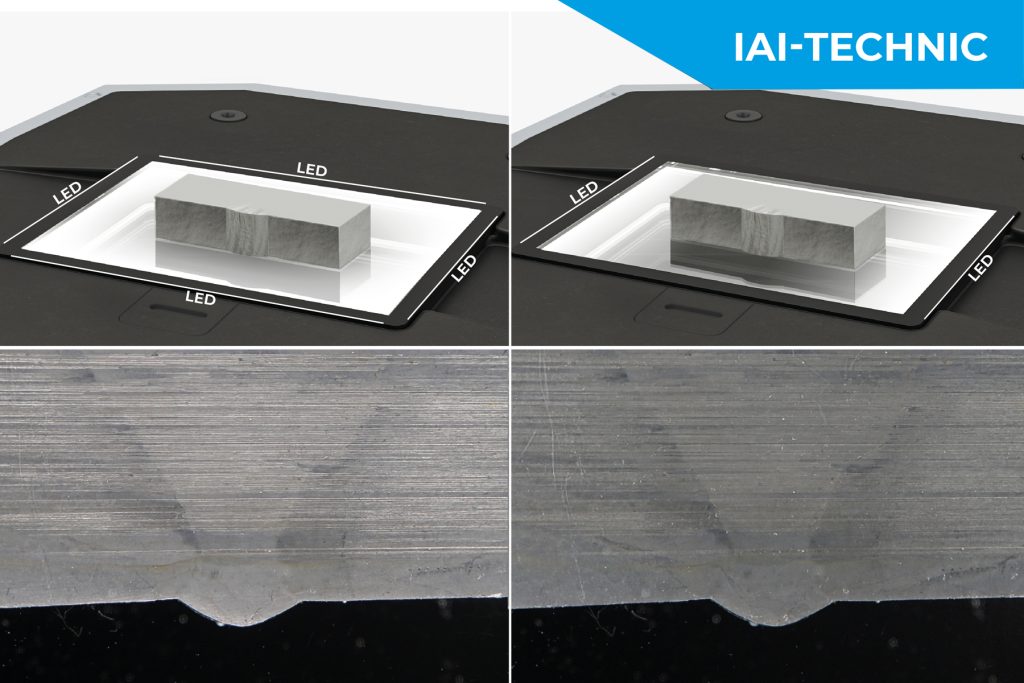

IAI = Intelligent Area Illumination. The Qeye system features innovative LED analysis area illumination. Each of the 4 illumination profiles (right, left, front, rear) can be switched on or off smoothly and individually. This now enables faster and more precise testing, without the disturbance of light influences or grinding reflections.

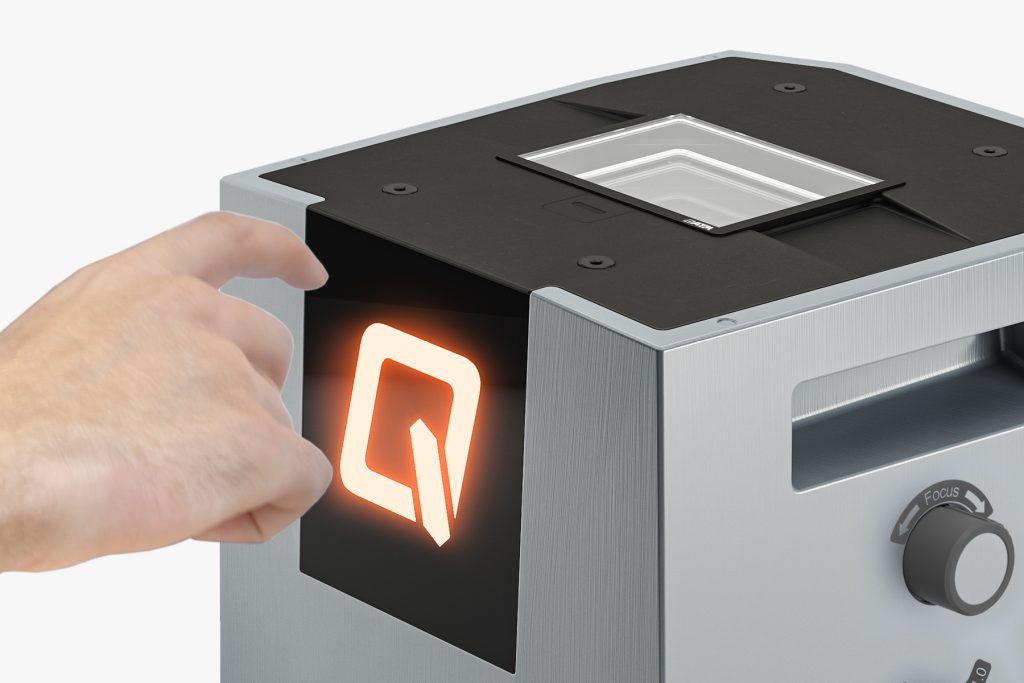

Qeye offers impressive ease of use via freely programmable capacitive buttons. Once centered, the Q lights up to indicate the current status, and used to trigger imaging. The buttons located in the corners can be configured to control LED illumination, zoom, field of view and brightness. The soft-touch control panel is responsive, even when used with gloves.

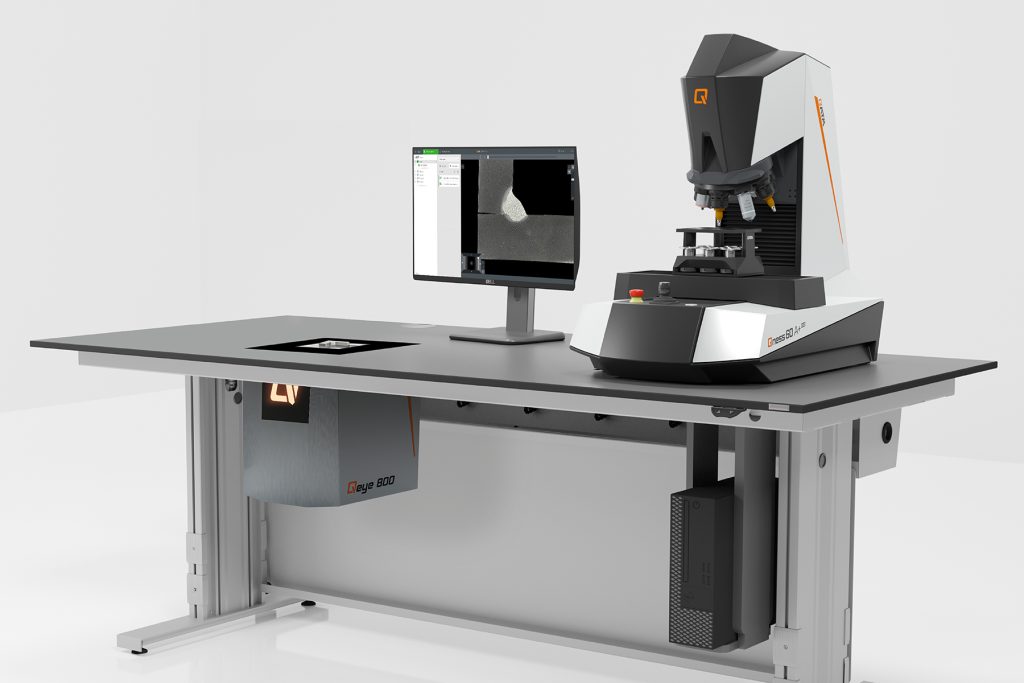

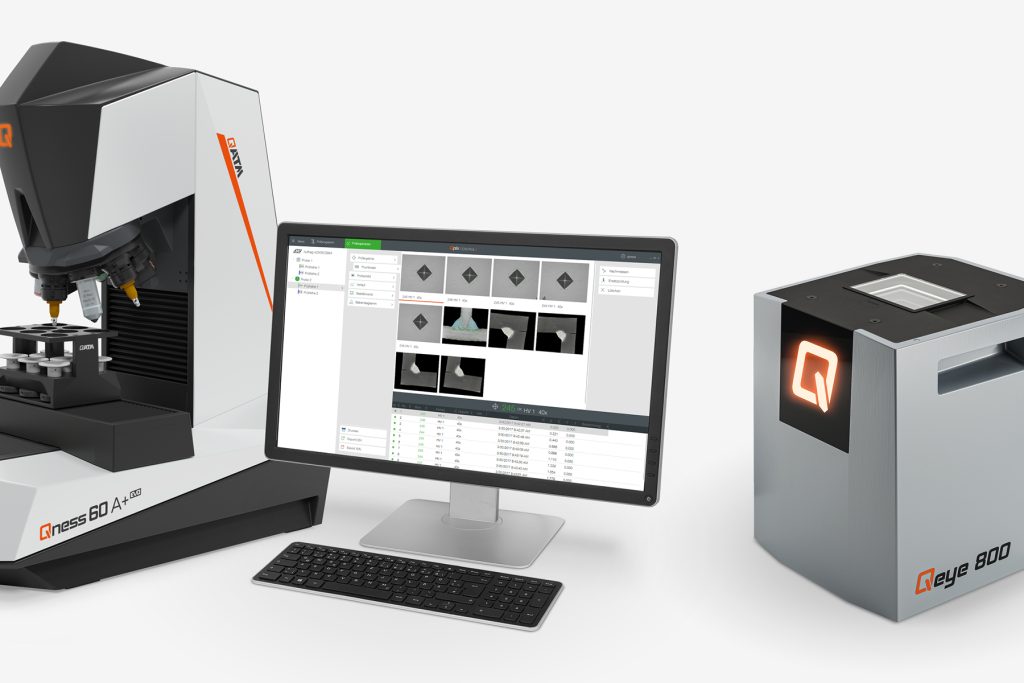

Operated by tried and trusted Qpix Control2 software. Combination of hardness testing and optical analysis in a familiar user interface using just one PC. Efficient measurement and inspection of weld specimens in seconds, live image, 3D Smartview and a uniform reporting system for hardness testing and macro analysis.

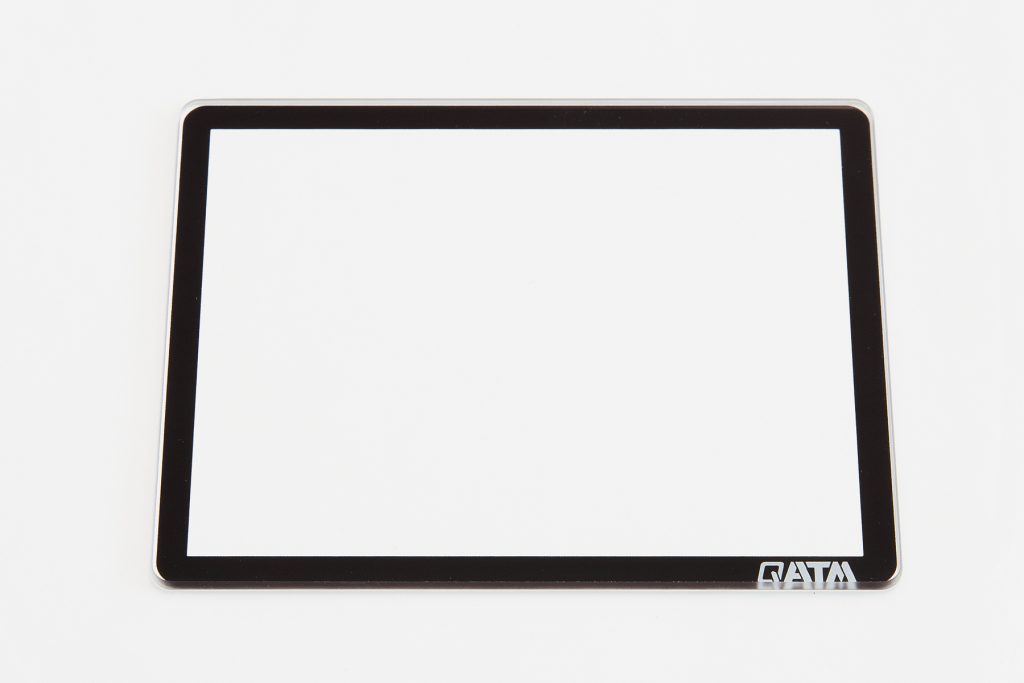

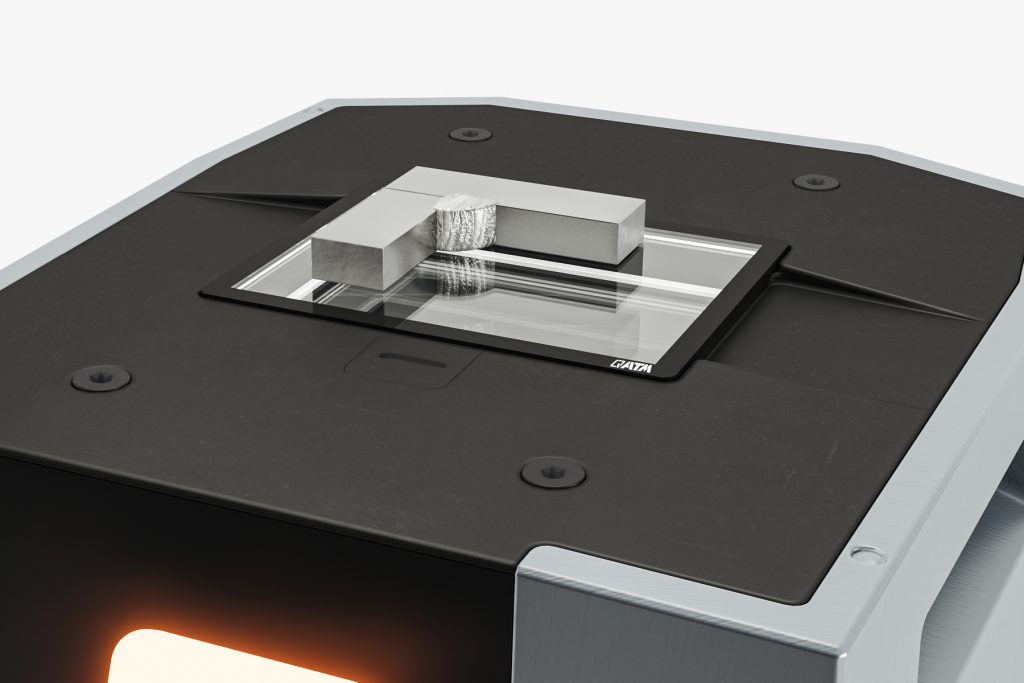

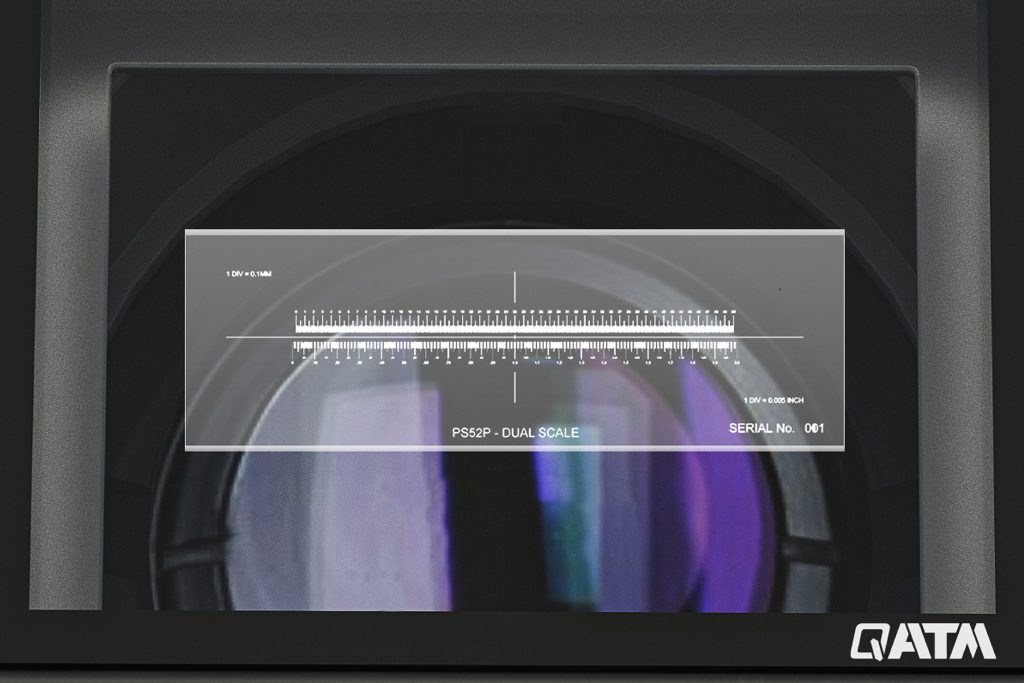

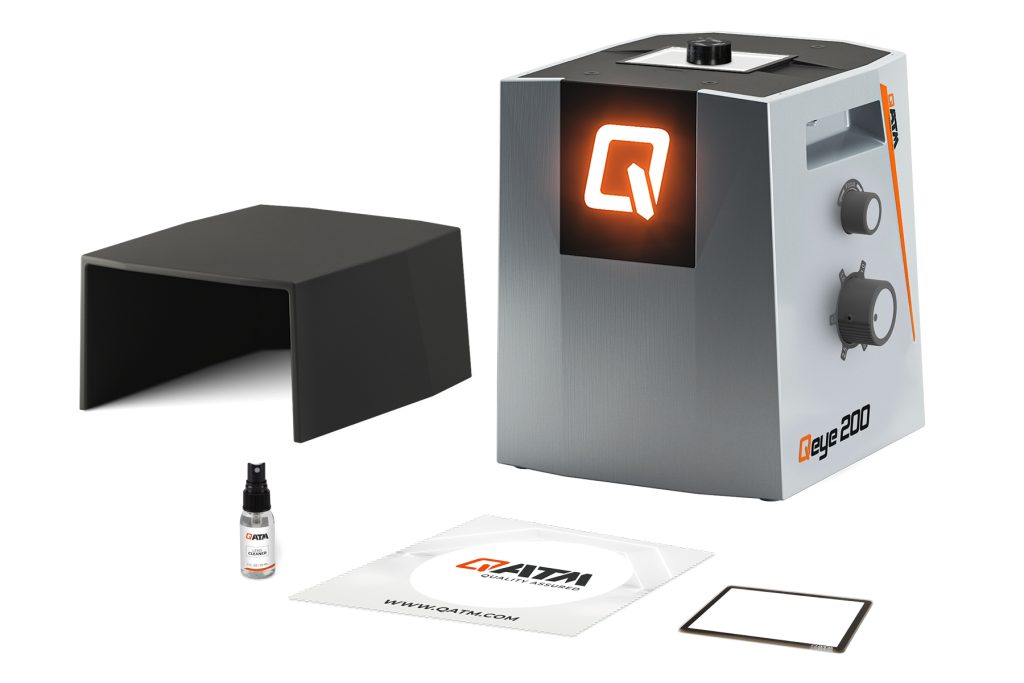

Qeye saves time, providing detailed analysis and measurement with supreme accuracy. Robust modern industrial design. Easy replacement of the glass sample carrier. Absolutely dust-tight due to assembly in a clean room.
| Specification | Qeye 200 | Qeye 800 |
|---|---|---|
| Field of view | 23.7 x 17.8 mm – 3.7 x 2.8 mm (0.933 x 0.7“ – 0.146 x 0.11“) | 80 x 60 mm – 2.3 x 1.7 mm (3.1 x 2.4″ – 0.091 x 0.067″) |
| Zoom levels | 0.63x – 1x – 1.6x – 2.5x – 4x | 1x – 1.5x – 2x – 2.5x – 4x – 5x |
| Camera | 4K Ultra HD – 12 Megapixel – USB 3.0 | 4K Ultra HD – 8.5 megapixel – USB 3.0 |
| Illumination | IAI – LED unit (Intelligent Area Illumination) | IAI – LED unit (Intelligent Area Illumination) |
| Software | Qpix Control2 | Qpix Control2 |
| Machine operation | external PC system (Windows 11 64-bit) | external PC system (Windows 11 64-bit) |
| Dimensions glass sample carrier (L x W x H) | 95 x 75 x 2 mm (3.7 x 3.0 x 0.08“) | 95 x 75 x 2 mm (3.7 x 3.0 x 0.08“) |
| Max. sample weight | 5 kg (11 lbs) | 5 kg (11 lbs) |
| Interface | 1 x USB 3.0 | 1 x USB 3.0 |
| Power connection | 100 – 240 V ~1/N/PE, 50 – 60 Hz | 100 – 240 V ~1/N/PE, 50 – 60 Hz |
| Power Consumption | Idle: ~35 W | Operation: ~60 W | Max. ~100 W | Idle: ~35 W | Operation: ~60 W | Max. ~100 W |

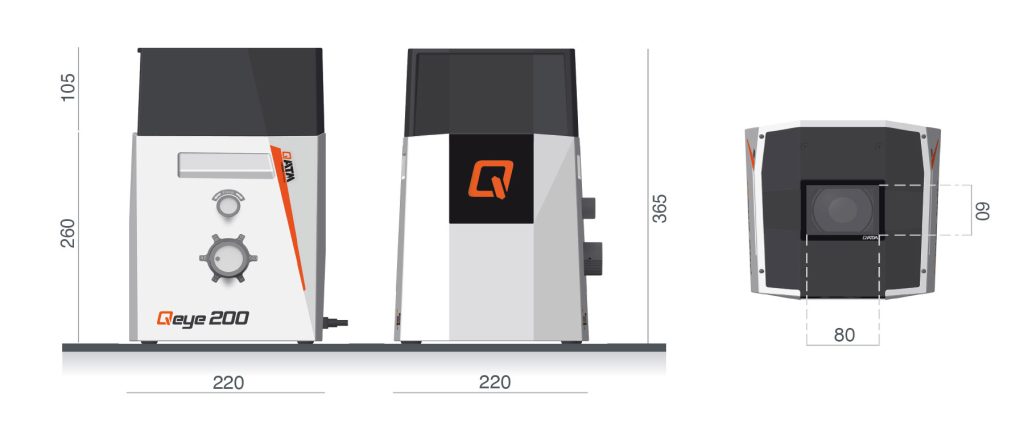

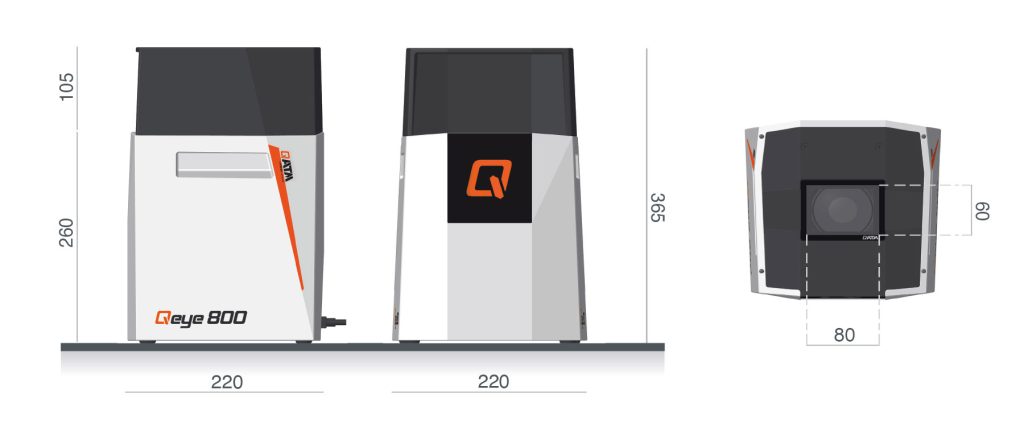

| Dimensions | 220 x 220 x 260/365* mm (8.7 x 8.7 x 10.2/14.3“) | 220 x 220 x 260/365* mm (8.7 x 8.7 x 10.2/14.3“) |
| Space requirement | 300 x 300 mm (11.8 x 11.8“) | 300 x 300 mm (11.8 x 11.8“) |
| Weight | 16 kg (35.3 lbs) | 16 kg (35.3 lbs) |
| Ambient temperature | 18 – 28 °C (64 – 82 °F) | 18 – 28 °C (64 – 82 °F) |
| Humidity maximum | maximum 70 % – non-condensing | maximum 70 % – non-condensing |
