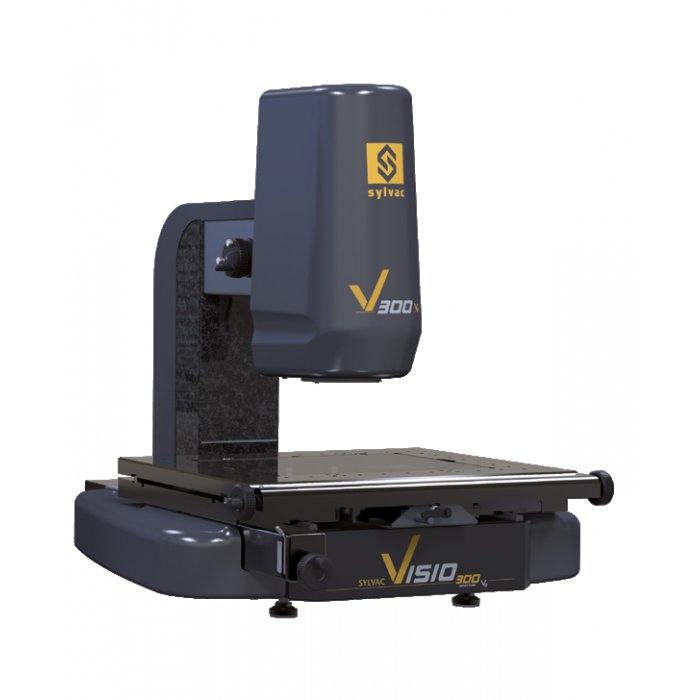

OPTICAL MEASUREMENT SYLVAC-VISIO 300 V3

Optical video measuring system.

INDUSTRIES

  • Automotive
  • Aeronautics
  • Fastening
  • Packing
  • Machine tool
  • Watch making
  • Electronics

APPLICATIONS

  • Diameter
  • Form deviation
  • Distance
  • Angle
  • Position tolerance
Ask Question

Description

FEATURES

  • Enhanced Precision and Versatility: Experience an extended field of view up to 15×9.5mmb and improved image quality through our full HD camera. Our machine offers high-resolution measurements with an ergonomic 2.5D optical (video) measuring system, ensuring accuracy and reliability.
  • Robust Construction for Durability: Our metrology solution features a very robust granite construction and a durable guidance system, guaranteeing long-lasting performance. The granite base and gooseneck provide exceptional stability, while the manual movement of the table with a quick displacement system enables easy and precise adjustments.
  • Flexible Zoom Options: Choose between manual or motorized zoom functionality depending on model,. We offer both options to cater to different needs, ensuring seamless operations and optimal performance in your metrology processes.
  • Optimal Visibility: Benefit from triple programmable lighting options, including ring light adjustable in segments, coaxial light, and diascopic light. This comprehensive lighting setup allows you to achieve optimal visibility, enhancing the accuracy of your measurements.
  • Advanced Software with CAD Comparison: Our metrology system comes with Sylvac Vista software, which offers a wide range of functionalities for intuitive measurements. Enjoy features like semi-automatic measurement, automatic edge detection, and comparison with imported DXF contour. This software also includes CAD comparison functions, streamlining your workflow.
  • Versatile Measurement Ranges: Choose from our three versions to match your measurement needs precisely. The VISIO 200 models (902-2210 and 902-2211) provide a measuring range of 200 x 100 x 150 mm, while the VISIO 300 model (902-2212) offers a larger range of 300 x 200 x 150 mm. With these options, you can select the model that best suits your application.
