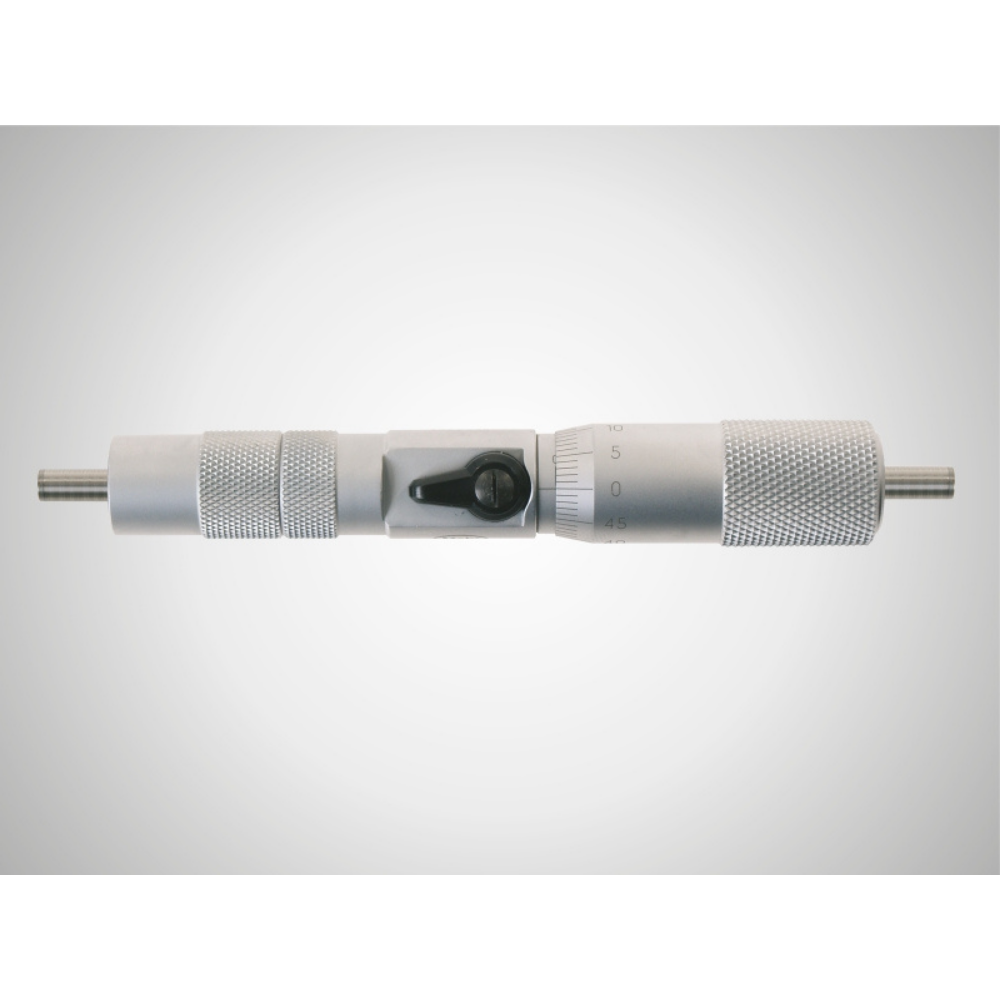

MAHR Micromar 44 CB Inside micrometer with reduced measuring faces

  • Operating and display units with satin chrome finish
  • Rigid, lightweight tubular construction
  • Stainless spindle is hardened throughout and ground
  • Locking device
  • Carbide tipped spherical measuring faces
  • Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range
  • Protection sleeves have a satin chrome finish
  • measuring head 44 CB with end piece
  • case
Ask Question

Description

Micromar 44 CB Inside micrometer with reduced measuring faces



Technical data

Order no. Measuring range mm Graduation value mm Error limit µm Spindle thread pitch_mm Error limit
4167906
175 – 200
0,01
7 µm
0.5 mm
4+(l/100)µm l= length of the combination in mm
4167912
250 – 275
0,01
9 µm
0.5 mm
4+(l/100)µm l= length of the combination in mm
4167921
275 – 300
0,01
9 µm
0.5 mm
4+(l/100)µm l= length of the combination in mm
4167922
150 – 175
0,01
7 µm
0.5 mm
4+(l/100)µm l= length of the combination in mm

Applications

For measuring grooves on large diameters
