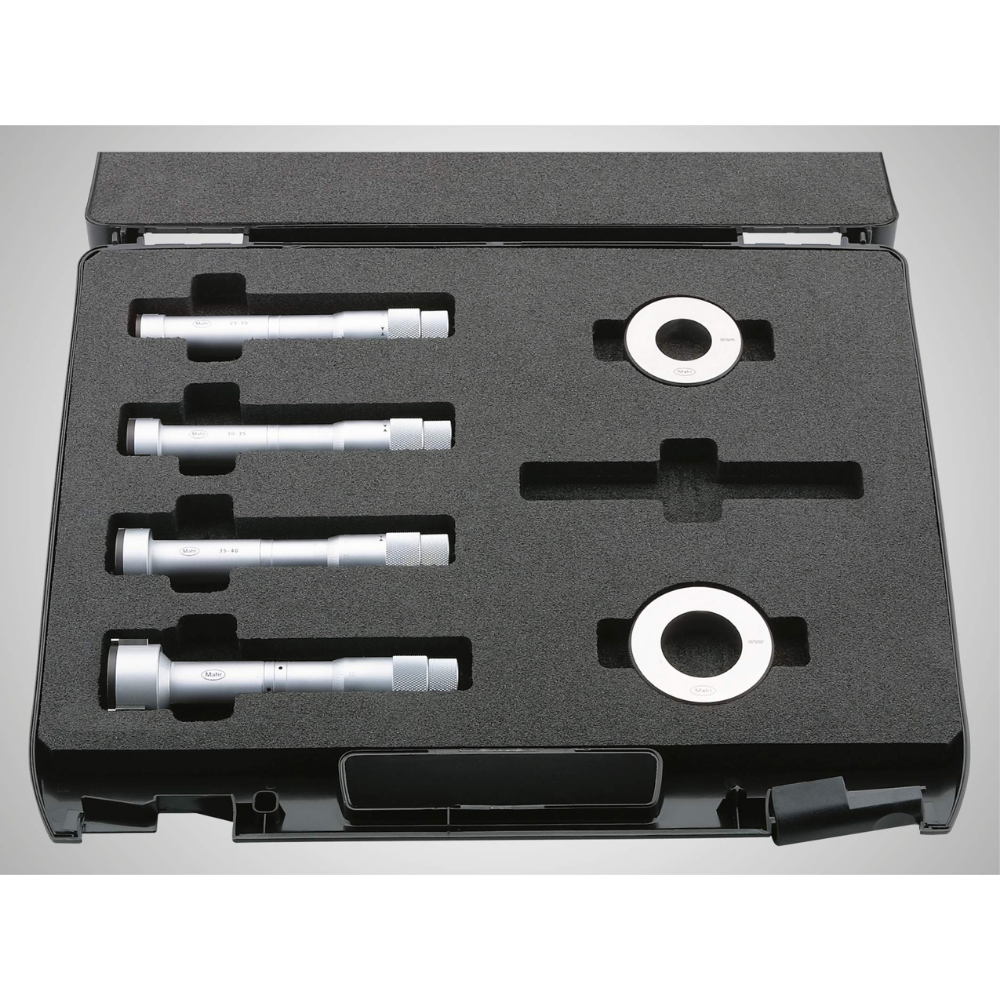

MAHR Micromar 44 AS Self-centering inside micrometer set

  • Operating and display units with satin chrome finish
  • Stainless spindle is hardened throughout and ground
  • Rapid drive with integrated ratchet
  • Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
  • Anvils from 12 mm are carbide tipped
  • From 12 mm the anvils can be used to measure the bottom of a bore
  • From 40 mm all measuring heads are made from aluminium to reduce weight
  • instruction manual
  • setting rings
  • key for replacing measuring heads (from 30 mm)
  • allen key
  • case
Ask Question

Description

Micromar 44 AS Self-centering inside micrometer set



Technical data

Order no. Measuring range mm Graduation value mm Error limit µm Notes error limit
4190350
6 – 12
0,001
4 µm
over the full length of the anvils
4190351
12 – 20
0,001
4 µm
over the full length of the anvils
4190352
20 – 50
0,005
4 µm
over the full length of the anvils
4190353
50 – 100
0,005
5 µm
over the full length of the anvils



Applications

For measuring:

  • Through holes
  • Blind holes
  • Centering shoulders
