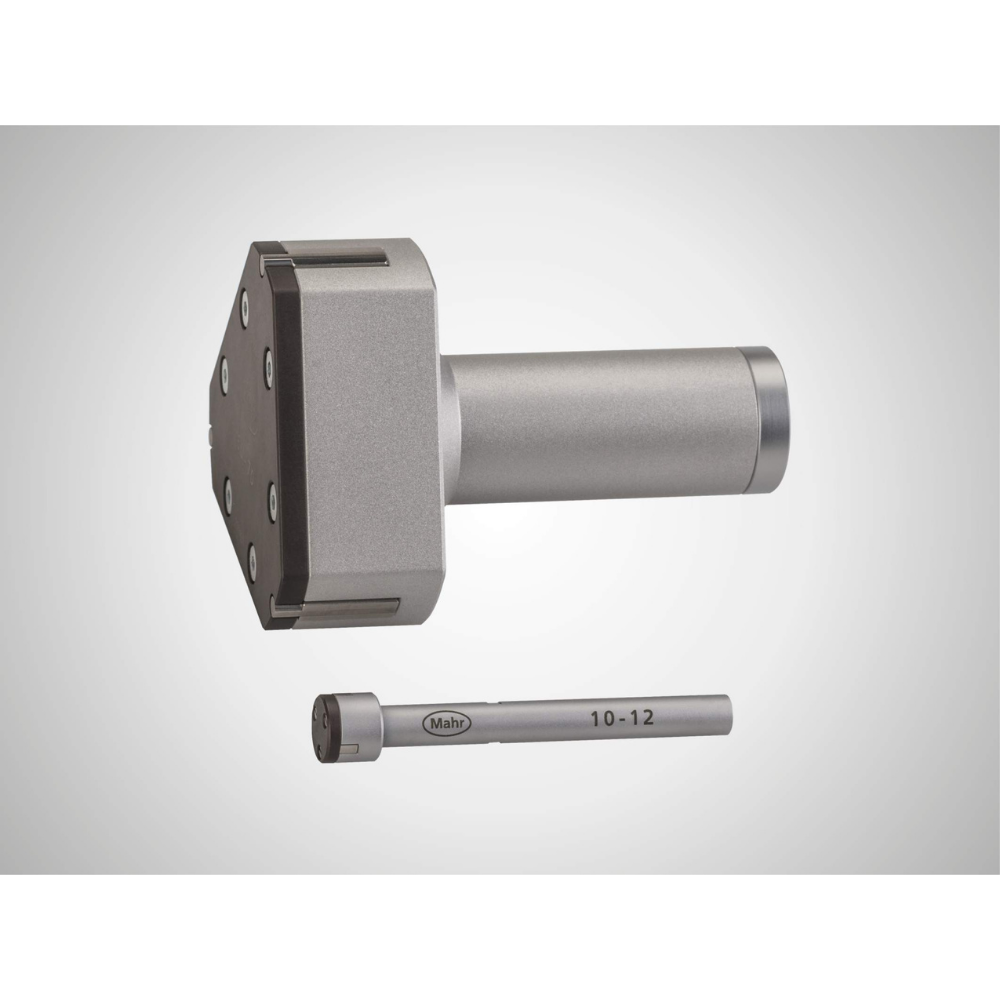

MAHR Micromar 44 Ak Measuring head

  • Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
  • Anvils from 12 mm are carbide tipped
  • From 12 mm the anvils can be used to measure the bottom of a bore
  • From 40 mm all measuring heads are made from aluminium to reduce weight
Ask Question

Description

Micromar 44 Ak Measuring head

Technical data

Order no. Measuring range mm Measuring range inch
4190330
6 – 8
.25 – .3125″
4190331
8 – 10
.3125 – .4″
4190332
10 – 12
.4 – .4725″
4190333
12 – 16
.4725 – .625″
4190334
16 – 20
.625 – .775″
4190335
20 – 25
.775 – 1″
4190336
25 – 30
1 – 1.2″
4190337
30 – 40
1.2 – 1.6″
4190339
40 – 50
1.6 – 2″
4190340
50 – 60
2 – 2.35″
4190341
60 – 70
2.35 – 2.75″
4190042
70 – 85
2.75 – 3.35″
4190043
85 – 100
3.35 – 4″
4190044
100 – 125
4 – 4.9″
4190045
125 – 150
4.9 – 5.9″
4190046
150 – 175
5.9 – 6.9″
4190047
175 – 200
6.9 – 7.9″
