Description

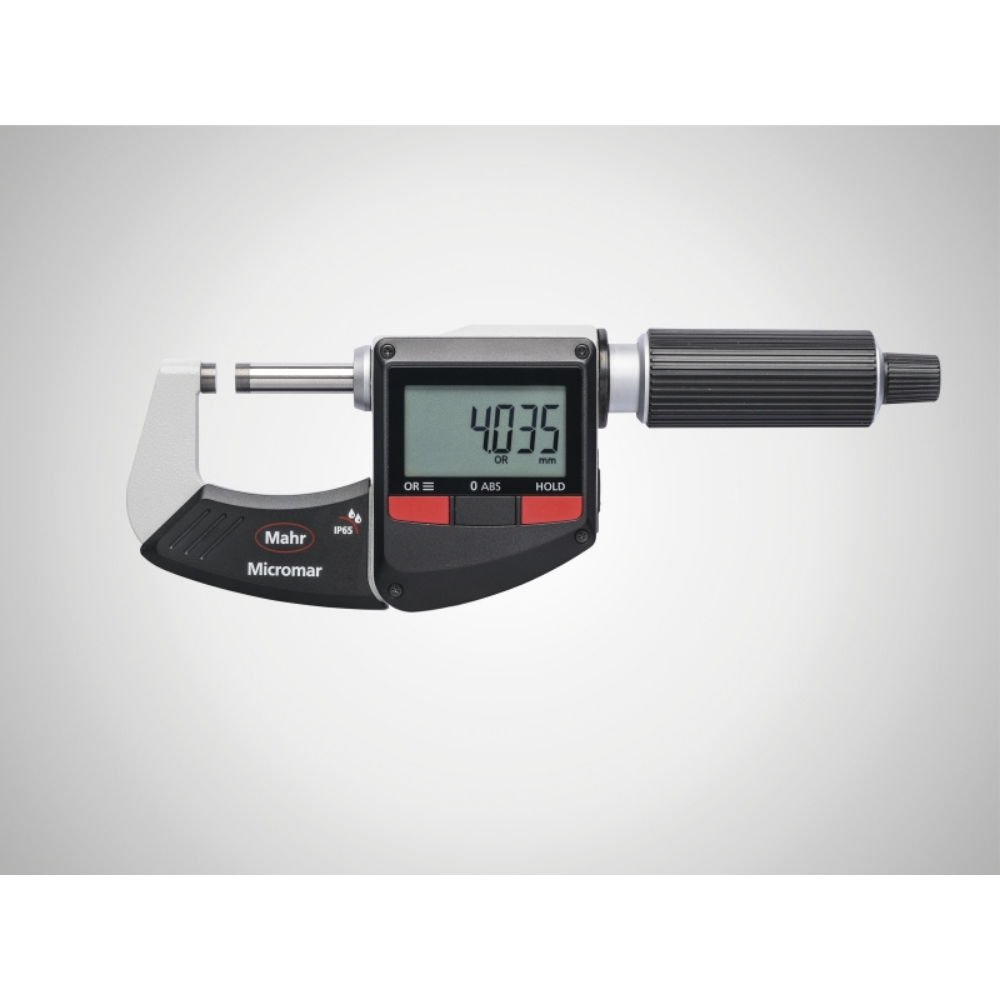

Micromar 40 EWR Digital Micrometer
Technical data
| Order no. | Measuring range mm | Measuring range inch | Resolution mm/inch | Error limit µm | Spindle diameter | Spindle thread pitch_mm | Measuring force (N) |
|---|---|---|---|---|---|---|---|
| 4157011 |
0 – 25
|
0 – 1″
|
0.001 / .00005″
|
2 µm
|
6.5 mm
|
0.5 mm
|
5 – 10
|
| 4157012 |
25 – 50
|
1 – 2″
|
0.001 / .00005″
|
2 µm
|
6.5 mm
|
0.5 mm
|
5 – 10
|
| 4157013 |
50 – 75
|
2 – 3″
|
0.001 / .00005″
|
3 µm
|
6.5 mm
|
0.5 mm
|
5 – 10
|
| 4157014 |
75 – 100
|
3 – 4″
|
0.001 / .00005″
|
3 µm
|
6.5 mm
|
0.5 mm
|
5 – 10
|
Functions
- RESET (set display to zero)
- ABS (display can be set to zero without losing reference to preset)
- mm/inch
- PRESET (for entering a numerical value)
- LOCK function (key lock)
- HOLD (storage of measured values)
