MAHR MarTest 801 SM Test indicator

  • Dial indicator, ANSI/AGD Group 0
  • Dial indicator, ANSI/AGD Group 1
  • Dial indicator, ANSI/AGD Group 2
  • Dial indicator, ANSI/AGD Group 3
  • Dial indicator, ANSI/AGD Group 4
  • Long-range indicators
  • Dial indicators with limited measuring range
  • Perpendicular dial indicators
Ask Question
Categories: , Product ID: 3766

Description

MarCator  Mechanical dial indicators ANSI/AGD



MarCator A1/2Q Dial indicator

  • Unit construction and removable movement save repair/cleaning time and maintenance
  • Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
  • Jeweled bearings resist friction, add to longer indicator life
  • Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
  • Soft tinted dials (green – inch / yellow – metric) minimize eye strain
  • Special steel alloy
  • Balanced dial hand affords no shift, precise reading
  • Controlled rack and pinion mesh eliminates slope for precise response and reading
  • Smooth adjusting bezels for easy setup
  • Positive pressure pullback spring requires less maintenance
  • Compliance with ANSI/AGD dimensional and accuracy specifications
  • Normally furnished: balanced dial with + on right; centered vertical lug back; regular contact point PT-43, .09” radiused, .093” long
  • Optional dials: balanced with + on left; continuous clockwise; continuous counterclockwise
  • Order by part number and specify dial style desired.For other dial styles or special requirements, call Mahr



MarCator N6I Dial indicator

MarCator N6I Dial indicator















MarCator - Dial indicator ANSI/AGD Group 1

MarCator – Dial indicator ANSI/AGD Group 1



MarCator--B5_M--20111118--BI--weiss--18x13--300dpiMarCator B6Q-RC Dial indicator

  • Unit construction and removable movement save repair/cleaning time and maintenance
  • Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
  • Jeweled bearings resist friction, add to longer indicator life
  • Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
  • Soft tinted dials (green – inch / yellow – metric) minimize eye strain
  • Special steel alloy
  • Balanced dial hand affords no shift, precise reading
  • Controlled rack and pinion mesh eliminates slope for precise response and reading
  • Smooth adjusting bezels for easy setup
  • Positive pressure pull back spring requires less maintenance
  • Compliance with ANSI/AGD dimensional and accuracy specifications
  • These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
  • Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise (Order by part number and specify dial style desired)
  • For other dial styles or special requirements – call Mahr

MarCator O6I-RC Dial indicatorMarCator O6I-RC Dial indicator











MarCator - Dial indicator ANSI/AGD Group 2

MarCator – Dial indicator ANSI/AGD Group 2



MarCator ECONOMY seriesHigh performance dial indicator ANSI/AGD Group2

  • Outstanding quality due to a well thought out design, use of high quality materials, and the precision engineered mechanism’s guarantee
  • The concentric “Speed Read“ pointer (on 1.0“ and .500“ models) allows easy and safe reading of this dial indicator
  • Spindle and stem are made of resistant stainless steel
  • Supplied with: lug back and tolerance hands





MarCator 23Q Dial indicator

  • Unit construction and removable movement save repair/cleaning time and maintenance
  • Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
  • Jeweled bearings resist friction, add to longer indicator life
  • Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
  • Soft tinted dials (green – inch / yellow – metric) minimize eye strain
  • Special steel alloy
  • Balanced dial hand affords no shift, precise reading
  • Controlled rack and pinion mesh eliminates slope for precise response and reading
  • Smooth adjusting bezels for easy setup
  • Positive pressure pull back spring requires less maintenance
  • Compliance with ANSI/AGD dimensional and accuracy specifications
  • These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
  • Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise. (Order by part number and specify dial style desired)
  • For other dial styles or special requirements – call Mahr



MarCator 23I Dial indicatorMarCator 23I Dial indicator











Dial indicator ANSI/AGD Group 3

Dial indicator ANSI/AGD Group 3



MarCator D6K-RC Dial indicatorMarCator D6K-RC Dial indicator













MarCator Q6I-RC Dial indicatorMarCator Q6I-RC Dial indicator











Dial indicator ANSI/AGD Group 4

Dial indicator ANSI/AGD Group 4



MarCator D6K-RC Dial indicatorMarCator E7I Dial indicator











Long-range indicators

Long-range indicators

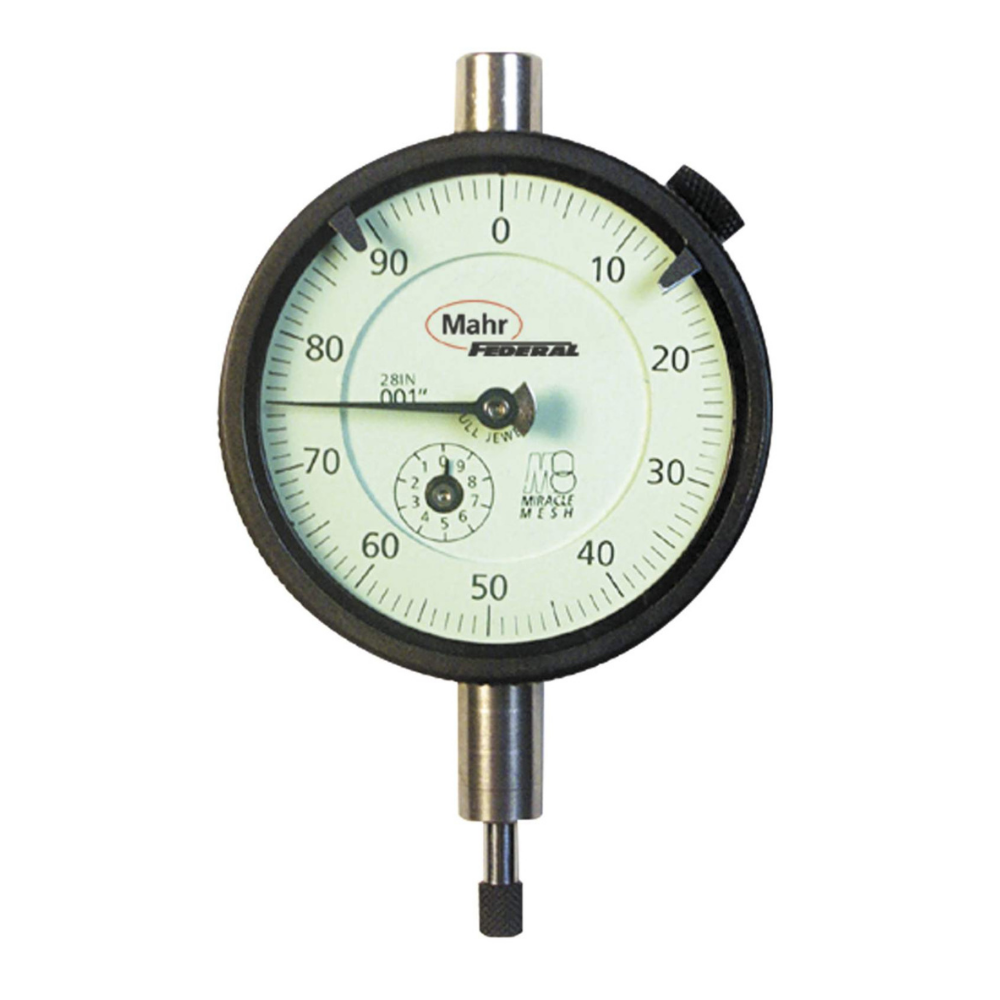

MarCator 28IQN Dial indicator













MarCator SQ6IS Dial indicatorMarCator SQ6IS Dial indicator









Dial indicators with limited measuring range

Dial indicators with limited measuring range



MarCator C1RN-40 Dial indicatorMarCator C1RN-40, MarCator M1RN-100 Dial indicator

A practical solution for inspectors and machine operators who need to eliminate the potential for indicator misreadings.

  • Nomatter how far out of tolerance a part may be, the needle of a one revolution indicator will always stay in the red, non-read zone — no passing zero again — no reading errors.
  • No limited contact travel
  • Shockproof “Following Movement”
  • Always keeps the hand within a single revolution
  • Alternate contact points, backs and other accessories are optionally available
  • Metric dials are yellow
  • One piece case design
  • Inserted precision bearings
  • Available in ANSI/AGD Group 2 size
  • Flat back



Perpendicular dial indicators

Perpendicular dial indicators



MarCator J8I Dial indicatorMarCator J8I Dial indicator

  • Unit construction and removable movement save repair/cleaning time and maintenance
  • Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
  • Jeweled bearings resist friction, add to longer indicator life
  • Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
  • Soft tinted dials (green – inch / yellow – metric) minimize eye strain
  • Special steel alloy
  • Balanced dial hand affords no-shift, precise reading
  • Controlled rack and pinion mesh eliminates slope for precise response and reading
  • Smooth adjusting bezels for easy setup
  • Positive pressure pull back spring requires less maintenance
  • Normally furnished: balanced dial with + on right; mounting rod (see dimension drawings); regular contact point, .18” radiused, .250” long
  • Threaded stem versions available as an option; AD-59 (.5622 long x .500” OD for “J & W” styles), 3/8-32 internally threaded bushings and AD-60 (.687” long x .500” OD for “G & F” Models) purchased separately (bushings also available separately)
  • For other dial styles or special requirements – call Mahr



MarCator W8I Dial indicatorMarCator W8I Dial indicator
