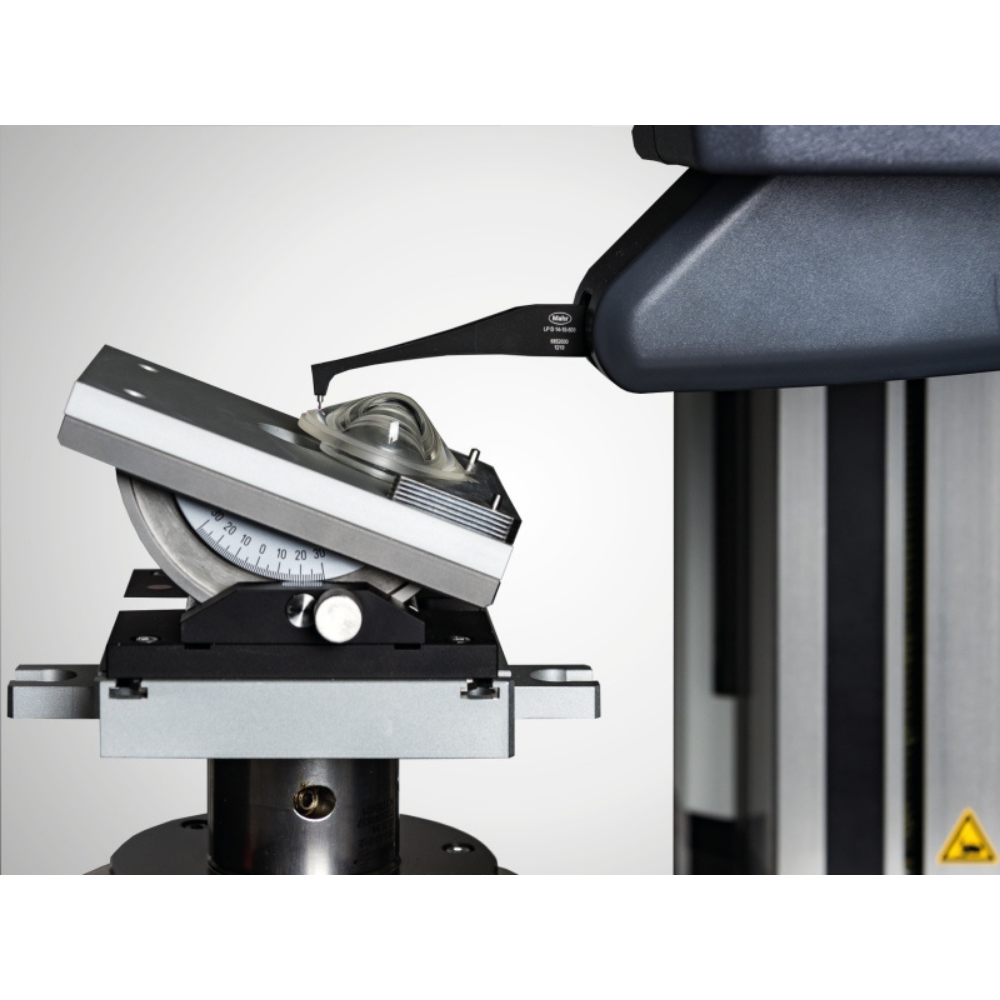

MAHR MarSurf UD 130 Aspheric 2D Asphere measuring station

MarSurf UD 130 Aspheric is a high-precision 2D surface measuring station for characterizing contour and roughness on optical components. MarWin is the operating and evaluation software.

Ask Question

Description

MarSurf UD 130 Aspheric 2D Asphere measuring station

Checks the contour in the first machining operations

  • Early detection of deviations, thus avoiding costly reworking.

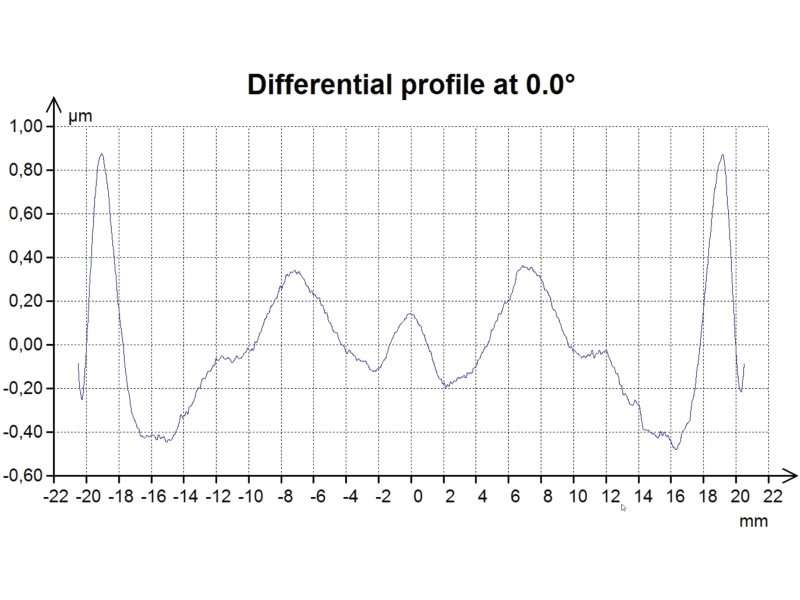

  • Differential profile output in machine-readable format for controlling the machine tool.

Increased flexibility

  • Different types of rotationally symmetrical aspheres can be measured with one measuring system. No additional investment required.
  • Measuring range up to 130 mm
  • High measuring speed and dynamics (up to 5 mm/s for large lenses / up to 0.1 mm/s for microlenses)
  • Fully positionable stylus tip.

Innovative LP D probe arm

  • Improved probe system dynamics by increased rigidity and attenuation as well as a lower moment of inertia:
    – optimized overall design of the probe system
    – innovative choice of materials
  • Probe arm with integrated chip for:
    – detecting and identifying the probe arm,
    – checking that the probe arm is inserted correctly,
    – providing information from probe arm.

Your results will be right

  • The high-precision MarSurf UD 130 is the basis for the accurate measurement of your workpieces. The vertical resolution of 2 nm and form deviations of < 300 nm guarantee the exact reproduction of your asphere.
  • Probe arm change with no need to recalibrate.
  • Lenses with steep sides can be measured.

Applications

Precision lens industry
Contour and roughness measurements on:

  • spherical and aspherical lenses
  • Cylinder lenses
  • Frames
  • Housing components and other mechanical components
