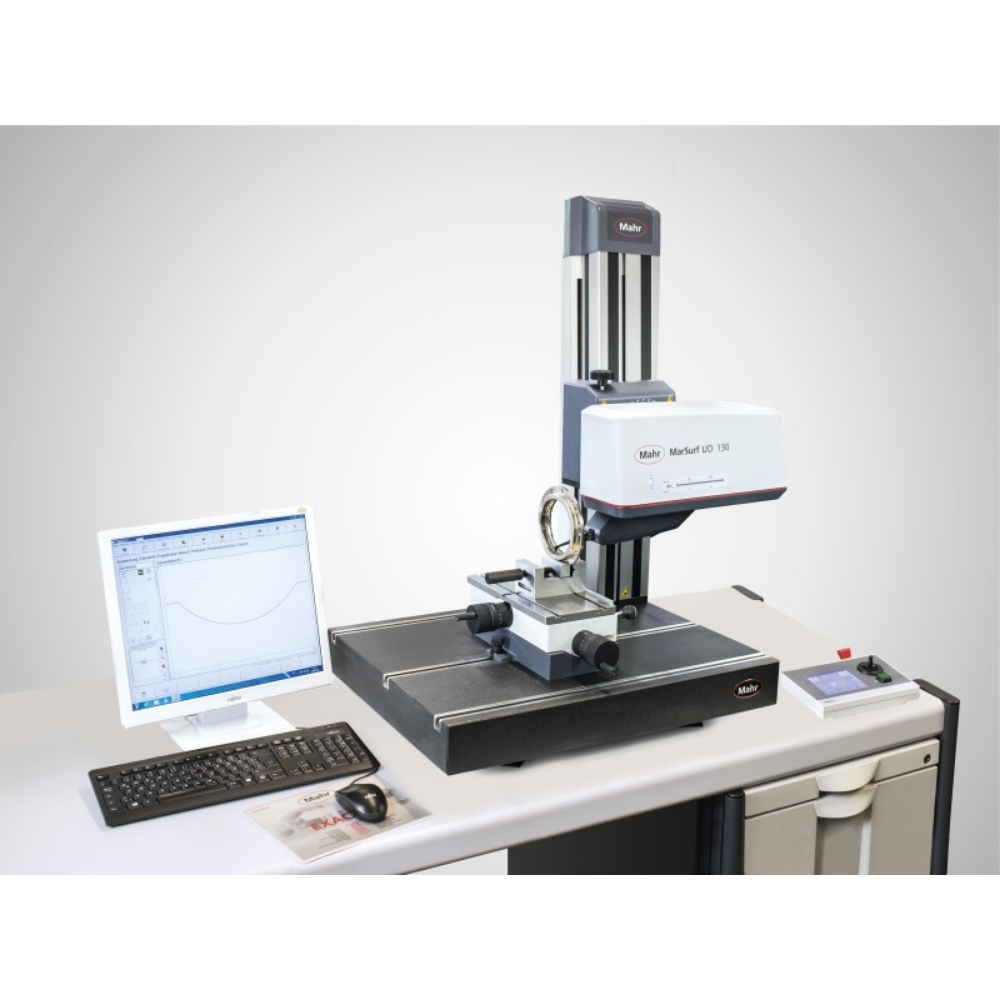

MAHR MarSurf LD 130/ LD 260 Combined contour and surface measuring station

MarSurf LD 130 / LD 260. A step into a new dimension
Combined contour and roughness measurements in just one step comes courtesy of proven cutting-edge technology from Mahr metrology. The MarSurf LD 130 and MarSurf LD 260 measuring stations have been systematically developed to draw on the experience from the first generation of equipment.

Ask Question
Categories: , Product ID: 3935

Description

MarSurf LD 130 Combined contour and surface measuring station

  • Roughness and contour in just one step
  • High measuring and positioning speed cuts measuring times dramatically
  • Innovative probe system removal
  • Quick and reliable probe arm exchange with simultaneous probe arm detection by magnetic holder
  • Long measuring length up to 260 mm (MarSurf LD 260) with a measuring stroke of 13 mm (100 mm probe arm length) or 26 mm (200 mm probe arm length)
  • Modular construction for ease of maintenance
  • No need to fully dismantle the measuring stand for maintenance

Technical Data
LD130-ST500CNC
6720821 – DRIVE UNIT LD130 SET
Resolution
0.8 nm
0.8 nm
Start of traversing length (in X)
0.1 mm
0.1 mm
End of traversing length (in X)
130 mm
130 mm
Positioning speed
0.02 mm/s to 200 mm/s
0.02 mm/s to 200 mm/s
Measuring speed
0.02 mm/s to 10 mm/s;
for roughness measurements
0.1 mm/s to 0.5 mm/s is recommended
0.02 mm/s to 10 mm/s;
for roughness measurements
0.1 mm/s to 0.5 mm/s is recommended
Measuring range mm

13 mm (100 mm probe arm)
26 mm (200 mm probe arm)

13 mm (100 mm probe arm)
26 mm (200 mm probe arm)
Traversing lengths
0.1 mm – 130 mm
0.1 mm – 130 mm
Measuring force (N)
0.5 mN to 30 mN, software adjustable
0.5 mN to 30 mN, software adjustable



Applications

Machine building

  • Roller bearings, threads, threaded rods, ball screws, shafts, racks, ball heads, valves

Measurement close to the production area

  • Contour and surface roughness measurement in semi-automatic and fully automatic operation

Automotive industry

  • Engine parts including cylinder block, cylinder head, crankshaft, camshaft, valves, steering, gearbox, injection systems, turbocharger

Medicine

  • Contour and surface roughness measurement for hip and knee endoprostheses
  • Contour measurement for medical screws
  • Contour and surface roughness measurement for dental implants

Optics

  • Contour and surface roughness measurement of aspherical lenses

Accessories

  • ST 750 measuring stand
  • Parallel V-block
  • V-block, equipment table
  • Measuring cabinet
  • Extensive range of probe arms


Software options:

  • Profile processing
  • Dominant waviness (WDc) for MarWin
  • ISO 13565-3 surface parameters
  • User defined parameters
  • Topography
  • Toppogrphy with MfM / MfM plus
  • Thread Evaluation
  • Chamfer evaluation (in accordance with Bosch standard)
  • QS-STAT / QS-STAT Plus
  • Digital I/O set

Shipment

  • MarSurf XCR 20 including midrange LD, Software Software MarWin EasyContour&Roughness, Mahr license key
  • TFT monitor
  • MCP 21 manual control panel
  • MarSurf LD 130 or LD 260 drive unit including LP D 14-10-2/60 LP D 14-10-500 probe system and probe arms
  • Calibration standard for contour 1, accuracy class 1
  • MarSurf ST 500 CNC measuring stand with 700 mm x 550 mm granite plate (including control module)
  • Dampening element set
  • CT 300 XY table
