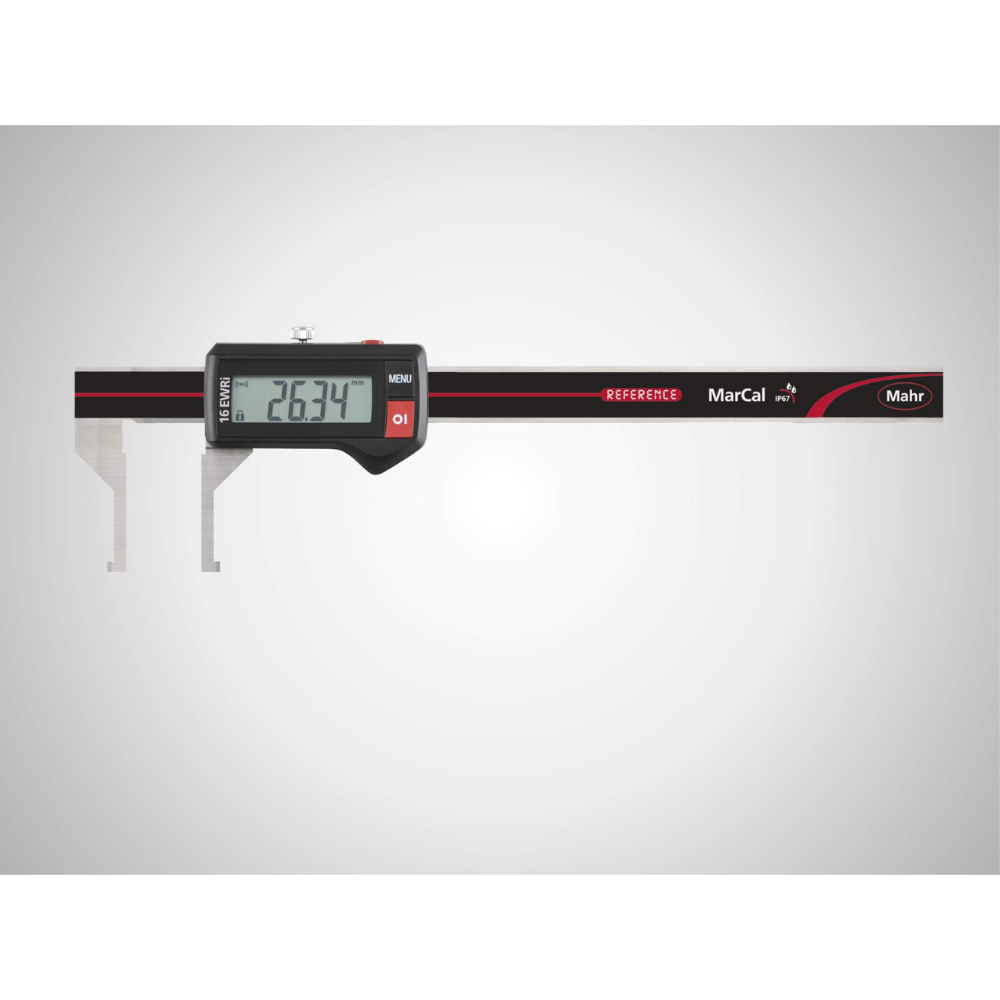

MAHR MarCal 16 EWRi-AI Digital Caliper for special applications

  • High contrast analog display
  • Locking screw above
  • Lapped guideway
  • Slide and beam made of hardened stainless steel
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
  • Integrated wireless
  • IP 67
  • battery
  • instruction manual
  • cas
  • Battery life approx. 3 years (approx. 0.5 in wireless mode)
Height of digits
  • 11 mm
Ask Question

Description

MarCal 16 EWRi-AI Digital Caliper for special applications



Technical data

Order no. Measuring range mm Measuring range inch Resolution mm/inch Error limit (mm) Error limit inches Standard Depth Rod
4103080
10 – 160
0.4 – 6.3″
0.01 / .0005″
0.03 mm
.001″
Factory standard
none
4103380
10 – 160
0.4 – 6.3″
0.01 / .0005″
0.03 mm
.001″
Factory standard
none
