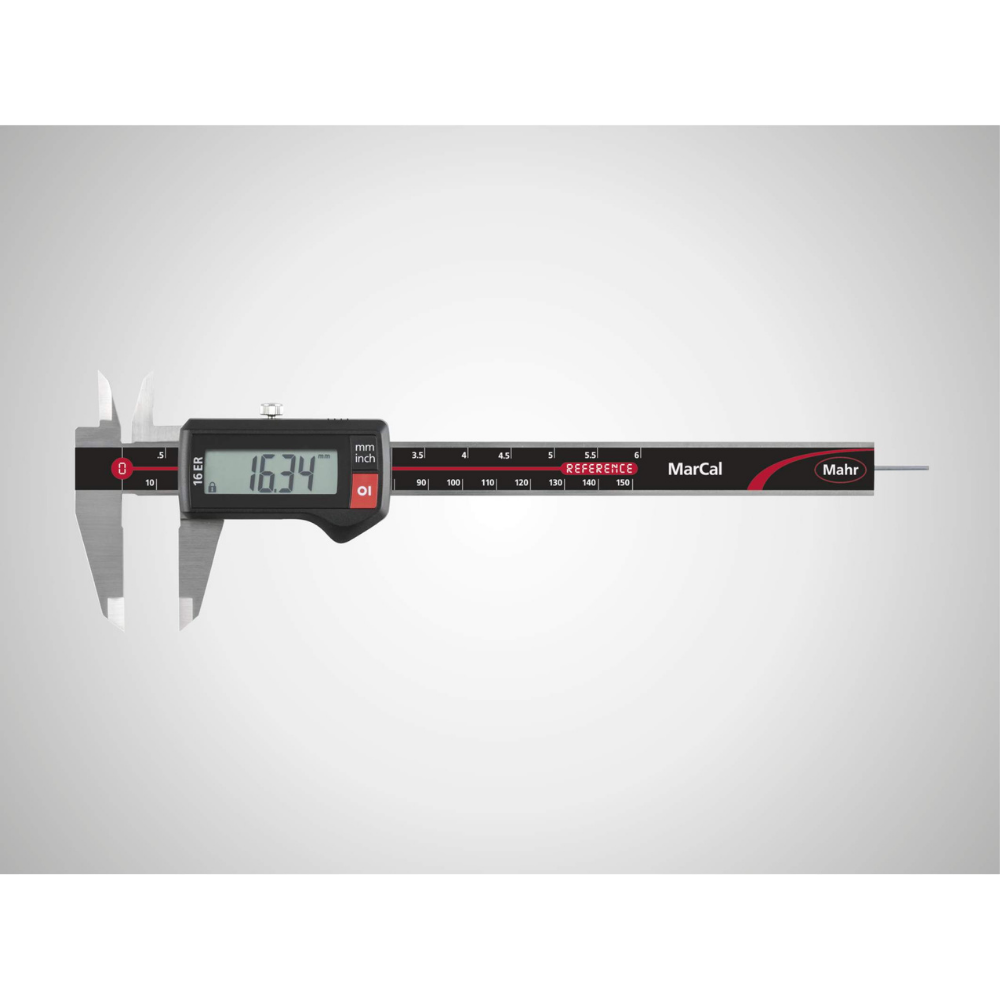

MAHR MarCal 16 ER Digital Caliper

MAHR MarCal 16 ER Digital Caliper

  • High contrast analog display
  • Locking screw above
  • Lapped guideway
  • Measuring blade for inside measurements
  • Slide and beam made of hardened stainless steel
  • Step measuring function
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Dirt wipers are integrated in the slide
  • none
  • None
  • instruction manual
  • battery
  • case
  • Battery life approx. 3 years
Height of digits
  • 11 m
Ask Question
Categories: , , Product ID: 3548

Description

Technical data

Order no. Measuring range mm Measuring range inch Resolution mm/inch Error limit (mm) Error limit inches Standard Friction wheel Depth Rod
4103010
0 – 150
0 – 6″
0.01 / .0005″
0.03 mm
.001″
DIN 862
no
round
4103011
0 – 150
0 – 6″
0.01 / .0005″
0.03 mm
.001″
DIN 862
yes
round
4103012
0 – 150
0 – 6″
0.01 / .0005″
0.03 mm
.001″
DIN 862
no
rectangular
4103013
0 – 150
0 – 6″
0.01 / .0005″
0.03 mm
.001″
DIN 862
yes
rectangular
4103205
0 – 200
0 – 8″
0.01 / .0005″
0.03 mm
.001″
DIN 862
no
rectangular
4103206
0 – 200
0 – 8″
0.01 / .0005″
0.03 mm
.001″
DIN 862
yes
rectangular
4103207
0 – 300
0 – 12″
0.01 / .0005″
0.04 mm
.0015″
Factory standard
no
4103208
0 – 300
0 – 12″
0.01 / .0005″
0.04 mm
.0015″
Factory standard
yes



Functions

  • ON/OFF
  • AUTO-ON / OFF
  • RESET (set display to zero)
  • mm/inch
  • LOCK function (key lock)
