MAHR MarCal 16 ER Digital Caliper, Data interface

  • High contrast analog display
  • Locking screw above
  • Lapped guideway
  • Measuring blade for inside measurements
  • Slide and beam made of hardened stainless steel
  • Step measuring function
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Dirt wipers are integrated in the slide
  • USB
  • Opto RS-232C
  • Digimatic
  • None
  • instruction manual
  • battery
  • case
  • Battery life approx. 3 years
Height of digits
  • 8.5 mm
Ask Question

Description

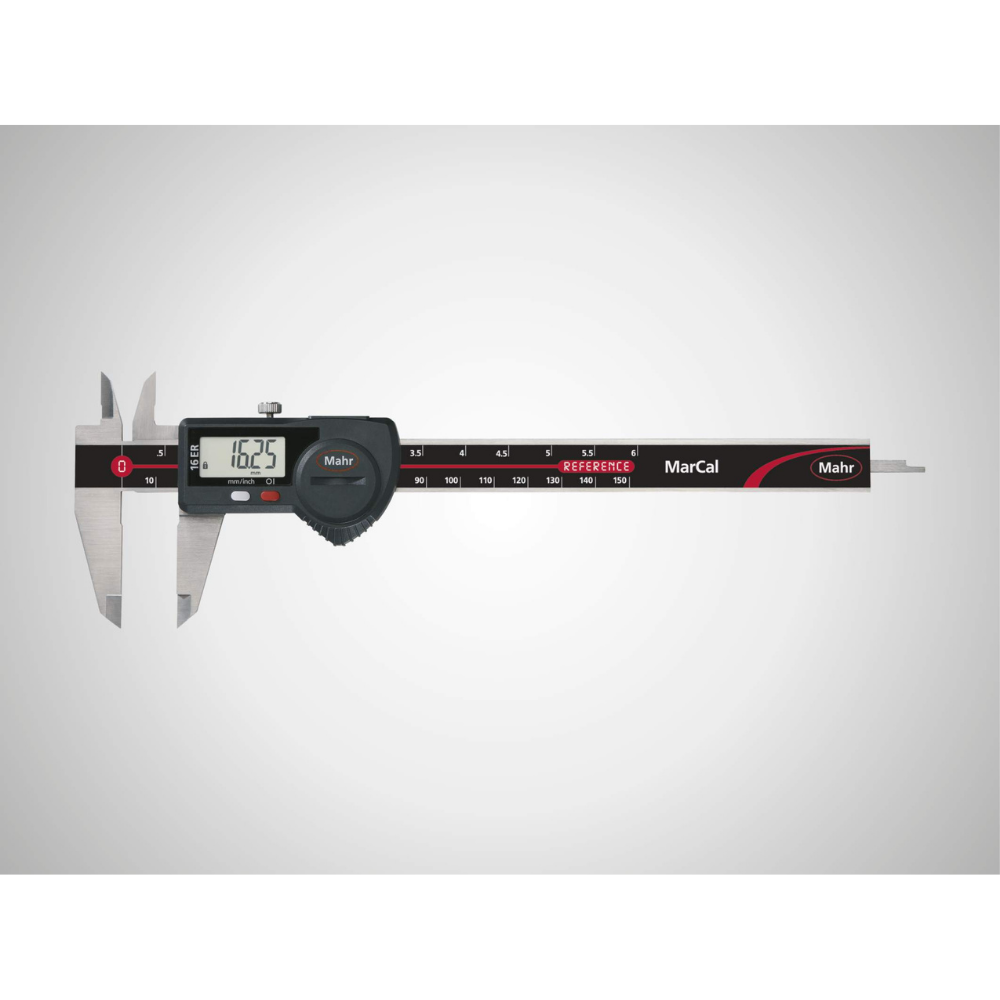

MarCal 16 ER Digital Caliper



Technical data

Order no. Measuring range mm Measuring range inch Resolution mm/inch Error limit (mm) Error limit inches Standard Friction wheel Depth Rod
4103014
0 – 150
0 – 6″
0.01 / .0005″
0.03 mm
.001″
DIN 862
no
round
4103015
0 – 150
0 – 6″
0.01 / .0005″
0.03 mm
.001″
DIN 862
yes
round
4103016
0 – 150
0 – 6″
0.01 / .0005″
0.03 mm
.001″
DIN 862
no
rectangular
4103017
0 – 150
0 – 6″
0.01 / .0005″
0.03 mm
.001″
DIN 862
yes
rectangular
4103018
0 – 200
0 – 8″
0.01 / .0005″
0.03 mm
.001″
DIN 862
no
rectangular
4103019
0 – 200
0 – 8″
0.01 / .0005″
0.03 mm
.001″
DIN 862
yes
rectangular
4103020
0 – 300
0 – 12″
0.01 / .0005″
0.04 mm
.0015″
Factory standard
no
4103021
0 – 300
0 – 12″
0.01 / .0005″
0.04 mm
.0015″
Factory standard
yes



Functions

  • ON/OFF
  • AUTO-ON / OFF
  • RESET (set display to zero)
  • mm/inch
  • LOCK function (key lock)
  • DATA (data transmission via connection cable)
