MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation

  • MaraMeter 57B-13 Portable thickness gages
  • MaraMeter XLI-57B-13 Portable thickness gages
  • MaraMeter 57B-13M Portable thickness gages
  • MaraMeter 57B-12 Portable thickness gages
  • MaraMeter 57B-12M Portable thickness gages
  • MaraMeter Portable thickness gages
  • MaraMeter XLI-57B-15 Portable thickness gages
  • MaraMeter 57B-15M Portable thickness gages
  • MaraMeter 57B-15 Portable thickness gages
Ask Question

Description

MaraMeter 57B – Thickness gage for measuring wall thickness of wire insulation



MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation

  • Using the basic design of the Model 57B-13 (Model 57B-13M — Metric) gage, the lower contact is PT-103, 1.10 mm / .043” diameter rod, mounted horizontally
  • Upper contact is a flat chisel contact , in line with the rod
  • By slipping tubular parts onto the lower contact, the gage can measure the wall thickness of the tube
  • An auxiliary weight on the indicator provides a total dead weight load of 25 grams
  • Digital indicator includes integrated wireless transmitter





Technical Data

MaraMeter 57B-13 Portable thickness gages

Order no. Product type Measuring range inch Throat depth mm Graduation value inch Measuring force
2050980
57B-13
0 – .30″
102 mm
.0005″
0.25 N



MaraMeter XLI-57B-13 Portable thickness gages

Order no. Product type Measuring range inch Measuring range mm Throat depth mm Measuring force
2057550
XLI-57B-13
0 – .30″
0 – 7.62
102 mm
0.25 N



MaraMeter 57B-13M Portable thickness gages

Order no. Product type Measuring range mm Throat depth mm Graduation value mm Measuring force
2050981
57B-13M
0 – 7.6
102 mm
0.01 mm
0.25 N

MaraMeter 57B Thickness gage

MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation

  • Solid casting with ribbed frame provides strength and rigidity for accurate measurements
  • Furnished with a lift lever so work can be easily placed between the contacts
  • Large 54 mm/ 2.125“ diameter lower anvil provides convenient stage for small parts or flat materials
  • 4.75 mm/ .187“ diameter radiused upper contact normally provided
  • 102 mm/ 4“ throat depth for part clearance
  • Indicator mounts with adjustable back for quick positioning for each gaging requirement
  • Available with dial indicator or digital electronic indicator



Technical Data

MaraMeter 57B-12 Portable thickness gages

Order no. Product type Measuring range inch Throat depth mm Graduation value inch
2050976
57B-11
0 – 1″
102 mm
.001″
2050978
57B-12
0 – .50″
102 mm
.0005″



MaraMeter 57B-12M Portable thickness gages

Order no. Product type Measuring range mm Throat depth mm Graduation value mm
2050977
57B-11M
0 – 25
102 mm
0.01 mm
2050979
57B-12M
0 – 12.5
102 mm
0.01 mm



MaraMeter Portable thickness gages

Order no. Product type Measuring range inch Measuring range mm Throat depth mm
2051884
EMD-57B-11
0 – 1″
0 – 21.5
102 mm
2057549
0 – 12.5
102 mm

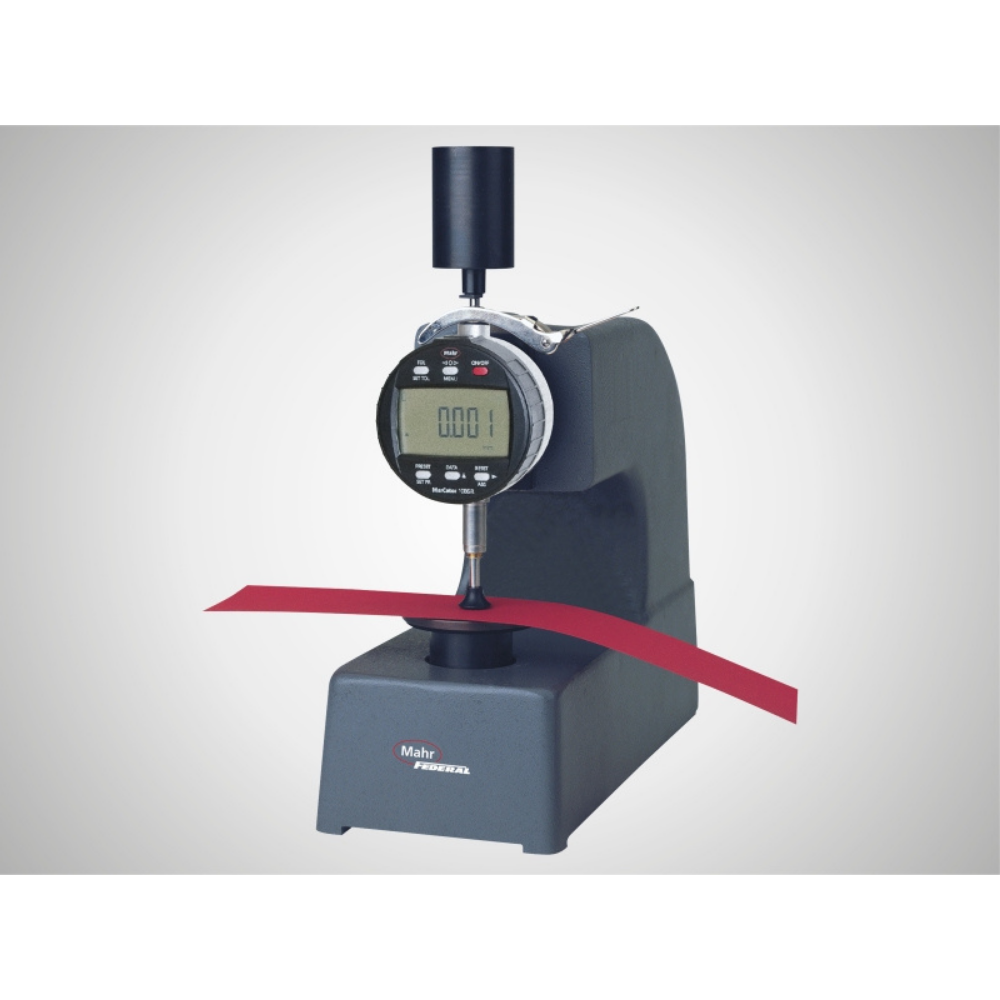

MaraMeter 57B Thickness gage with constant measuring force

MaraMeter 57B Thickness gage with constant measuring force

  • Solid casting with ribbed frame provides strength and rigidity for accurate measurements
  • 0.003 mm / .0001“ parallelism with tables up to 19 mm / .75“ diameter
  • 283 g / 10 oz. dead weight load for constant gaging pressure
  • 10 mm / .407“ diameter flat upper 54.0 mm / 2.125“ lower contacts
  • Indicator mounts with adjustable back for quick positioning for each gaging requirement
  • Digital indicator includes integrated wireless transmitter
  • With lift lever so work can be easily placed between the table and contact
  • Four inch throat depth for part clearance



Technical Data

MaraMeter XLI-57B-15 Portable thickness gages

Order no. Product type Measuring range inch Measuring range mm Throat depth mm Parallel error in µm Measuring force (N)
2057551
XLI-57B-15
0 – 1″
0 – 25
102 mm
3 µm
2.78 N / 10 oz dead weight



MaraMeter 57B-15M Portable thickness gages

Order no. Product type Measuring range mm Throat depth mm Graduation value mm Measuring force (N)
2050983
57B-14M
0 – 2.5
102 mm
0.002 mm
2.78 N (10oz dead weight)
2050985
57B-15M
0 – 25
102 mm
0.01 mm
2.78 N (10oz dead weight)



MaraMeter 57B-15 Portable thickness gages

Order no. Product type Measuring range inch Graduation value inch Measuring force (N)
2050982
57B-14
0 – .10″
.0001”
2.78 N (10oz dead weight)
2050984
57B-15
0 – 1″
.001″
2.78 N (10oz dead weight)
