MADDALENA WMAP EVO

WMAP Evo represents an excellent solution for large volume metering in the utility, industrial and commercial sectors. It provides good metrological performance and wide measuring range, while ensuring perfect readability over time thanks to its IP68 copper/glass register. Robust, long lasting and suitable for the most challenging environments, it is compatible with all types of water. It can be equipped with the latest remote data transmission technologies.

Ask a question

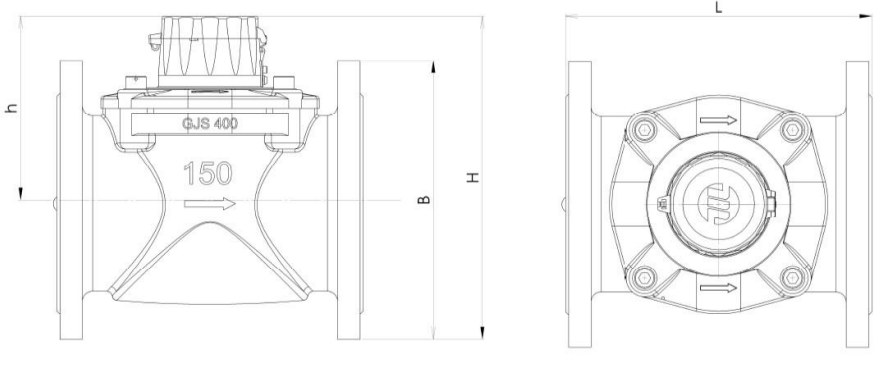

Description Technical Data Dimensions & Communication modules

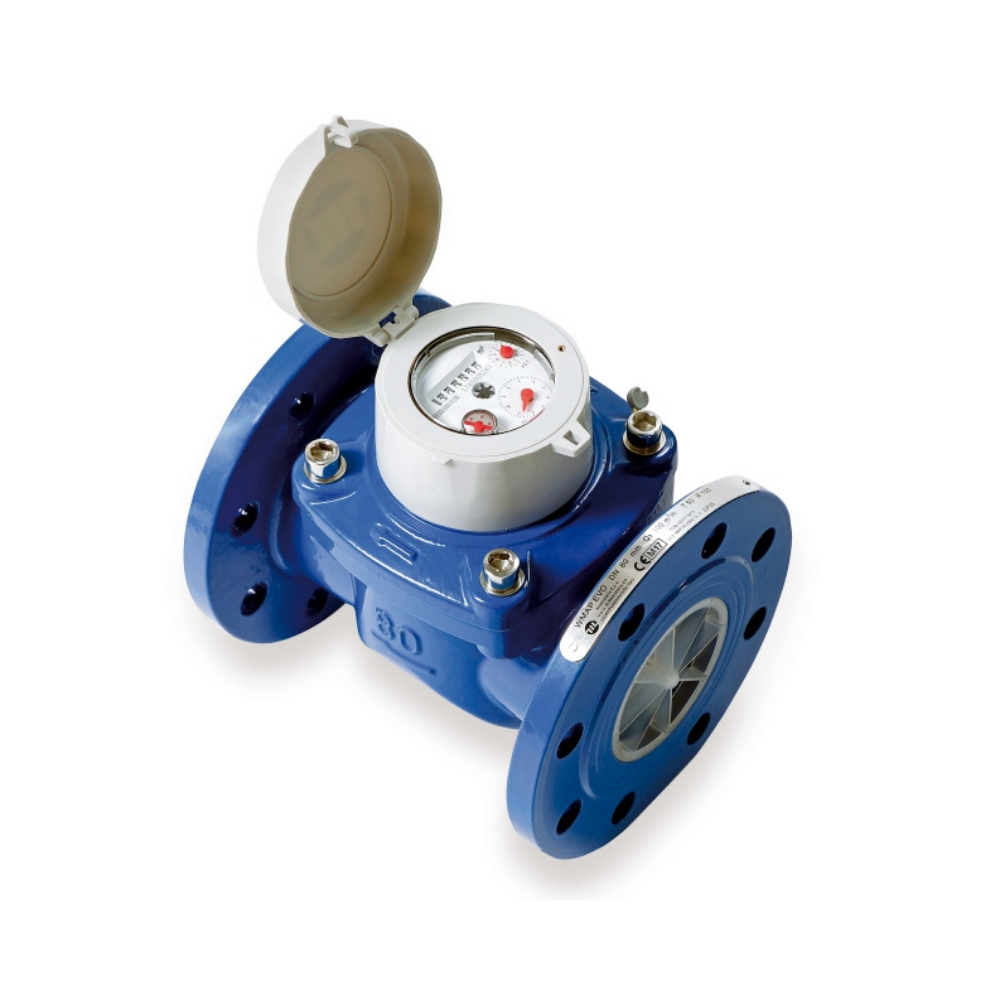

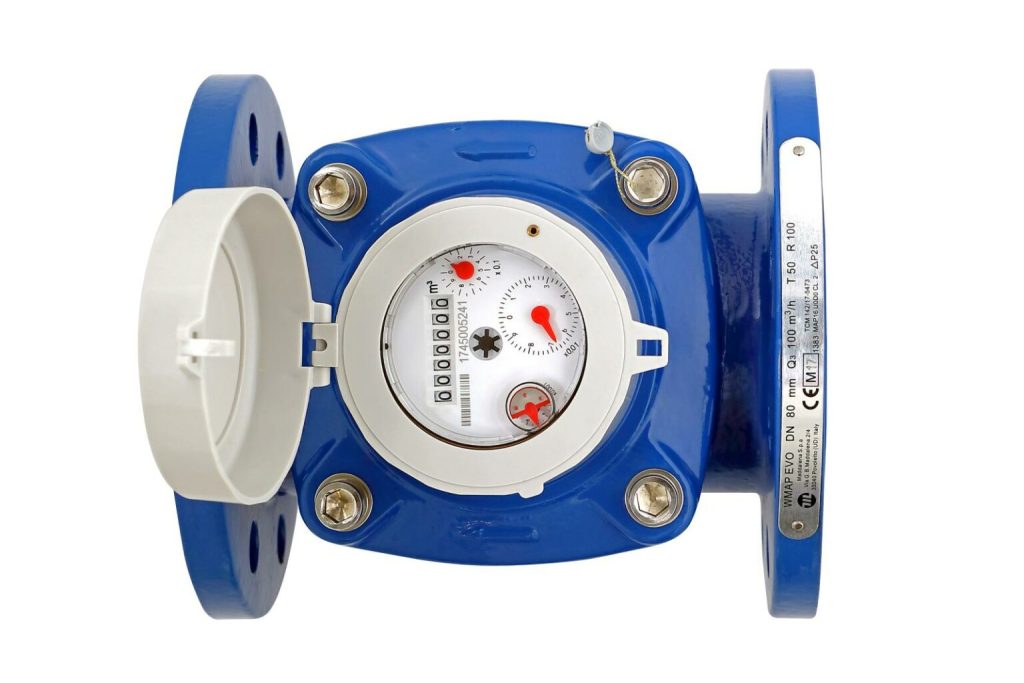

Maddalena WMAP EVO

AXIAL WOLTMANN METER

• Interchangeable mechanism axial Woltmann meter for cold water
• Ideal for large volumes for utilities and industrial use
• MID-certified: R max 250
• DN: 50÷200
• Health certifications available for a number of countries
• High protection against external magnetic fields
• Mineral glass lens
• Sealed register (IP68 copper/glass) to prevent condensation
• The register can be rotated

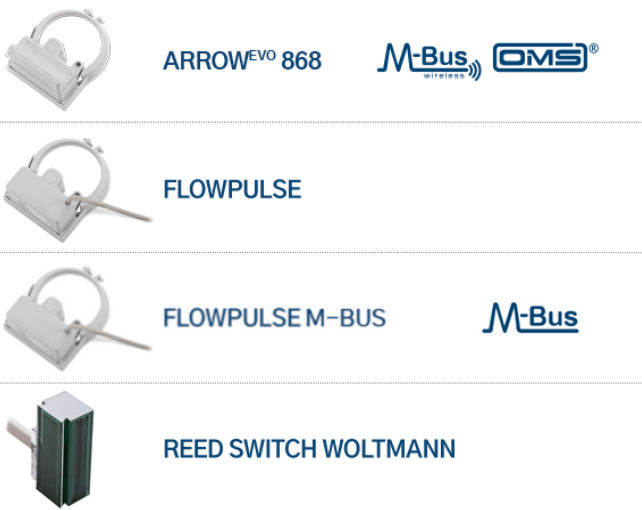

• Can be provided fitted with wired or radio communication module
• Pre-equipped for reed switch (DN 50÷100mm 1P=100L / DN 125÷200mm 1P=1000L) or static pulse emitter (DN 50÷100mm 1P=10L / DN 125÷200mm 1P=100L)

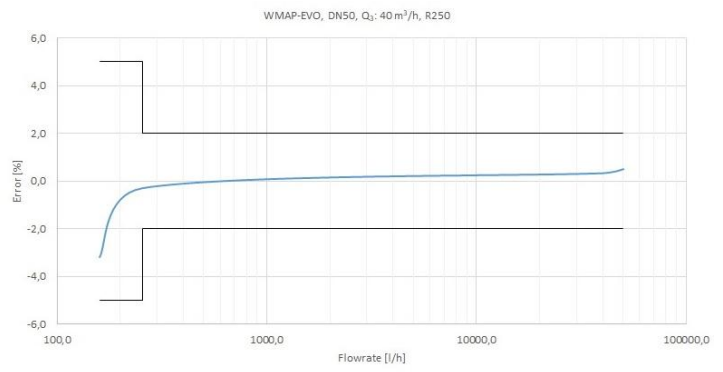

TYPICAL ERROR CURVE

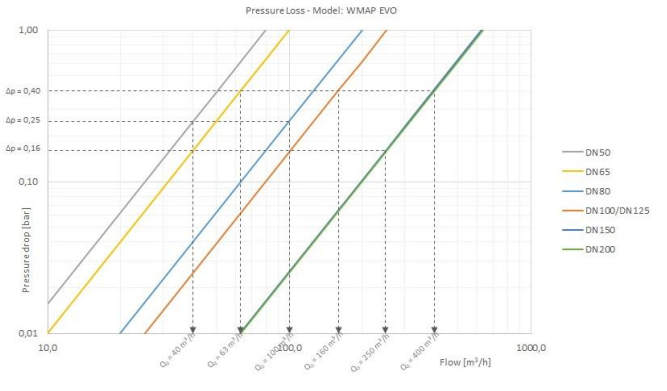

HEAD LOSS DIAGRAM

METROLOGICAL PERFORMANCE

Size	mm	50	65	80	100	125	150	200
	in	2	2 ½	3	4	5	6	8
Module B no.		TCM 142/17 – 5473
Module D no.		0119-SJ-A010-08
Q₃/Q₁ = R Referred to installation position		H↑ ≤ 250 H→; V↑; V↓ ≤ 160					H↑; V↑ ≤ 250 H→; V↓ ≤ 125
MID standard performance *
Q₃	m³/h	40	63	100	160	160	250	400
Q₄	m³/h	50	78,75	125	200	200	312,50	500
R		100
Q₁	l/h	400	630	1000	1600	1600	2500	4000
Q₂	l/h	640	1008	1600	2560	2560	4000	6400

* Other values of R available upon request.

TECHNICAL DATA

Maximum permissible error between Q₁ and Q₂ (excluded)		+/- 5%
Maximum permissible error between Q₂ (included) and Q₄		+/- 2% with water temperature ≤ 30°C +/- 3% with water temperature > 30°C
Temperature class		T50
Flow profile sensitivity classes		U0 – D0
Starting flow rate	l/h	125	190	320	450	700	1200	1800
Head loss		ΔP25	ΔP40	ΔP25	ΔP40	ΔP40	ΔP16	ΔP40
Nominal pressure	bar	10/16
Maximum reading	m³	9.999.999				99.999.999
Minimum reading	l	0,05				2	5
Indicative weight	kg	10	11,2	15,2	17,2	22,4	29	42,6
