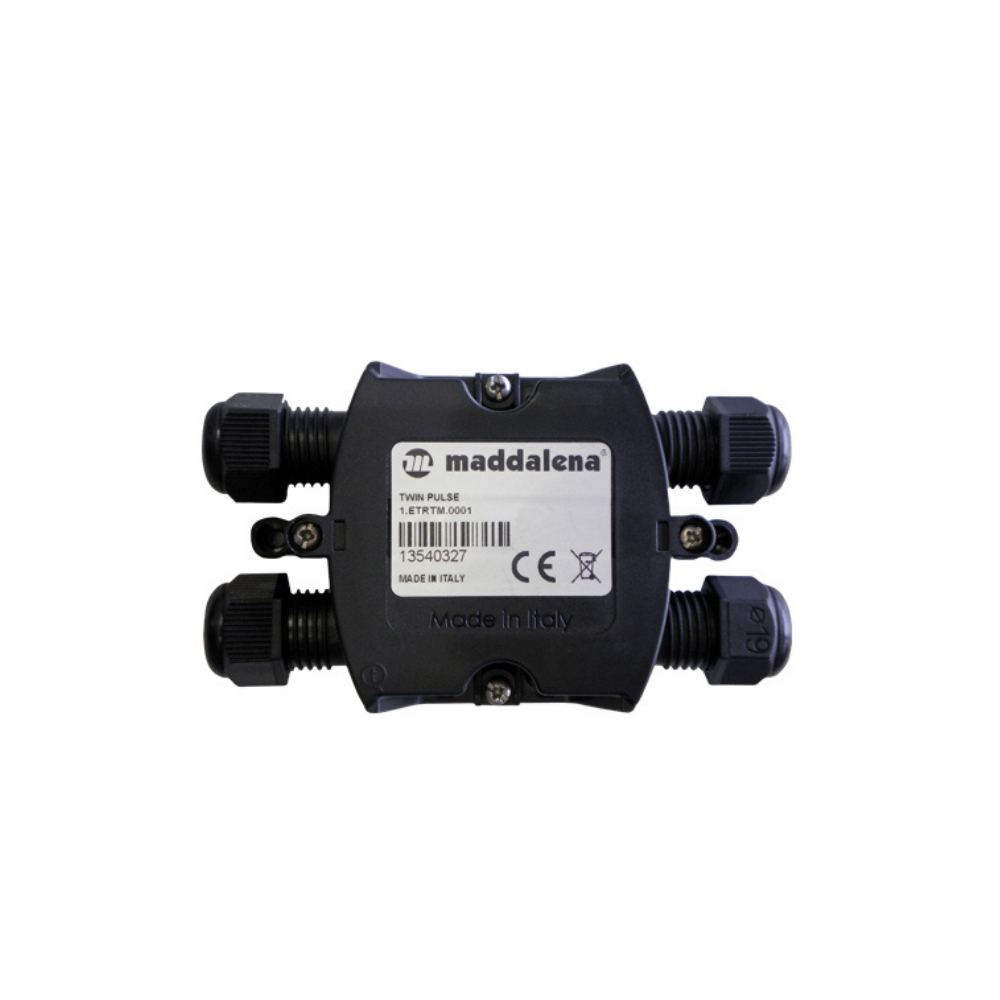

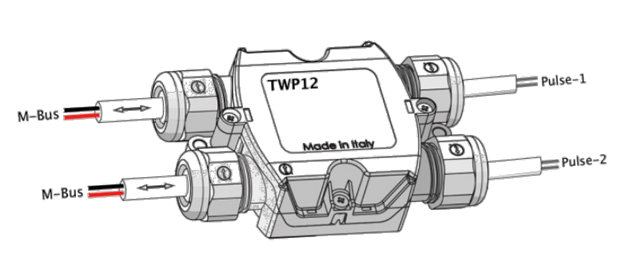

Pulse adapter on M-Bus line in slave configuration. Twinpulse has a primary address and a secondary address for both inputs, simplifying the management of readings. The converter is powered by the M-Bus network itself.
Twin-Pulse is a pulse counter for metering applications. It is an M-Bus based device and operates in slave configuration. It can manage simultaneously up to two pulse inputs. Twin-Pulse has a single primary address and a single secondary address for both counter inputs for quick installation and easy management of readings. Care must be taken that each input is assigned the correct count line. The two counter inputs are identified as J1 (counter 1) and J2 (counter 2). Twin-Pulse is supplied with power by the M-Bus network. The device can be set up with the MBus Tool software.

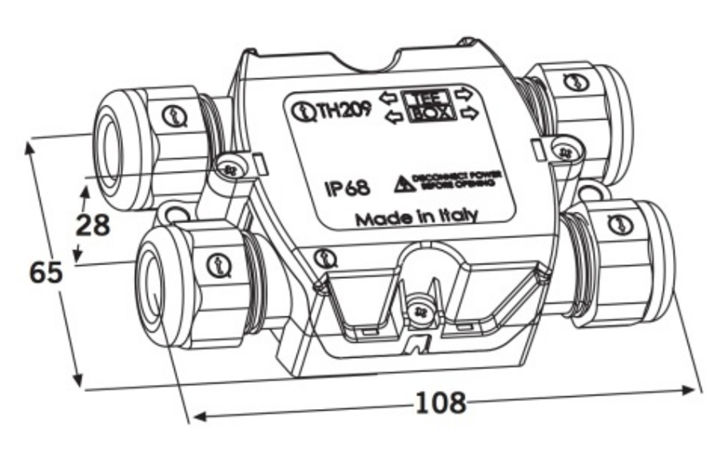

| Parameter | Specification |
|---|---|
| Counter inputs | 2 inputs: J1 (Counter 1), J2 (Counter 2) |
| Input requirements | Floating contacts only (reed switch or open collector pulser) |
| Maximum closed contact resistance | 10 kΩ |
| Maximum line impedance (open contact) | C < 2.2 nF |
| Minimum detectable pulse length | 38 ms |
| Battery type | CR2032 |
| Estimated battery life | 1 year without M-Bus connection |
| Communication protocol | Standard M-Bus |
| Supported baud rates | 300, 2400, 9600 bps |
| Secondary address | 8-digit BCD, stored in flash memory |
| Bus power consumption | 1.4 mA (< 1 unit load) |
| Data transmitted in the telegram | Primary address Manufacturer ID Device type (counter, etc.) Generation number Progressive message number Alarms Measuring unit code of the reading Instantaneous reading in litres for Counter 1 and Counter 2 |
| Alarms | Battery service life less than 1 month |
| Housing protection rating | IP68 |
| Operating temperature | 0 °C to +55 °C |
| Storage temperature | -20 °C to +70 °C |
| Humidity (non-condensing) | 10% – 70% |
