MADDALENA REED SWITCH

MADDALENA REED SWITCH

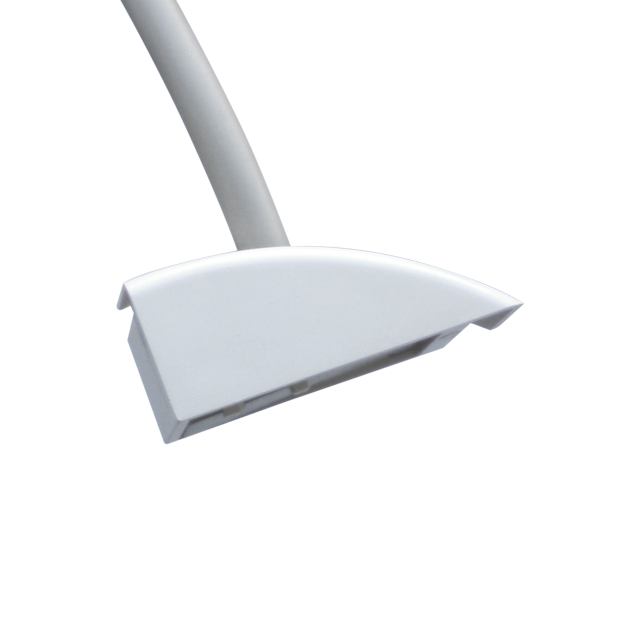

Reed switch pulse emitter, it can be installed later on suitable meters to provide communication with standalone radio modules.

MADDALENA REED SWITCH

Reed switch pulser for SJ PLUS single. Gives a number of pulses proportional to the volume flowed.
• Pulse options: 1 pulse/10 L
• Retrofits to pre-equipped meters
• Easy to install and replace
• No influence on the meter’s performance
• Designed for remote reading systems, batching systems, etc.

• Resin potted reed switch contact
• Protection rating: IP67
• Contact ratings: 24 Vac/Vdc, 0.1 A
• Cable length: standard 1 m
• Operating temperature: -10°C ÷ +90°C
• Storage temperature: -20 °C ÷ +70 °C
