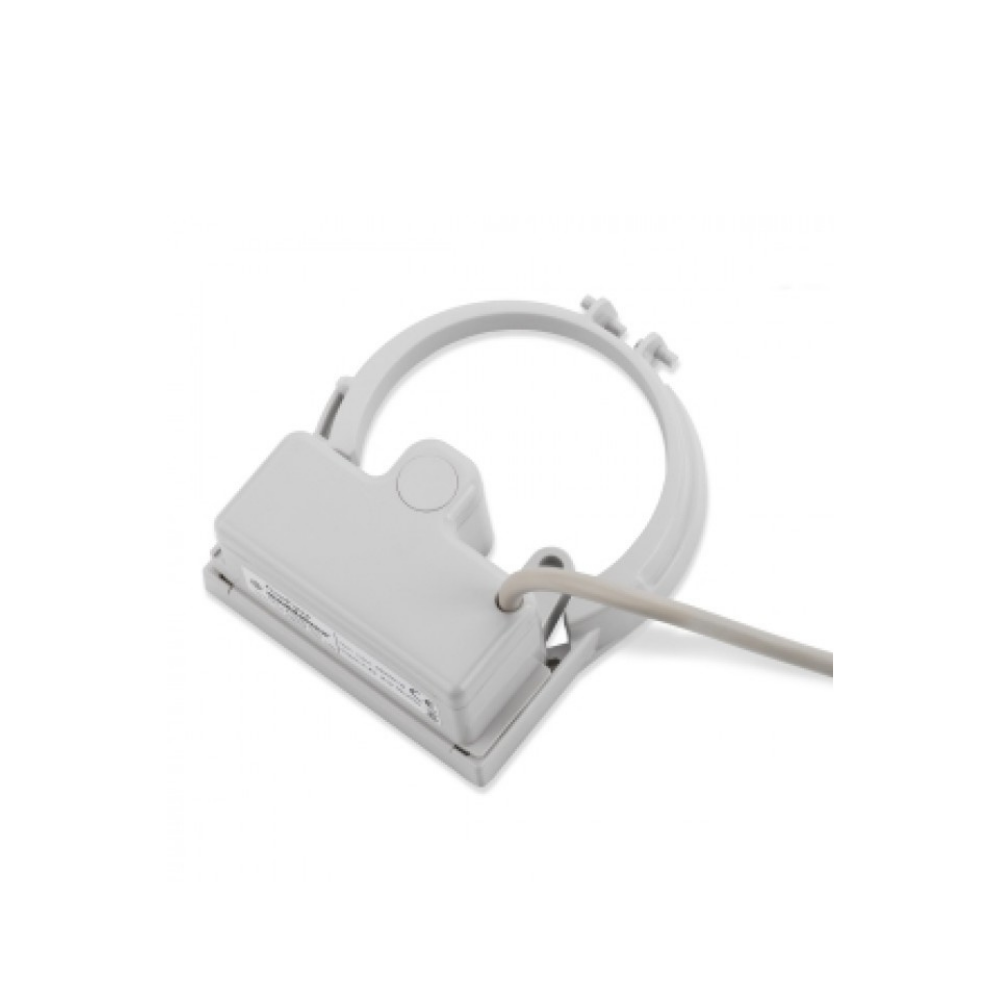

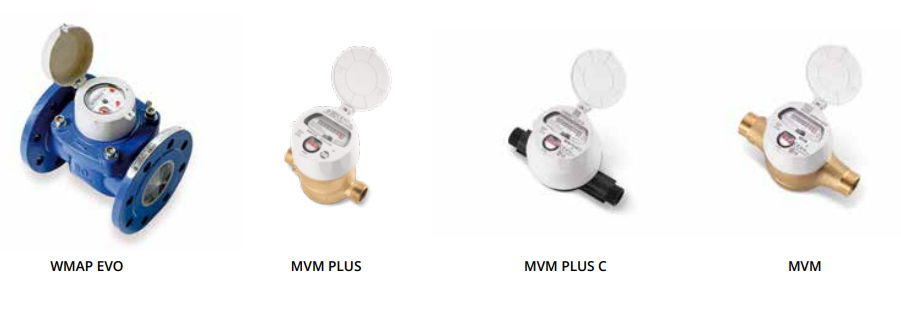

FlowPulse is a static pulse emitter designed to integrate Maddalena MVM, MVM PLUS C and WMAP EVO water meters into remote reading, dosing and monitoring systems. Based on a microprocessor and an inductive electronic sensor, it enables reliable pulse detection without affecting the meter’s metrological performance. The five-conductor structure allows pulse, flow direction, fraud signalling, ground and forward pulse counting to be managed. Thanks to its IP68 protection rating, environmental class C and electromagnetic class E2, FlowPulse is suitable for demanding technical applications. It can also be installed at a later stage on pre-equipped meters, simplifying upgrades and retrofits of existing systems.
• Static pulse emitter with NPN open collector output.
• Equipped with microprocessor and inductive electronic sensor.
• Five-conductor cable for complete signal management.
• Detects removal from the meter, useful for fraud signalling.
• Discriminates flow direction, distinguishing forward and reverse flow.
• Insensitive to mechanical vibrations.
• Can also be installed at a later stage on pre-equipped meters.
• Does not affect meter performance.
• Configurable with dual pulse output.
• IP68 protection rating
| Specification | Value |
|---|---|
| Type | Microprocessor, inductive pulser |
| Maximum pulse frequency | 4 Hz |
| Protection rating | IP 68 |
| Operating temperature | -10 °C ÷ +55 °C |
| Storage temperature | -20 °C ÷ +70 °C |
| Electromagnetic class | E2 |
| Environmental class | C |
| Power supply | 3 V lithium battery |
| Battery service life | 15 years (average duration under standard conditions) |
| Standard temperature profile used to calculate battery life |
between -10 °C and +0 °C for 10% of the service life between 1 °C and +30 °C for 80% of the service life between +31 °C and +55 °C for 10% of the service life |
| Specification | Value |
|---|---|
| Digital outputs (5 wires) | Pulse output, flow direction, fraud detection, ground, forward pulse counter |
| Output type | NPN open collector, 30 V cc, 50 mA cc |
| Pulse duration | 125 ms |
| Pulse factor | MVM / MVM PLUS C DN 15–DN 32: 1 pulse/litre DN 40: 1 pulse/10 litresWMAP EVO DN 50–DN 100: 1 pulse/10 litres DN 125–DN 200: 1 pulse/100 litres |
| Cable length | 2 m |
| EMC Directive 2014/30/EU | RoHS Directive 2011/65/EU and subsequent revisions |
| EN 61000-6-3:2007 | UNI EN14154-3:2005 |
| EN 61000-6-2:2005 | EN 50581:2012 |
| EN 62368-1:2014 + AC:2015 + AC:2017 + A11:2017 | |

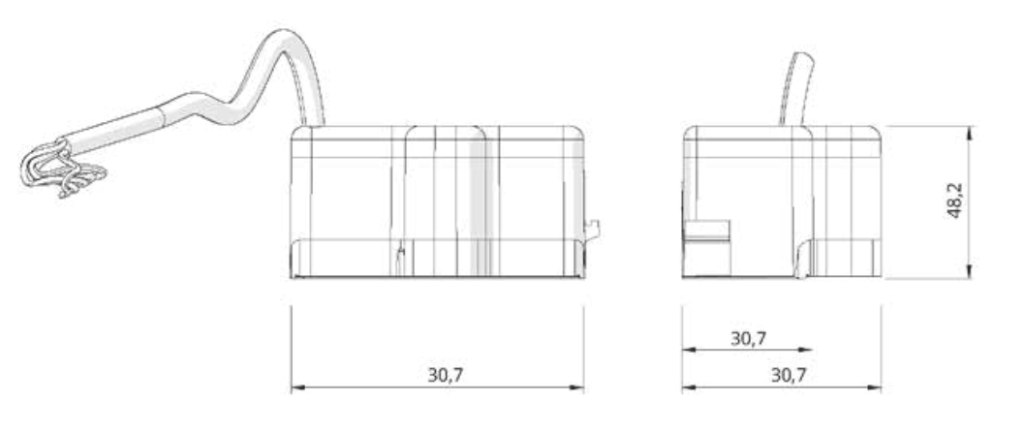

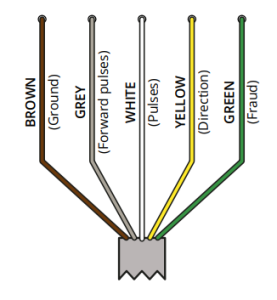

| Conductors | Signal | Description |
|---|---|---|
| White | Pulses | Signal both with forward flow and reverse flow |
| Yellow | Direction | Contact closed = reverse |
| Green | Fraud | Contact open = fraud |
| Brown | Ground | Common |
| Grey | Forward pulses | In case of reverse flow, the meter internally records the volume up to a maximum of 1,000 pulses. When normal flow is restored, no pulses are generated until the previously totalised volume value has been reset to zero. |
| For installation information, please refer to the instruction sheet. | ||
