MADDALENA E-BULK

E-BULK is the modern solution for large volume metering in the utility, industrial and commercial sectors. Thanks to the ease of use of ultrasonic technology in these fields, E-BULK provides excellent levels of performance in all conditions of installation. Its extremely low starting flow rate, its wide measuring range and the absence of moving parts allow the accounting of the entire consumption, making it easier to identify leaks. E-BULK makes mechanical meters obsolete, particularly combined meters. Robust, long lasting and suitable for the most challenging environments. It can be equipped with the latest remote data transmission technologies.

Ask a question

Description Technical Data Dimensions

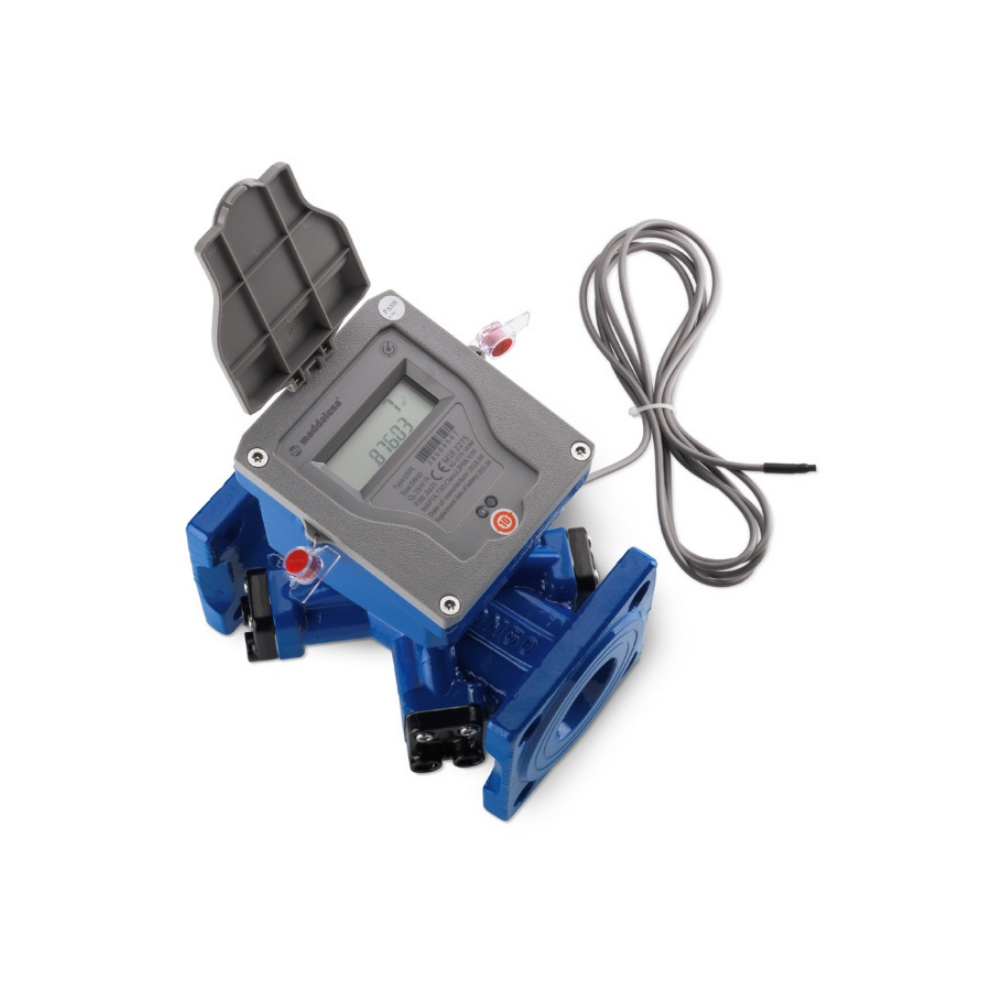

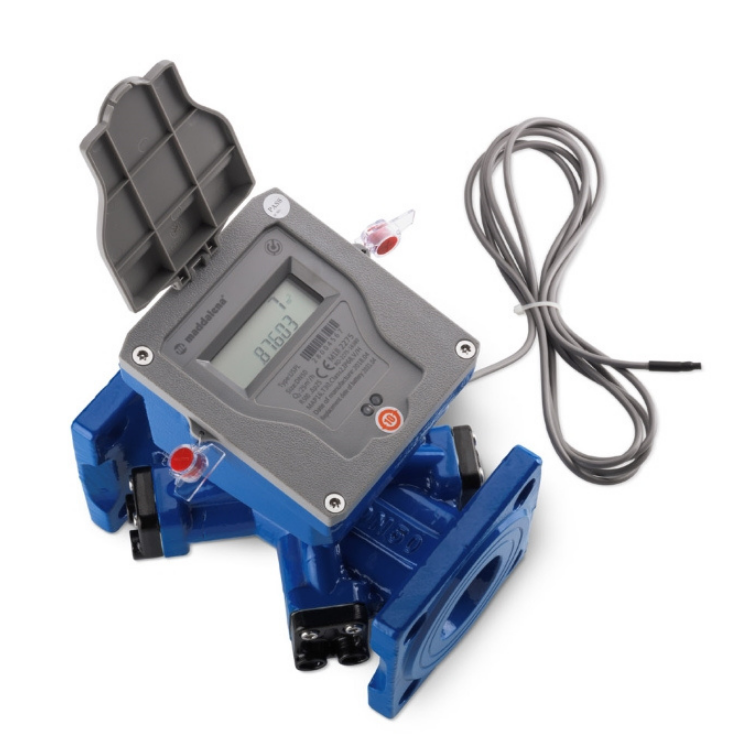

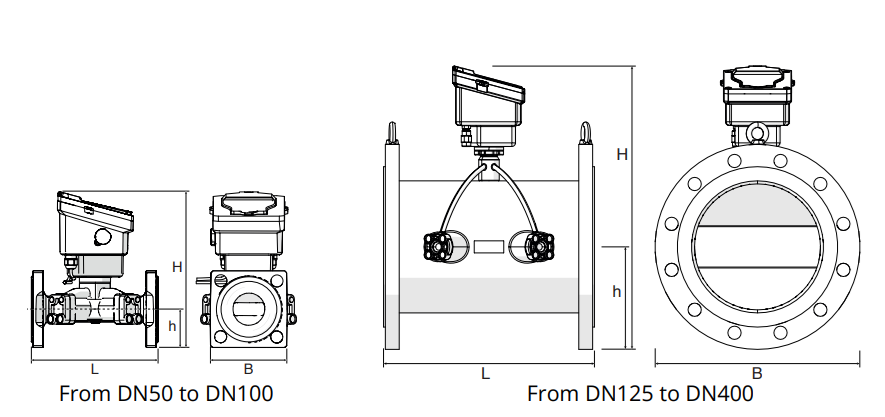

Maddalena E-BULK

STATIC METER

• Ultrasonic meter for cold water
• Ideal for large volumes for utilities and industrial use
• MID-certified: R max 800
• DN: 50÷400
• Optional 4-20mA analog output, 24V passive
• Health certifications available for a number of countries
• No moving parts
• Can be installed in all positions while maintaining its metrological characteristics
• Large display with information on volume, flow rate and alarms
• IP68 protection rating
• Battery life: 13 years

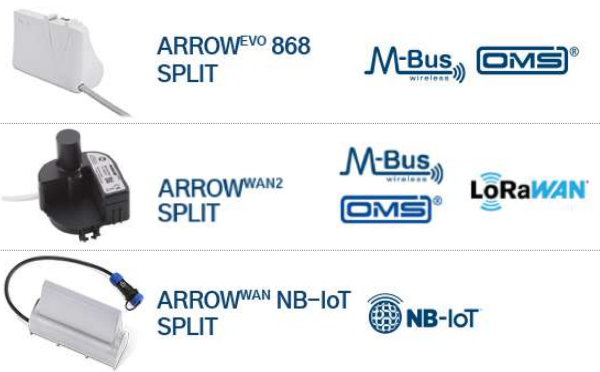

• Can be provided fitted with wired (Split) or integrated radio communication module (wireless m-Bus)
• Ready for pulse emitter (DN 50÷100) 1P=10L, (DN 125÷400) 1P=100L

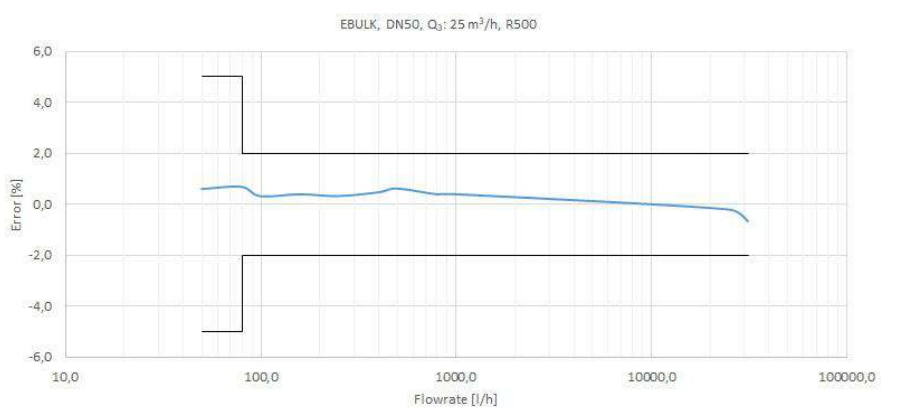

TYPICAL ERROR CURVE

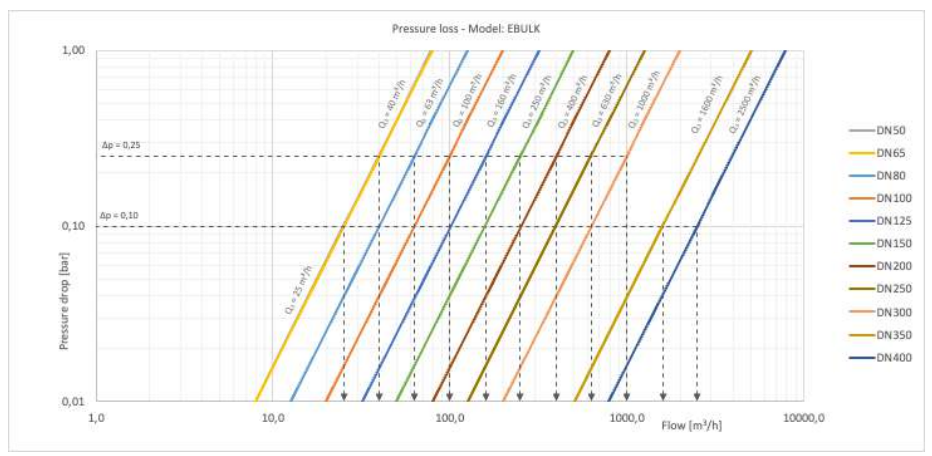

HEAD LOSS DIAGRAM

METROLOGICAL PERFORMANCE

Size	mm	50	65	80	100	125
	in	2	2 ½	3	4	5
Module B no.		RO-2275-19454
Module D no.		0119-SJ-A010-08
Q₃/Q₁ = R Referred to installation position		≤ 800
MID standard performance *
Q₃	m³/h	25	40	63	100	160
Q₄	m³/h	31,25	50	78,75	125	200
R		500
Q₁	l/h	50	80	126	200	320
Q₂	l/h	80	128	201,60	320	512

*Other value of R available upon request

TECHNICAL DATA

Maximum permissible error between Q₁ and Q₂ (excluded)		+/- 5%
Maximum permissible error between Q₂ (included) and Q₄		+/- 2% with water temperature ≤ 30°C +/- 3% with water temperature > 30°C
Temperature class		T30,T50
Flow profile sensitivity classes		U0 – D0
Starting flow rate	l/h	21	55	66	70	120
Head loss		ΔP25
Nominal pressure	bar	16
Maximum reading	m³	99.999.999				999.999.999
Minimum reading	l	1
Indicative weight	kg	10,3	13	16	17,25	25

METROLOGICAL PERFORMANCE

Size	mm	150	200	250	300	350	400
	in	6	8	10	12	14	16
Module B no.		RO-2275-19454
Module D no.		0119-SJ-A010-08
Q₃/Q₁ = R Referred to installation position		≤ 800
MID standard performance *
Q₃	m³/h	250	400	630	1000	1600	2500
Q₄	m³/h	312	500	787	1250	2000	3125
R		500
Q₁	l/h	500	800	1260	2000	3200	5000
Q₂	l/h	800	1200	2016	3200	5120	8000

*Other value of R available upon request

TECHNICAL DATA

Maximum permissible error between Q₁ and Q₂ (excluded)		+/- 5%
Maximum permissible error between Q₂ (included) and Q₄		+/- 2% with water temperature ≤ 30°C +/- 3% with water temperature > 30°C
Temperature class		T30,T50
Flow profile sensitivity classes		U0 – D0
Starting flow rate	l/h	120	240	280	320	430	770
Head loss		ΔP25
Nominal pressure	bar	16
Maximum reading	m³	999.999.999
Minimum reading	l	1
Indicative weight	kg	28	35	67	80	95	125
