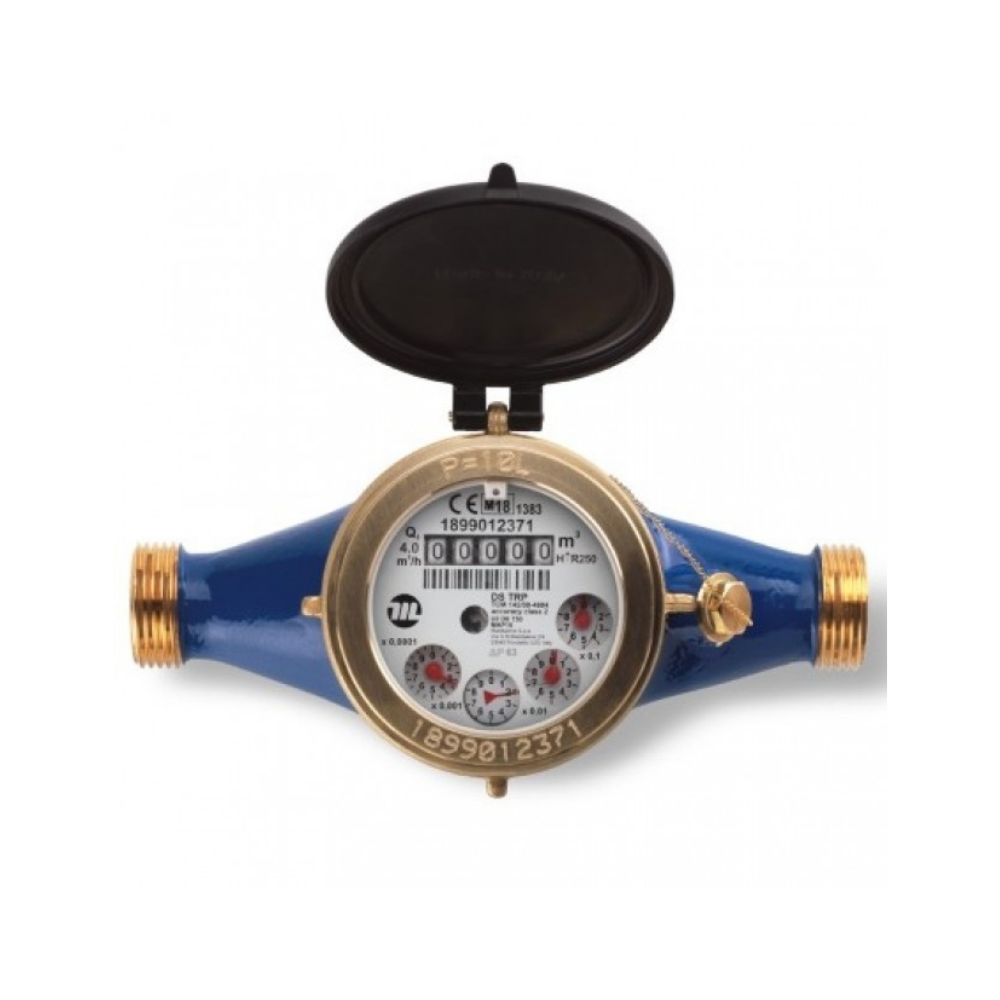

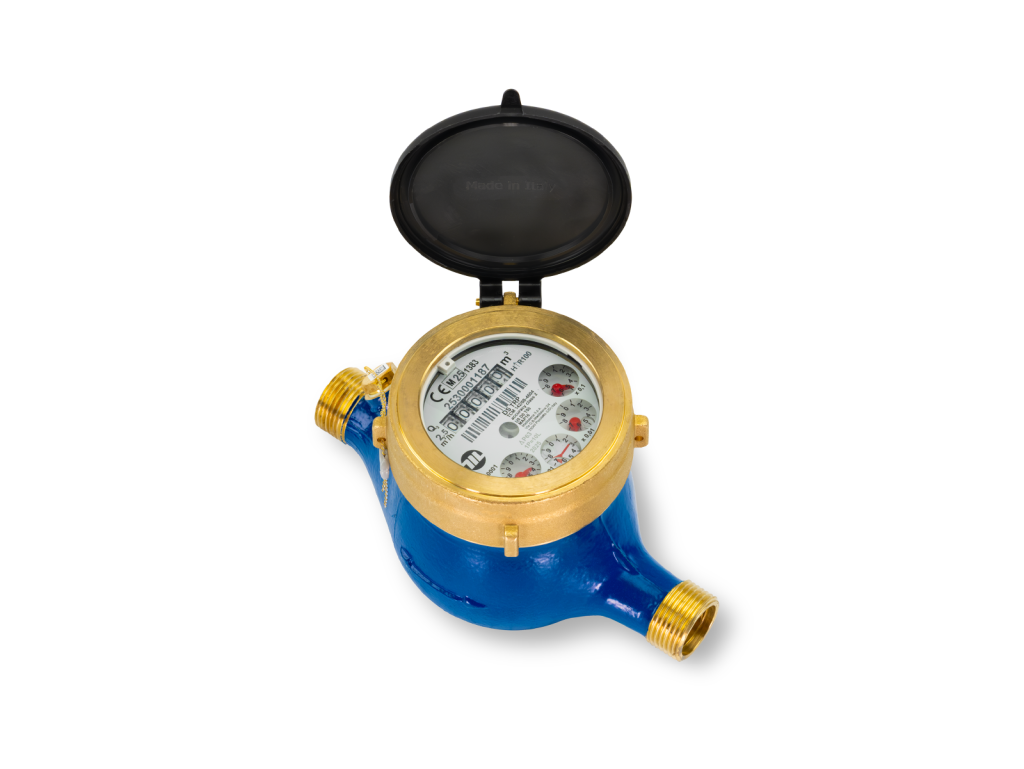

DS TRP represents the ultimate multijet meter expression. Thanks to its mechanical transmission, it offers high metrological performance and is insensitive to external magnetic fields. Its “protected rollers” solution, first developed by Maddalena, ensures perfect legibility over time. Robust, long lasting and suitable for the most challenging environments, it is compatible with all types of water. It can be equipped with the latest remote data transmission technologies.
• Protected rollers multi-jet meter for cold water
• Ideal for utilities and outdoor installations
• MID-certified: R max 200
• DN: 15÷50
• Health certifications available for a number of countries
• Mechanical transmission unaffected by external magnetic fields
• Mineral glass lens
• Number rollers, approval class and serial number are located in the protected part

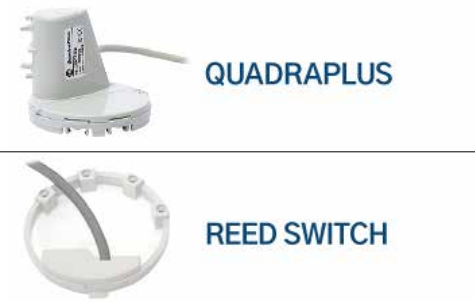

• Pre-equipped for optional reed switch (1P=1-10-100-1000L) or static pulse emitter (1P=1-10L)
| Size | mm | 15 | 20 | 25 | |
| pollici | ½ | ¾ | 1 | ||
| Module B no. | TCM 142/08-4604 | ||||
| Module D no. | 0119-SJ-A010-08 | ||||
| Q3/Q1=R Referred to installation position | H↑ ≤ 200* | ||||
| MID standard performance** | |||||
| Q₃ | m³/h | 2,5 | 4,0 | 6,3 | |
| Q₄ | m³/h | 3,13 | 5,00 | 7,88 | |
| R | 160 | ||||
| Q₁ | l/h | 400 | 630 | 1000 | |
| Q₂ | l/h | 640 | 1008 | 1600 | |
*For DN15 with L≤110, R=160
**Other values of R available upon request

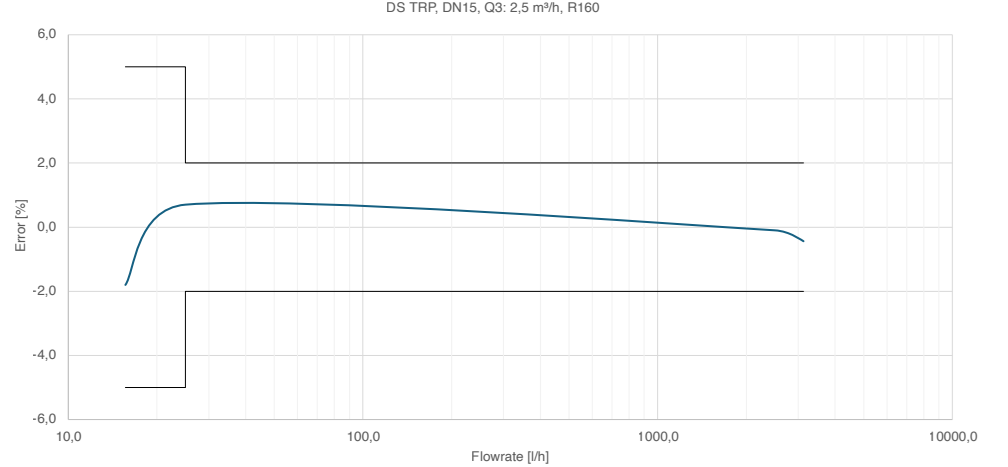

| Maximum permissible error between Q₁ and Q₂ (excluded) |
+/- 5% | ||||||||
| Maximum permissible error between Q₂ (included) and Q₄ |
+/- 2% with water temperature ≤ 30°C +/- 3% with water temperature > 30°C |
||||||||
| Temperature class | T30, T50 | ||||||||
| Flow profile sensitivity classes | U0 – D0 | ||||||||
| Starting flow rate | l/h | 4-5 | 7-9 | 16-18 | |||||

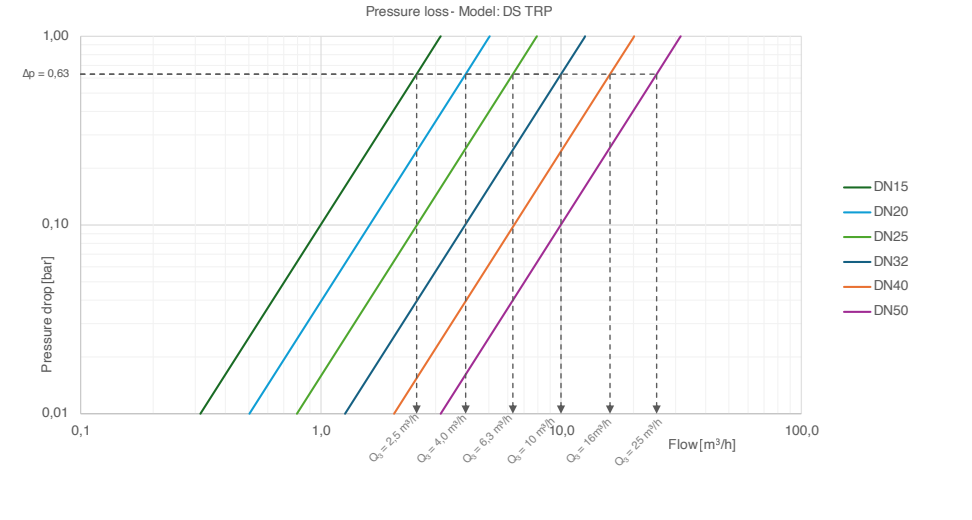

| Head loss | ΔP63 | ||||||||
| Nominal pressure | bar | 16 | |||||||
| Maximum reading | m³ | 99.999 | |||||||
| Minimum reading | l | 0,05 | |||||||
| Indicative weight | kg | 1,45 | 1,61 | 2,3 | |||||
| Size | mm | 32 | 40 | 50 | |
| pollici | 1 ¼ | 1 ½ | 2 | ||
| Module B no. | TCM 142/08-4604 | ||||
| Module D no. | 0119-SJ-A010-08 | ||||
| Q3/Q1=R Referred to installation position | H↑ ≤ 200 | ||||
| MID standard performance** | |||||
| Q₃ | m³/h | 10,0 | 16,0 | 25,0 | |
| Q₄ | m³/h | 12,50 | 20,0 | 31,25 | |
| R | 160 | ||||
| Q₁ | l/h | 62,50 | 100 | 156,25 | |
| Q₂ | l/h | 100 | 160 | 250 | |
**Other values of R available upon request
| Maximum permissible error between Q₁ and Q₂ (excluded) |
+/- 5% | ||||||||
| Maximum permissible error between Q₂ (included) and Q₄ |
+/- 2% with water temperature ≤ 30°C +/- 3% with water temperature > 30°C |
||||||||
| Temperature class | T30, T50 | ||||||||
| Flow profile sensitivity classes | U0 – D0 | ||||||||
| Starting flow rate | l/h | 22-24 | 28-30 | ||||||
| Head loss | ΔP63 | ||||||||
| Nominal pressure | bar | 16 | |||||||
| Maximum reading | m³ | 99.999 | 999.999 | ||||||
| Minimum reading | l | 0,05 | |||||||
| Indicative weight | kg | 2,4 | 7,7 | 7,6 | |||||

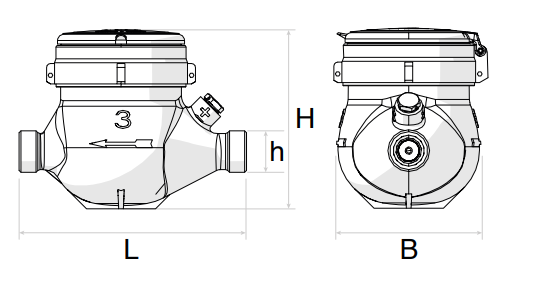

| Size | mm | 15 | 20 | 25 | |
| in | ½ | ¾ | 1 | ||
| Thread | in | G ¾ B | G 1 B | G 1 ¼ B | |
| L | mm | 110/130/145/165/170/190 | 160/190 | 260 | |
| H | mm | 115 | 117 | 125 | |
| h | mm | 36,5 | 36,5 | 43 | |
| B | mm | 97 | |||
| Size | mm | 32 | 40 | 50 | |
| in | 1 ¼ | 1 ½ | 2 | ||
| Thread | in | G 1 ½ B | G 2 B | G 2 ½ B | |
| L | mm | 260 | 300 | 270/300 | |
| H | mm | 125 | 143 | 175 | |
| h | mm | 43 | 46 | 55 | |
| B | mm | 97 | 130 | 154 | |
For more information on all the accessories available, consult the specific technical data sheets on the website www.maddalena.it
