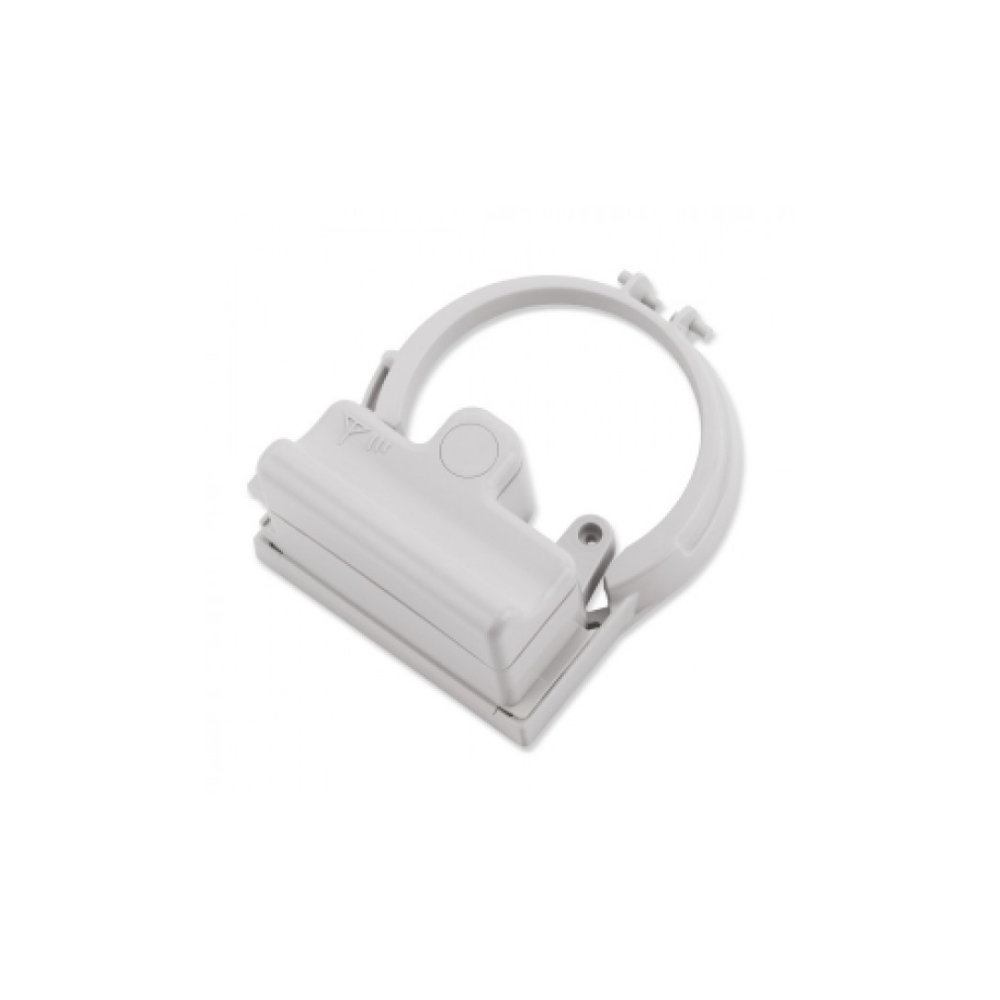

Compact wM-Bus radio module for drive-by and fixed network remote data reading. Also available in a standalone version for connection to compatible pulse emitting meters. Arrow EVO is also suitable for difficult Utility installations (IP68). The configuration of the radio module can be changed using a dedicated configuration kit (optional) and Android app.
Compact radio module with built-in bidirectional inductive sensor, designed for Maddalena MVM, MVM PLUS C and WMAP EVO water meters. Add-on version also available. It mounts on compatible pulsed meters. Designed for reading remotely consumption data and alarms, ensuring ease and efficiency. It is ready for use and the factory settings enable both mobile (walk-by) and fixed (AMR) reading. The factory settings can be changed locally via radio with the configuration kit (optional).
Based on the inductive principle, which ensures insensitivity to magnetic interference fields, the internal sensor of ArrowEVO detects the revolutions of the meter’s pointer, calculates the volume (in both directions) and manages the alerts. The module manages the following alarms: overflow (the threshold must be activated and can be configured), backflow (threshold set, can be configured), leak, meter blocked or non-used (days threshold set, configurable), magnetic and mechanical tampering (removal). ArrowEVO complies with the wM-Bus data communication protocol regulated at European level by the standard EN 13757. This ensures interoperability with different reading systems, as well as by third parties.

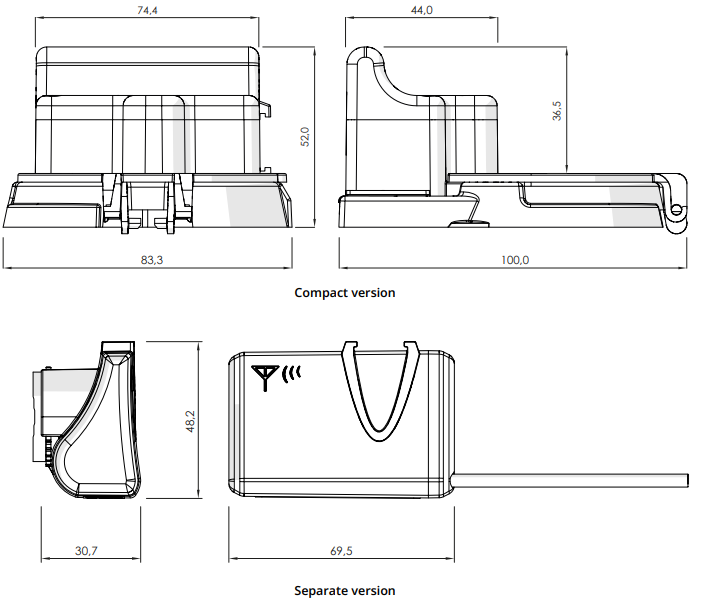

| Specification | Value |
|---|---|
| Sensor | Inductive (bidirectional) or pulse input (add-on module) |

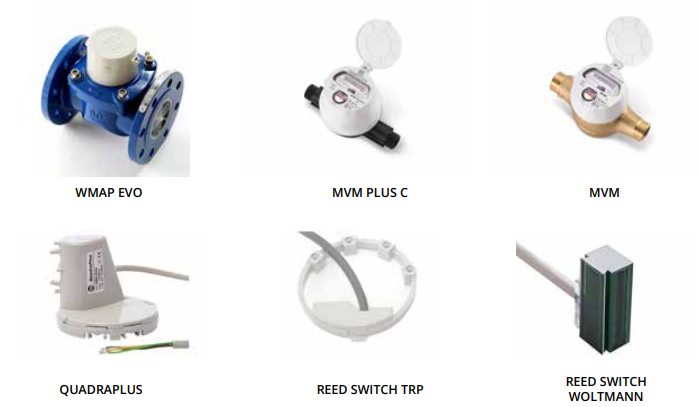

| Compatible meters | MVM, MVM PLUS C, WMAP EVO or pulsed meters |
| Sensor resolution | Configurable |
| Alarms | Tampering, magnetic fraud, backflow, suspected leak, meter blocked, maximum flow rate, meter inverted, removal |
| Configuration | Via radio (local interface) |
| Power supply | Battery, service life up to 15 years (depending on the selected configuration) |
| Approvals | CE in accordance with European standards |
| EMC Standards | EN 610000-4-2, EN 610000-4-3, ETSI EN 301 489-1 v1.9.2, ETSI EN 301 489-3 v1.6.1, ETSI 300 220 |
| ISO Standard | ISO 4064 Ancillary device 6.3 |
| Radio standard | Wireless M-Bus, OMS 4.0* |
| Radio modes | C1*, T1 |
| Frequency | 868 MHz |
| Transmission distance | 500 m (line of sight) |
| Reference standards | EN 13757; short frame and very short frame are OMS approved |
| Data transmitted | Short frame: current volume, volume on billing dates, meter serial number, alarms. Very short frame*: current volume, volume on billing dates, meter serial number, alarms. Long frame: same as short frame plus values of the latest 12 months. Arrow frame: current volume, historical volume, billing date, alarms. |
| Storage temperature | -20 °C to +60 °C |
| Operating temperature | -10 °C to +55 °C |
| Protection rating | IP68 |
Maddalena offers a full range of radio transceivers for mobile (walk-by) and fixed (AMR) reading. They are compatible both
with Maddalena water meters featuring a wM-Bus interface and with water meters from other brands complying with the
standard EN 13757. The main software and devices for mobile reading are described below.
Specifically designed for reading wM-Bus devices and changing the factory settings. Available with an antenna that can be connected remotely (kit for car use on request). Low in price and easy to use.
Powerful and fast wM-Bus radio receiver with built-in rechargeable battery, Bluetooth
communication interface. Windows and Android APP
Mobile reading software for O.S. Windows and Android for Maddalena mobile radio receivers.
The version for Android devices is specifically designed for drive-by reading and enables georeferencing of the meters
location.
