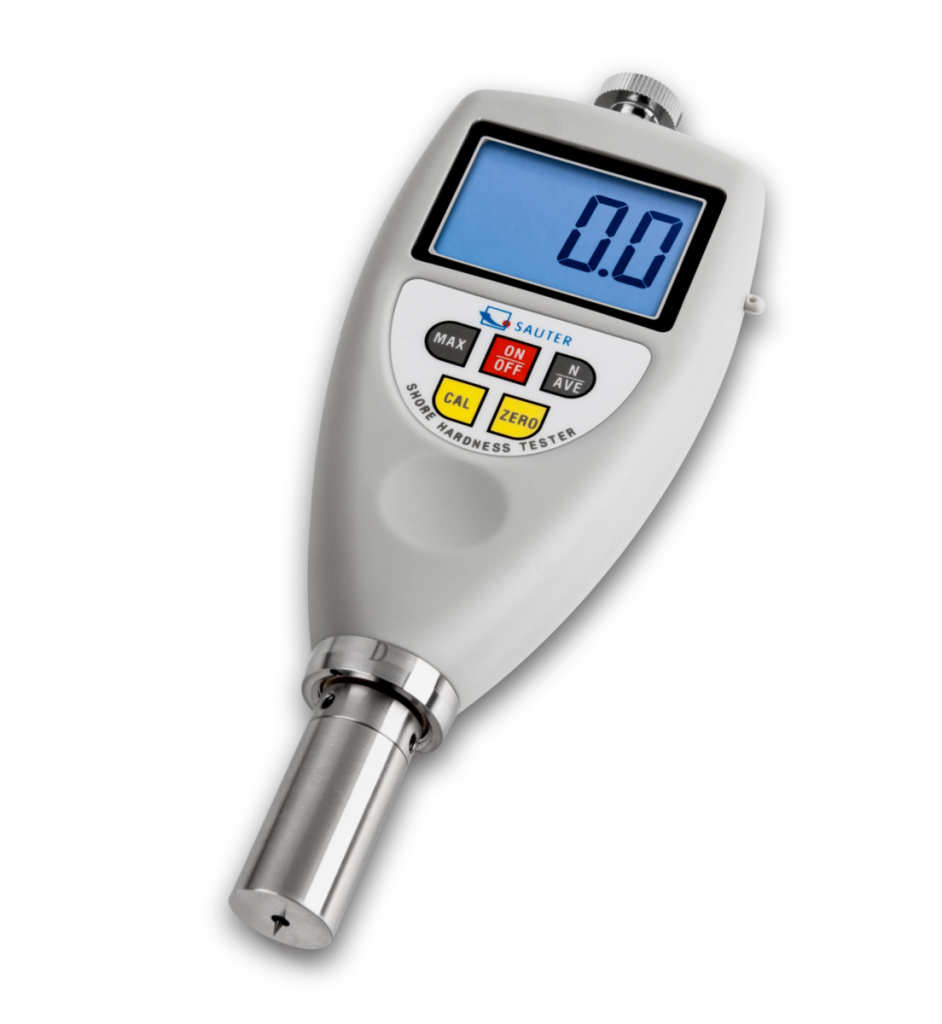

KERN Digital Shore hardness tester HDD 100-1

KERN Digital Shore hardness tester HDD 100-1

Professional Shore hardness tester

  • To measure the hardness of plastics through penetration measurement
  • Shore D
  • Delivered in a robust carrying case
  • Particularly recommended for internal comparison measurement. Standard calibrations e.g. to DIN 48-4 are not possible because of very narrow standard tolerances
  • Can be attached to the test stand SAUTER TI-DL
  • Large display with backlight
  • Selectable: AUTO-OFF function or continuous operation, battery level indicator
Hardness scales Shore D
Measuring range Shore [Max] 100 HD
Readability Shore [d] 0,1 HD
Tolerance (% of [Max]) 1%
Scale – Display type Digital
Battery 2×1.5 V AAA
Hold function
Peak function
Function for averaging
Material housing plastic
Measuring probe diameter 18 mm
Test force Hardness measurement 50 N
GTIN/EAN number 4045761139596
  • Plastics technology
  • Medical technology
  • Automotive industry
  • Packaging industry
  • Food industry
