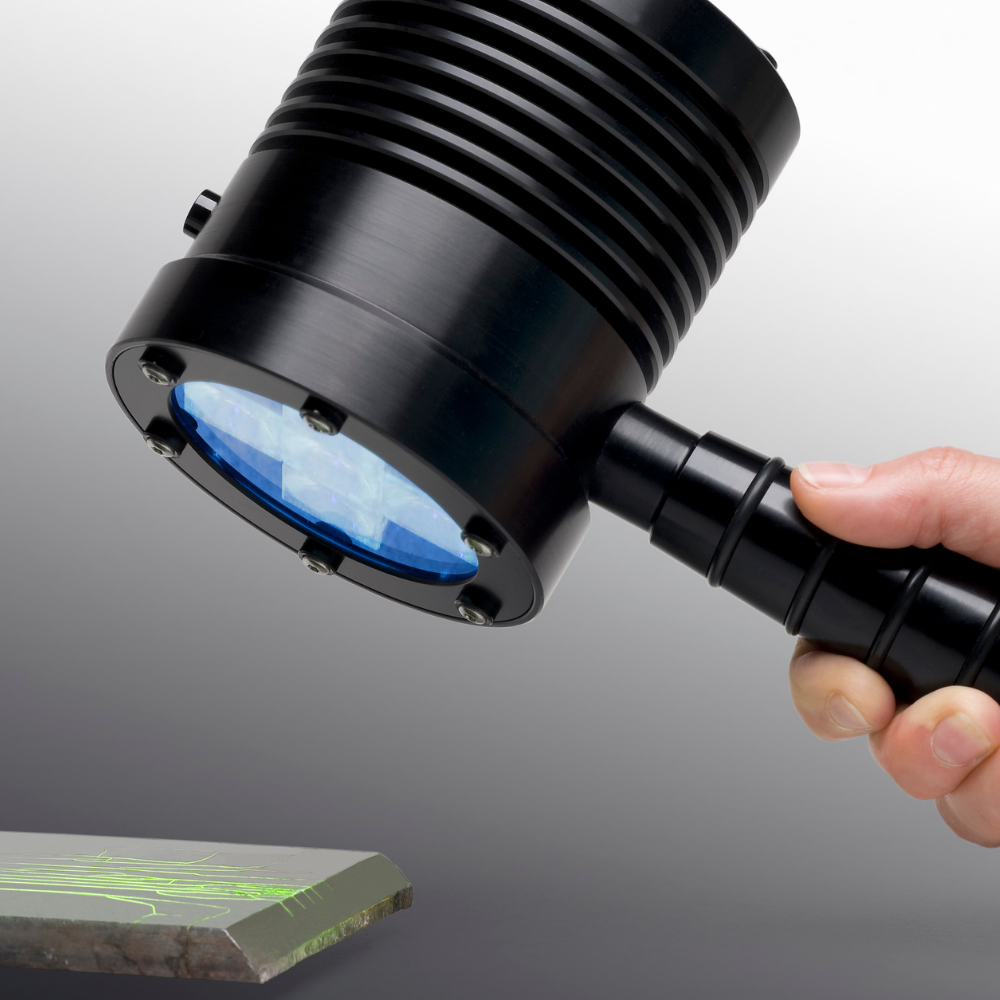

Karl DEUTSCH UV LED Combi Hand Lamp 3815, UV lamp compliant with risk class 2, shock-resistant and water-proof, swichable to white light

The portable hand lamp for mains and battery operation

A quantum leap for the generation of mobile UV light used for penetrant and magnetic particle inspection: Instead of conventional glow-discharge bulbs, four light-weight and insensitive high-power UV LEDs with more than 10,000 hours operating time are used. Another white light LED, which is located in the front centre permits to change to white light mode simply by pressing a momentary push button. The lamp is ready to operate immediately after power-on, provides a high UV intensity and a uniform distribution of intensity. The grading into risk class 2 (according to the German standard EM 6) meets the requirements of working safety for a low UV radiation exposure.

Ask Question
Category: Product ID: 2968

Description

UV LED Combi Hand Lamp 3815

UV lamp compliant with risk class 2, shock-resistant and water-proof, swichable to white light



Application



The new high-power UV LEDs easily can replace conventional glow-discharge lamps in the field of mobile generation of UV light.

This makes it possible to tread new design paths and, simultaneously, to increase cost effectiveness and working quality.

The new LED UV lamp is small, compact, water-proof (IP65) and insensitive to vibrations.

Due to the exceptionally long operating life of the LEDs no change of illuminants usually is required.

The all-aluminium housing is small and handy. The heat dissipation is accomplished without fans via the black-anodized housing.

Thanks to the LED technology no filter glass is required in UV mode. The strict limitation to UV-A light with a wave length of 365 nm completely excludes danger by UV-B / UV-C radiation, even with defective protection glass.

The total cable length of 4.60 m between mains connector and lamp permits a large radius of action with mains operation.



Mains-independent operation



A completely mains independent use is possible by means of the handy, pocket-sized battery pack (154 mm x 96 mm x 33 mm) which allows up to 2.25 hours permanent operation.



ORDERING INFORMATION



UV LED combi hand lamp incl. mains unit 3815.501
UV LED combi hand lamp incl. mains unit,
ASTM 3022 and RRES 90061 compliant
3815.090
Battery pack for UV LED hand lamp 3815.520
Charger unit for battery pack 3815.570
