Magnetic Particles Testing DEUTROPULS Hand Yokes
Mobile crack detection on small and large components
Available in two versions:
The 230 V AC version can be connected to the power supply system either directly or via an isolating transformer (230 V promary / 230 V secondary) for alvanic isolation. The 42 V AC version (low supply voltage is fed by an isolating transformer (order no. 3850.242) which is connected primary to 230 V and provides a secondary voltage of 42 V or 35 V respectively.
We make a point of safety!
Every DEUTROPULS Hand Yoke is subjected to an earth conductor test and is high-voltage resistant. Die 230 V version is protected against overheating by an integrated temperature sensor.
DASt directive 022 „Hot-dip galvanizing of supporting structural steelwork“
The new attachment poles ensure reliable magnetic particle testing through hot-dip galvanizings and thus permits testing in compliance with the DASt directive 022.
With the newly developed, geometrically optimized attachment poles of the hand yoke a field strength of more than 4 kA/m (40 A/cm) is achieved permitting magnetic particle testing of weld seams through the galvanizations. The magnetizing time and the post-magnetizing time is 6 seconds each. If required, available DEUTROPULS Hand Yokes can be retrofitted with these special attachment poles.

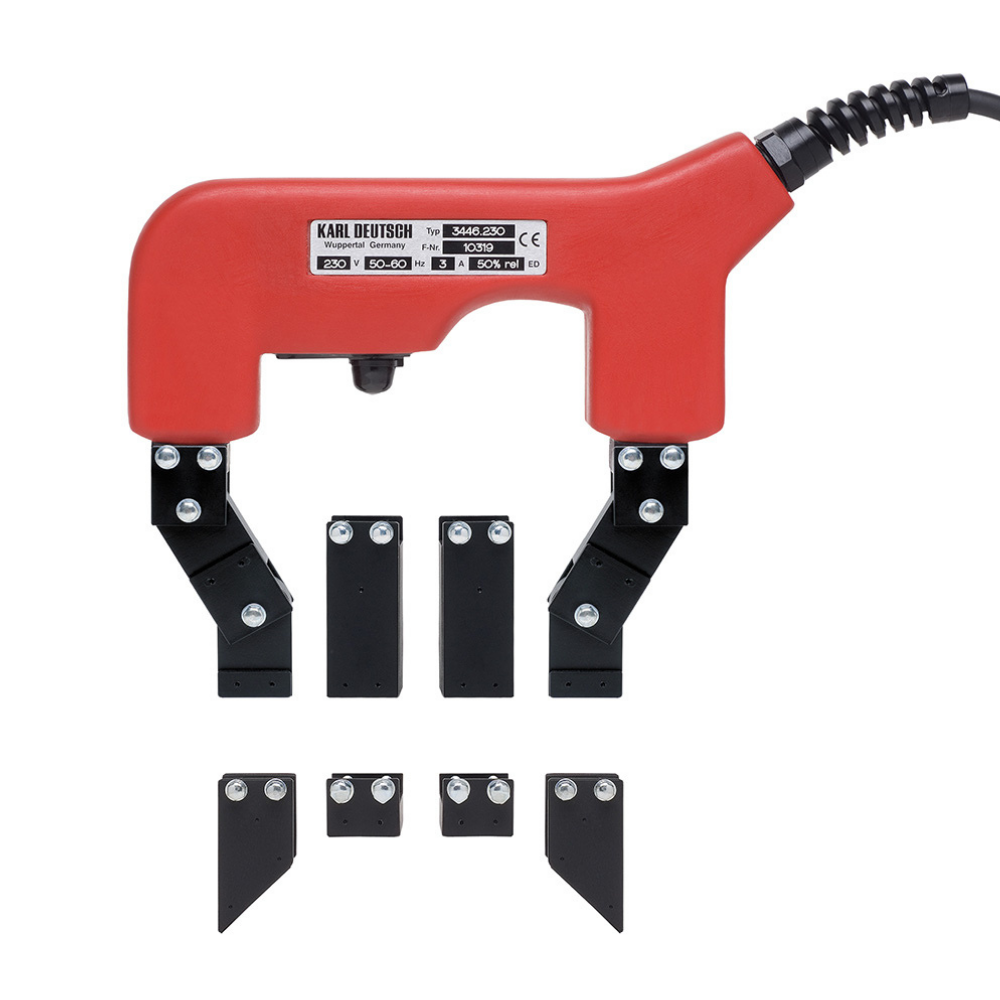

Hand yoke with new attachment poles for testing according to the DASt directive 022
