Description

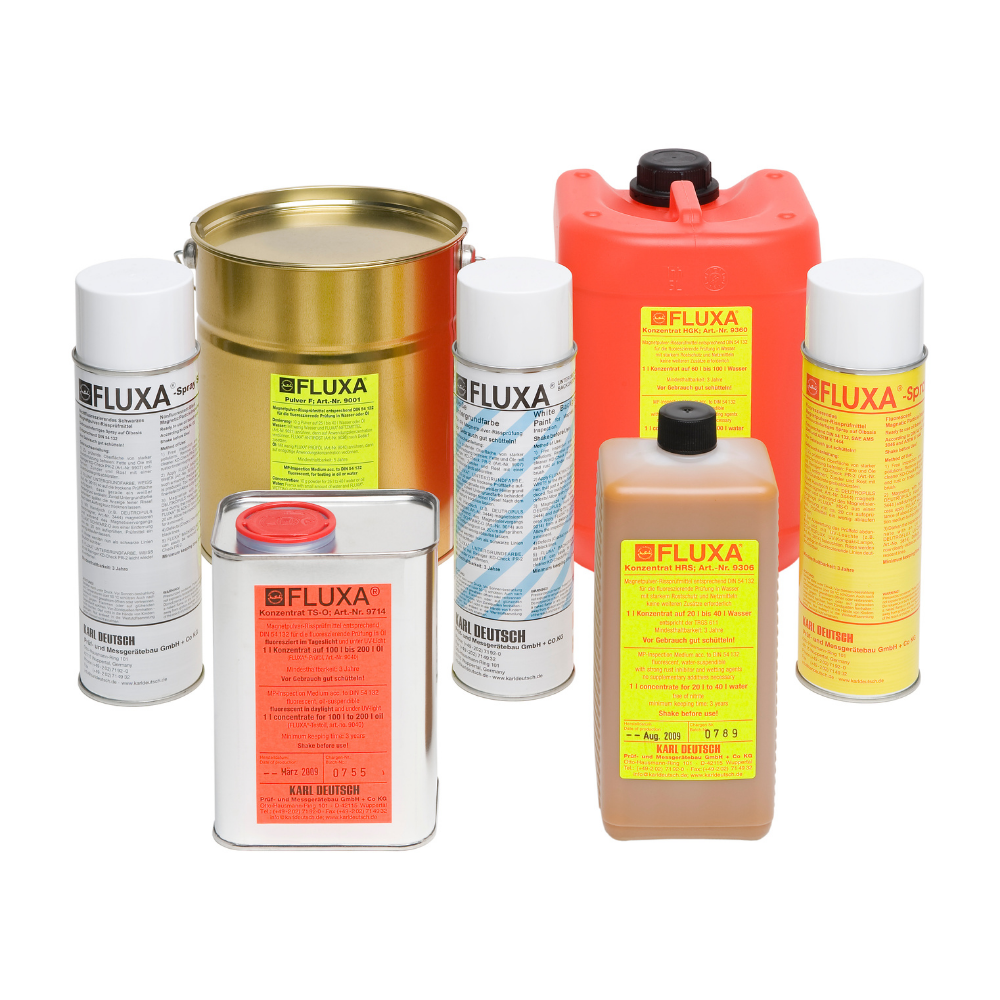

FLUXA® Inspection Media
for magnetic particle testing
The premium choice for testing under UV-light
FLUXA® Ready Concentrates: Easiest way of preparation.
You only need water to obtain the ready-to-use suspension. The contained additives are sufficient for nearly all cases.
FLUXA® Medium Concentrates: Optimum compromise between price and preparation procedure
The medium concentrates already contain wetting agent and a certain amount of rust inhibitor which will be sufficient for most testing tasks. In that case, only water must be added.
FLUXA® High Concentrates: Cheapest types of concentrates.
Even for these concentrates the often troublesome mixture of powder in water is not required. However, rust inhibitor and wetting agent must be added.
FLUXA® Powder (wet process): Universally applicable and cheapest possibility.
FLUXA® Powders designed for the wet process are based on iron oxides. Thus, rust and quick settling are avoided.
FLUXA® – Ready-to-use
Ideally suitable for manual testing of single parts or on-site.
Our current FLUXA® leaflet provides an excellent overview of the diversity of our magnetic particle inspection media and assists you to find out which FLUXA® testing agent fits best to your needs. Please download it from our downloads page or click on the thumbnail below.DEUTROFLUX® Powder (dry process) article nos. 9030 – 9033:
These powders are used for the dry process, e.g. to meet certain U.S. prescriptions or for vortex chamber testing. The powder is applied on the specimen without a carrier medium, i.e. blown over the workpiece, or the residually magnetized workpiece is dipped into the powder bath of the vortex chamber. Suitably fine and coarse qualities should be mixed for these purposes.
Standards and Specifications for each FLUXA® testing agent are described in detail within the appropriate Technical Information Sheets and Material Safety Data Sheets (MSDS) which can be obtained directly from our download section.
