Description

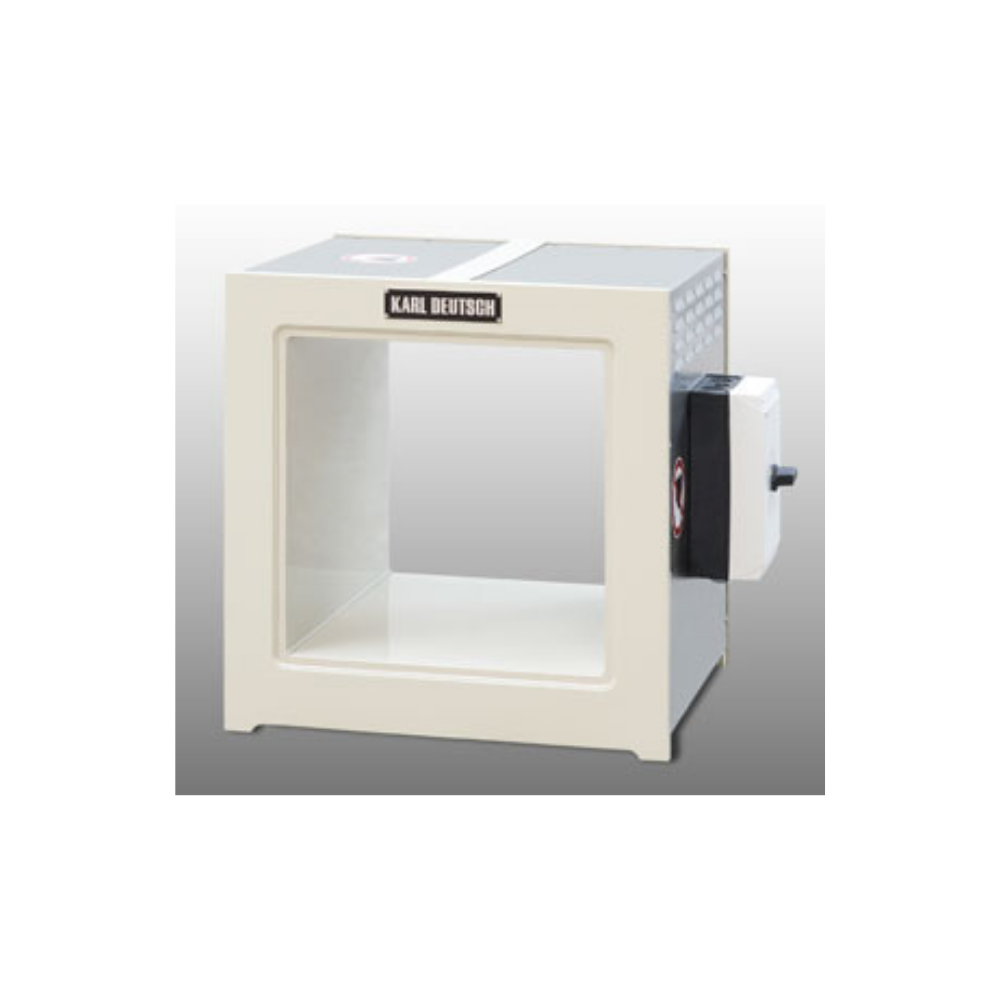

ESV Demagnetizing Coils
Accessory for Magnetic Particle Crack Detection
Technical data and order numbers
- Magnetic field strengths > 20 kA/m (> 250 Oe)
| Type | Order no. | Connection voltage | I min [A] | I max [A] | W [mm] | H [mm] | D [mm] |
| ESV 100S MSV 100 S |
3601.1 3460.1011 |
400 V | 2.3 | 2.7 | 265 | 285 | 200 |
| ESV 150S MSV 150 S |
3602.1 3460.1501 |
400 V | 5.0 | 5.6 | 340 | 360 | 250 |
| ESV 200S MSV 200 S |
3603.1 3460.2011 |
400 V | 14.4 | 16.8 | 400 | 435 | 310 |
| ESV 300S MSV 300 S |
3604.1 3460.3011 |
400 V | 15.0 | 17.3 | 450 | 470 | 410 |
| ESV 400S MSV 400 S |
3605.1 3460.4011 |
400 V | 32.5 | 35 | 560 | 580 | 520 |
| ESV 500S MSV 500 S |
3606.1 3460.5011 |
400 V | 59 | 63 | 660 | 710 | 660 |
The coil type MSV is fitted with a waterproof case. The mechanical size of which may deviate slightly against the above stated.
