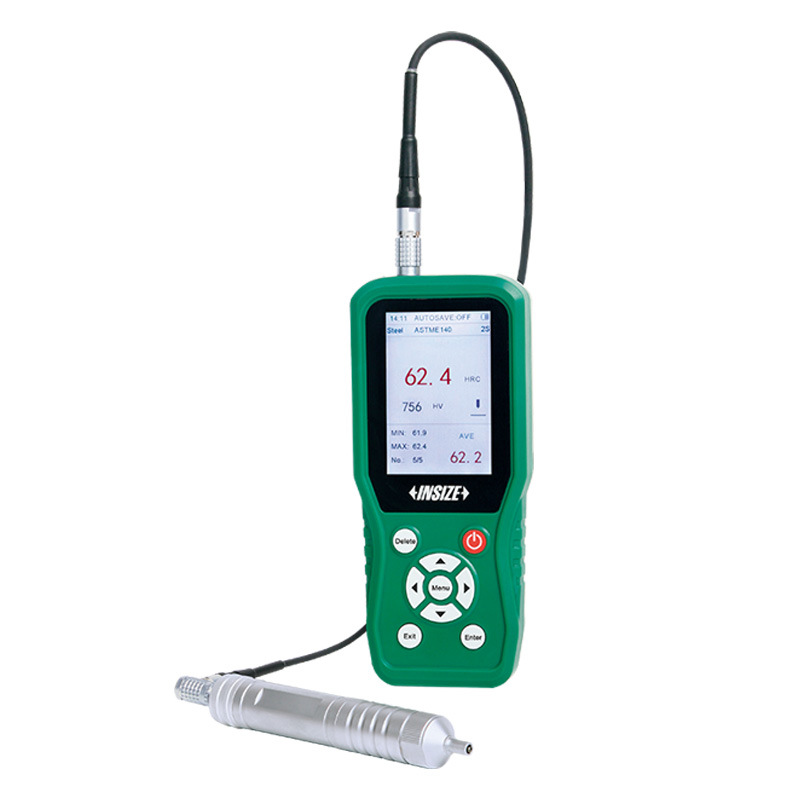

INSIZE Ultrasonic Hardness Testers

Portable ultrasonic hardness tester designed for fast and precise hardness measurement of metal materials. Features a compact lightweight design, 360° measurement capability, rapid testing with results in as little as 1 second, multiple hardness scale conversion, data storage, and minimal surface damage using the UCI (Ultrasonic Contact Impedance) method.

Ask a question

Description Specification Video

Small size, light weight, portable, convenient for on-line measurement and can be used to measure large workpieces
Support 360°measurement, fast test speed, the fastest results in 1 second
Standard Vickers indentation, small test indentation and low damage to the workpiece
100 measurement data sets and 10 calibration data sets can be stored

Code	Measurement Range	Convertible parameters	Printer
9646-300	50-1599HV, 20-68HRC, 85-650HB, 41-100HRB, 61-85.6HRA, 34.2-97.3HS, 255-2180MPa	HRA, HRB, HRC, HBW, HS, MPa	without printer
9646-301	50-1599HV, 20-68HRC, 85-650HB, 41-100HRB, 61-85.6HRA, 34.2-97.3HS, 255-2180MPa	HRA, HRB, HRC, HBW, HS, MPa	with Bluetooth printer
9646-310	50-1599HV, 20-68HRC, 85-650HB, 41-100HRB, 61-85.6HRA, 34.2-97.3HS, 255-2180MPa	HRA, HRB, HRC, HBW, HS, MPa	without printer
9646-311	50-1599HV, 20-68HRC, 85-650HB, 41-100HRB, 61-85.6HRA, 34.2-97.3HS, 255-2180MPa	HRA, HRB, HRC, HBW, HS, MPa	with Bluetooth printer
