Sākums/Products/INSIZE Portable Leeb Hardness Testers (Basic Type) HDT-LP Series

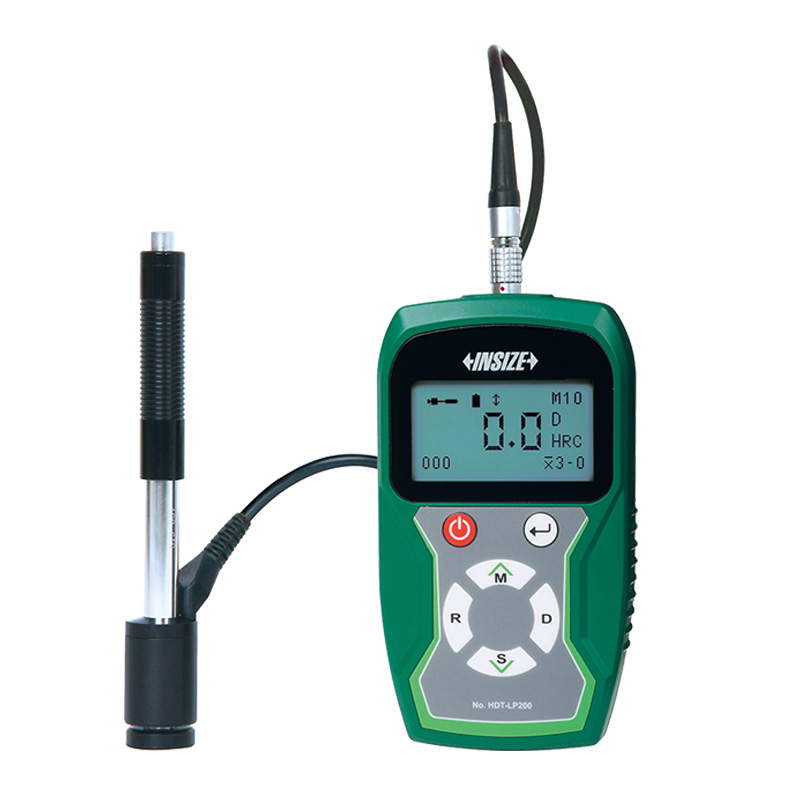

INSIZE Portable Leeb Hardness Testers (Basic Type) HDT-LP Series

Portable Leeb hardness tester designed for fast and accurate metal hardness measurement in workshop and field applications. Features interchangeable probes, a high-accuracy dual-coil sensor, and automatic conversion to multiple hardness scales including Vickers, Brinell, Rockwell, Shore, and tensile strength values. The device includes a backlit LCD display, statistical functions, memory storage for up to 300 measurements, and USB data transfer capability for efficient reporting and analysis.

Ask a question

Description Specification Video

The dual telecentric optical system ensures sharp edges wiCan change probes
Dual-coil probe for high accuracy
Universal testing angle, no need to set impact direction
Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRB, HRA), Shore (HSD) and tensile strength (σb)
Dual value display, shows both Leeb and converted hardness
Large LCD display with backlight
Can choose large font display and statistics display
Automatically calculate maximum, minimum and average value
Save 300 datathout losing accuracy even for misaligned targets

Code	Range	Power supply	Printer
HDT-LP200	HL 170-960/HRC 17-70/HRB 13-109/HRA 7-89/HB 20-655/HV 80-940/HSD 32-99.5/σb(rm)255-2639N/mm²	2×AA batteries	not included
HDT-LP200WL	HL 170-960/HRC 17-70/HRB 13-109/HRA 7-89/HB 20-655/HV 80-940/HSD 32-99.5/σb(rm)255-2639N/mm²	2×AA batteries	not included
HDT-LP200B	HL 170-960/HRC 17-70/HRB 13-109/HRA 7-89/HB 20-655/HV 80-940/HSD 32-99.5/σb(rm)255-2639N/mm²	main unit: 2×AA batteries, printer: rechargeable lithium battery	included
