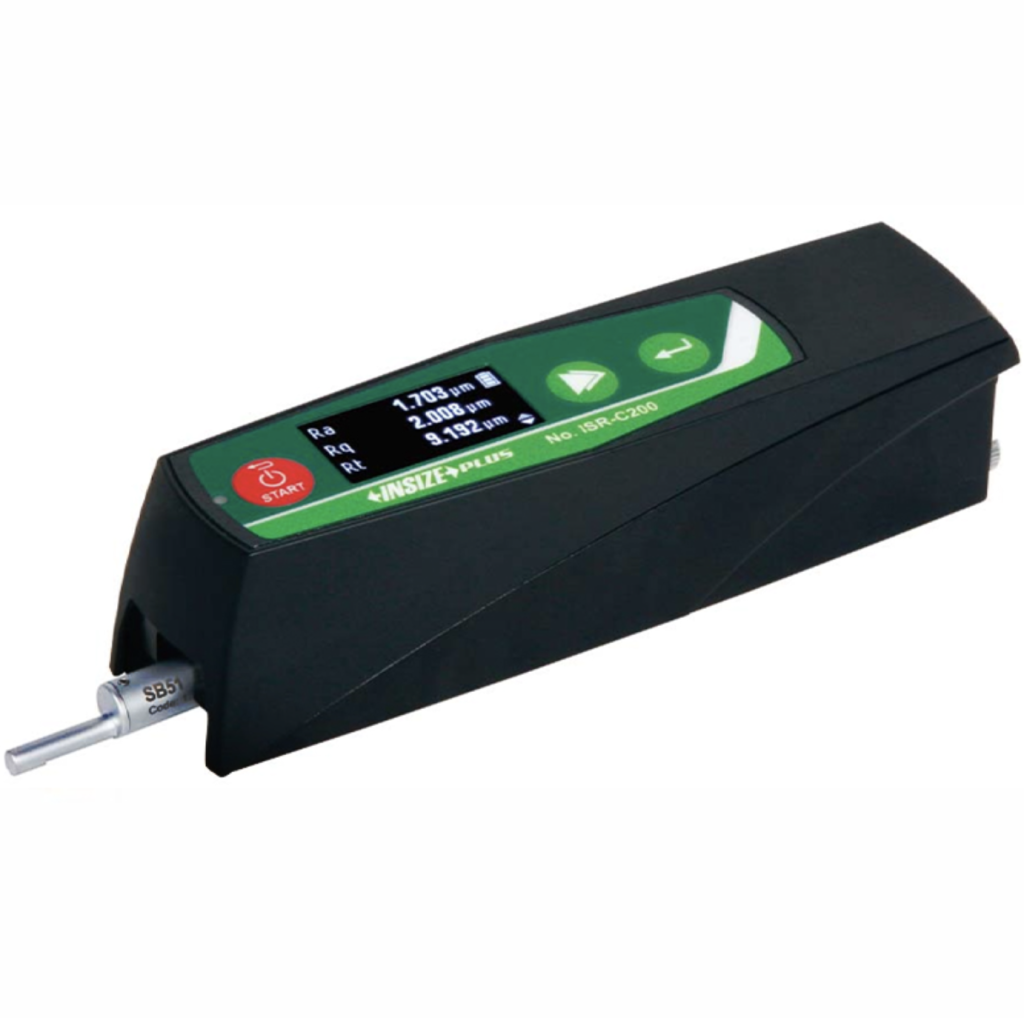

Insize ISR-C200 Compact Type Roughness Tester

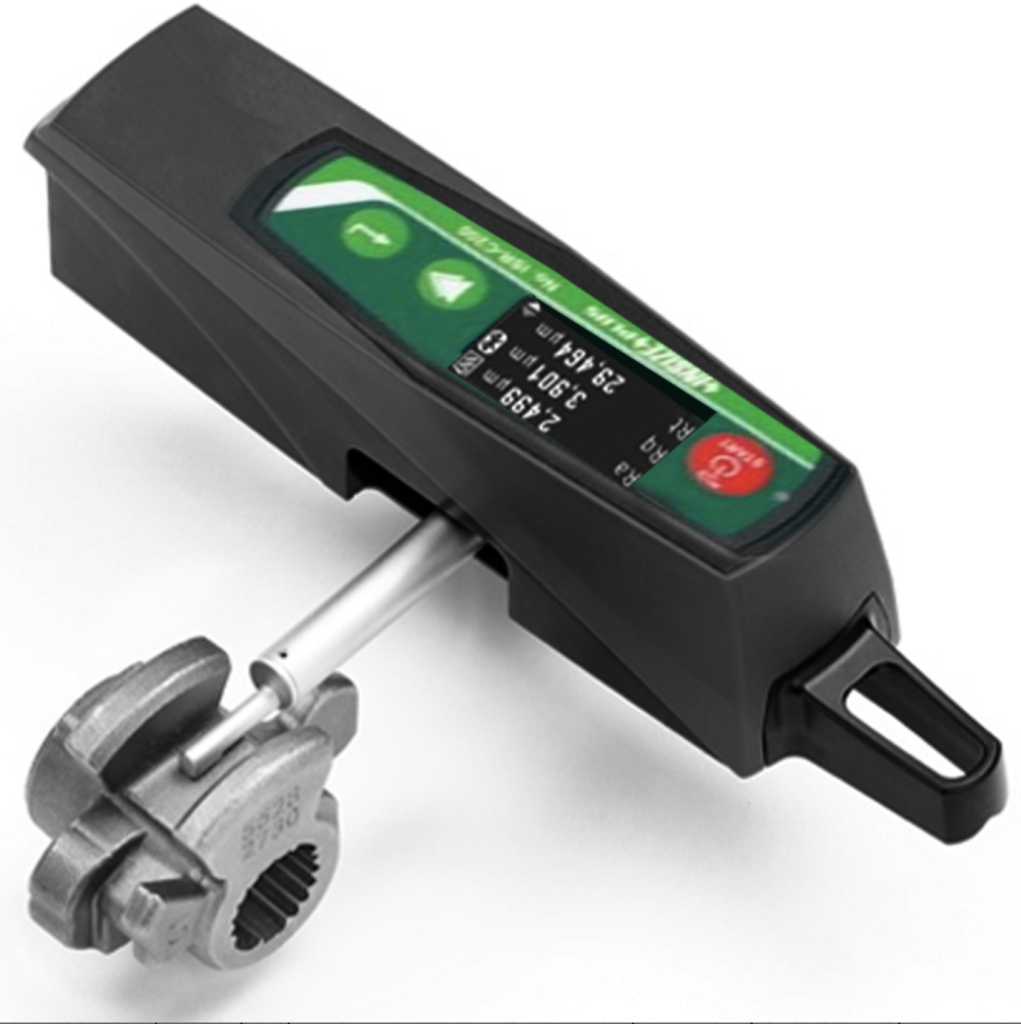

The INSIZE ISR-C200 Roughness Tester Deep Groove Probe

Ask Question
Category: Product ID: 5208

Description

  • Parameters: Ra, Rq, Rt, Rz, Rc, Rmax, RSm, Rpc, Pt, R, AR, Rx, Ppc
  • Range:
    • X axis: 17.5mm
    • Z axis: 250µm
  • Accuracy: ±(5%+0.025)µm
  • Resolution: Ra: 0.001µm
  • Probe type: inductive
  • stylus radius/angle: 2µm/90°
  • stylus material: diamon
  • Measuring unit: µm/µin
  • Cut off: 0.25/0.8/2.5mm
  • Number of cut-off: 1~5
  • Traverse speed: 0.5mm/s, 1mm/s
  • Memory: 1800 measurements with only parameters, 30 measurements with graph
  • Power: built-in rechargeable battery
  • Dimensions: (LxWxH): 160x34x33.5mm
  • Weight: 200g
