INSIZE Handheld Raman Spectrometer (Basic Type)

INSIZE Handheld Raman Spectrometer (Basic Type) INSIZE Handheld Raman Spectrometer (Basic Type) gallery

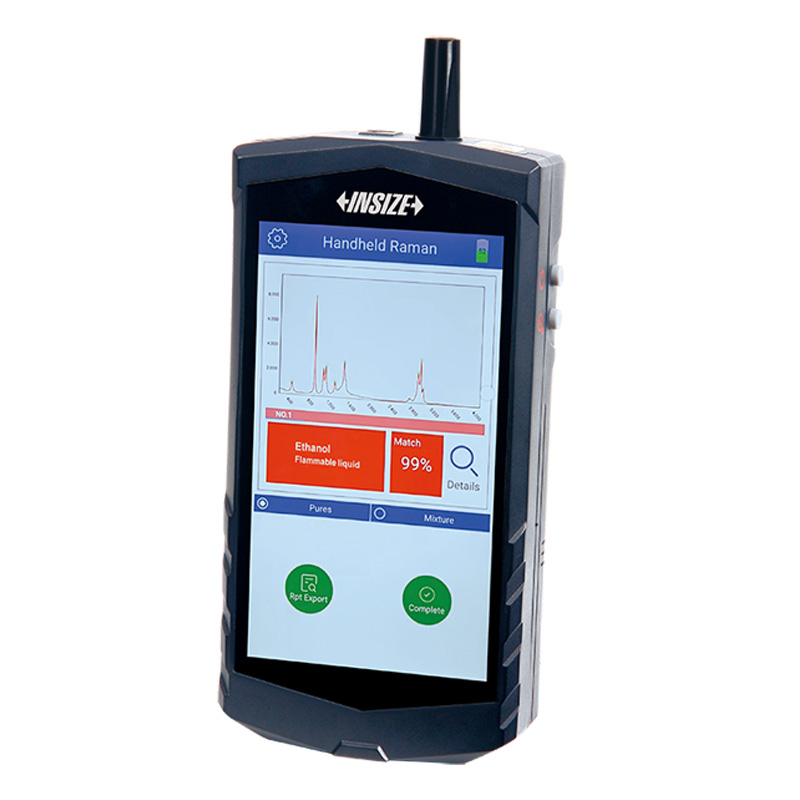

INSIZE Handheld Raman Spectrometer (Basic Type)
INSIZE Handheld Raman Spectrometer (Basic Type) gallery

INSIZE Handheld Raman Spectrometer (Basic Type)

The INSIZE HHL-R240 handheld XRF analyzer is designed for fast and accurate identification of metals, alloys, and material composition. It provides non-destructive testing, rapid results, and high precision, making it ideal for quality control, scrap metal sorting, manufacturing, and laboratory applications.

Ask a question
Description Specification Documentation Video
  • One-touch operation, non-destructive, fast detection and identification
  • Equipped with raman spectral recognition algorithms, including standard spectra of up to 10,000 kinds of substances
  • Supports analysis of pure substances and mixtures, with the ability to create user-owned database
  • 5.5″ screen and dual cameras to record the inspection site at all times
  • Test results support export PDF reports

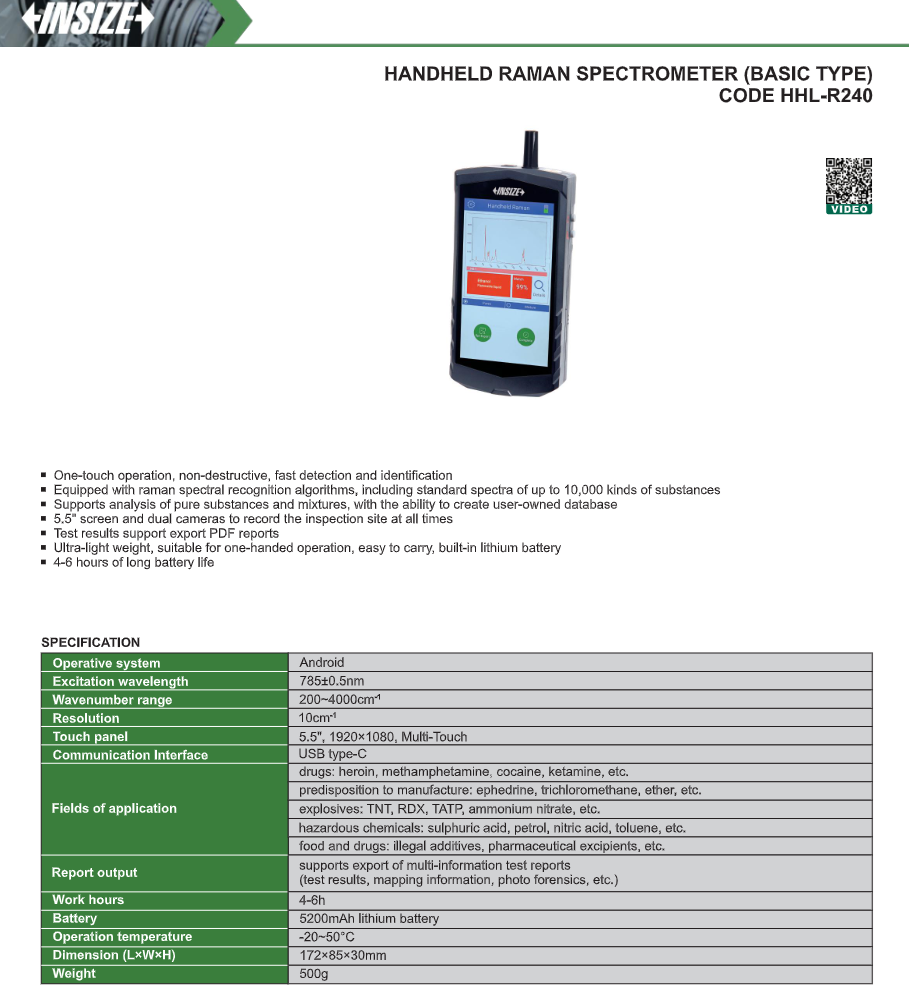

Specifications

predisposition to manufacture: ephedrine, trichloromethane, ether, etc.

Operative system Android
Excitation wavelength 785+/-0,5nm
Wavenumber range 200~4000cm-1
Resolution 10cm-1
Touch panel 5.5″, 1920×1080, Multi-Touch
Communication interface USB type-C
Fields of application drugs: heroin, methamphetamine, cocaine, ketamine, etc.
predisposition to manufacture: ephedrine, trichloromethane, ether, etc.
explosives: TNT, RDX, TATP, ammonium nitrate, etc.
hazardous chemicals: sulphuric acid, petrol, nitric acid, toluene, etc.
food and drugs: illegal additives, pharmaceutical excipients, etc.
Report output supports export of multi-information test reports (test results, mapping information, photo forensics, etc.)
Work hours 4-6h
Battery 5200mAh lithium battery
Operation temperature -20~50°C
Dimension (LxWxH) 172x85x30mm
Weight 500g
