Description
The Horizon Calibration HC3, HC4 and HC5
The Horizon Calibration HC3, HC4 and HC5 instruments fulfill today’s requirements of high accuracy quality control equipment in production areas and take into consideration EN ISO 9000 standards.
The instruments may be used in a workshop area or installed in a quality control room for checking of measuring gauges and setting of all types of comparative measuring equipment. The well-designed, reliable new concept, obtained by superior engineering, ensures high precision and optimum results by easy manipulation as well as a valuable level of productivity.

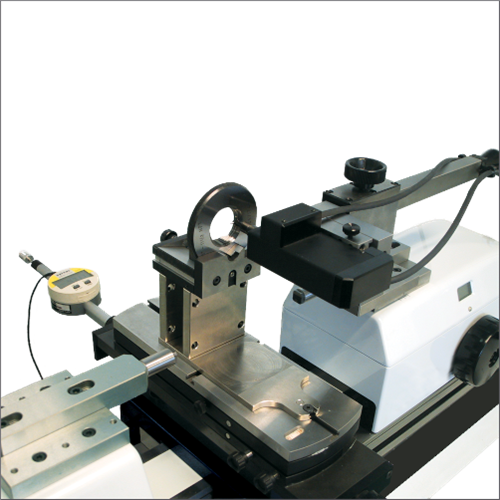

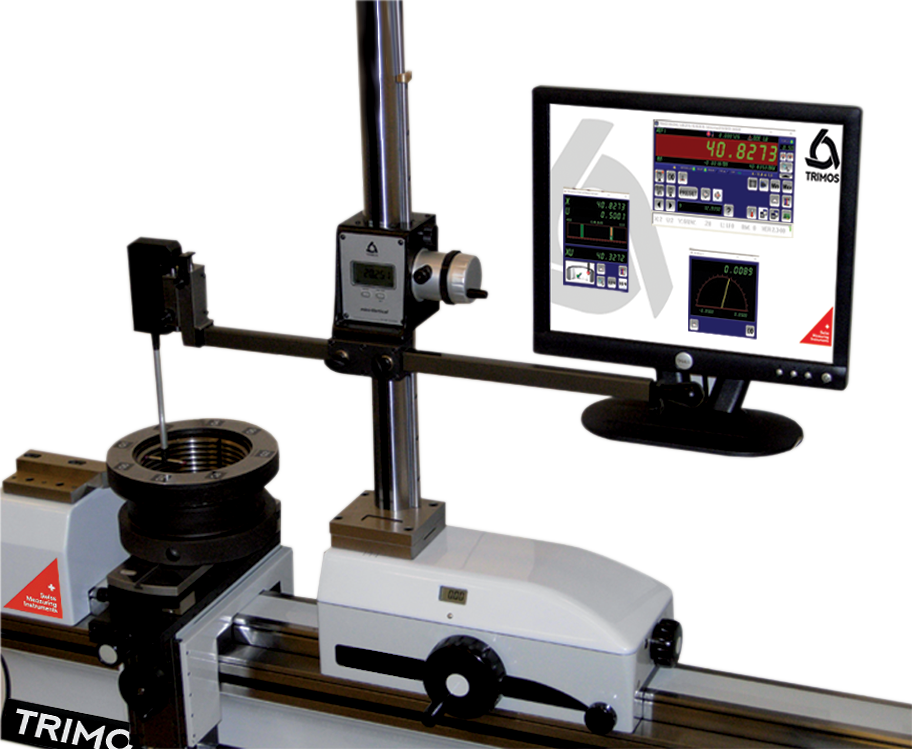

The instrument is equipped with computer, TFT screen and Trimos-WinDHI software.
Instruments with a measuring range from 500 to 3000 mm are available, all of them built in one single piece. All measuring ranges being direct, it means that the whole measuring range is available without adjustment or intermediate re-calibration.

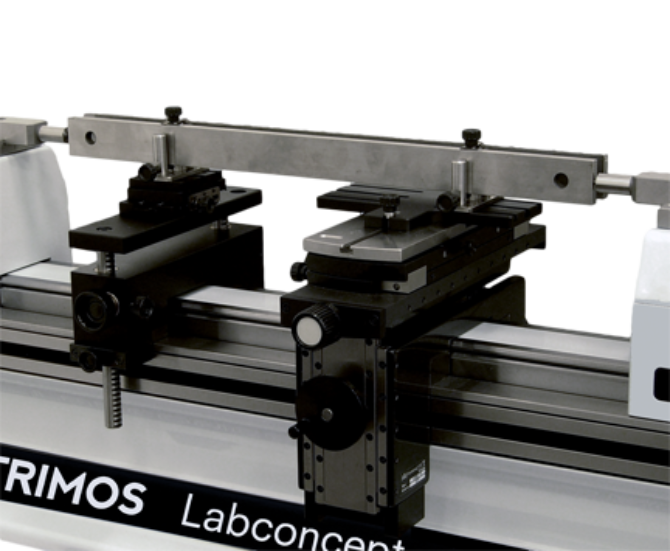

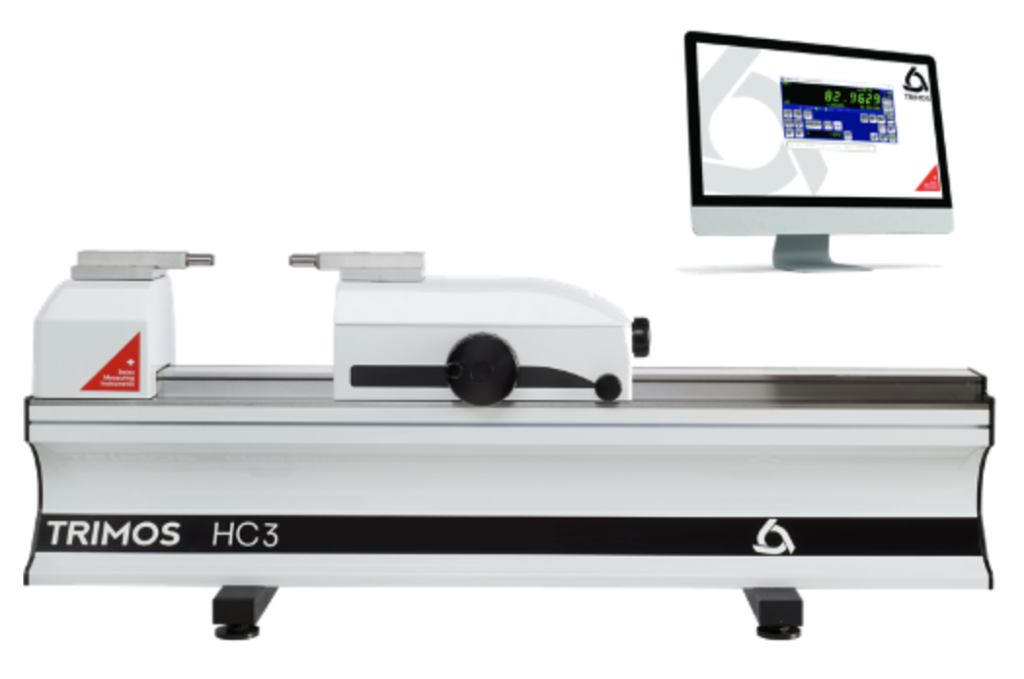

| HC3 | 500 | 1000 | 1500 | 2000 | 3000 | |
| Measuring range * | mm (in) | 550 (20) | 1050 (40) | 1550 (60) | 2050 (80) | 3050 (120) |
| Max. permissible errors, BMPE 1) | µm | 0.6+L(mm)/1200 | ||||
| Repeatability, RMPE (2s) | µm | 0.1 | ||||
| Maximum resolution | mm | 0.00001 | ||||
| Fixed measuring force | N | 0.3 2,3) / 0.5 2,3) / 1 ÷ 12 3) | ||||
| Max. displacement speed | mm/s | 4000 | ||||
| Operating temperature | °C | +10 ÷ +40 | ||||
| Relative humidity | % | 20 ÷ 80 | ||||
| Weight | kg | 94 | 123 | 152 | 181 | 239 |
| HC4 | 500 | 1000 | 1500 | 2000 | 3000 | |
| Measuring range * | mm (in) | 550 (20) | 1050 (40) | 1550 (60) | 2050 (80) | 3050 (120) |
| Max. permissible errors, BMPE 1) | µm | 0.3+L(mm)/2000 | ||||
| Repeatability, RMPE (2s) | µm | 0.1 | ||||
| Maximum resolution | mm | 0.00001 | ||||
| Fixed measuring force | N | 0.3 2,3) / 0.5 2,3) / 1 ÷ 12 3) | ||||
| Max. displacement speed | mm/s | 4000 | ||||
| Operating temperature | °C | +10 ÷ +40 | ||||
| Relative humidity | % | 20 ÷ 80 | ||||
| Weight | kg | 94 | 123 | 152 | 181 | 239 |

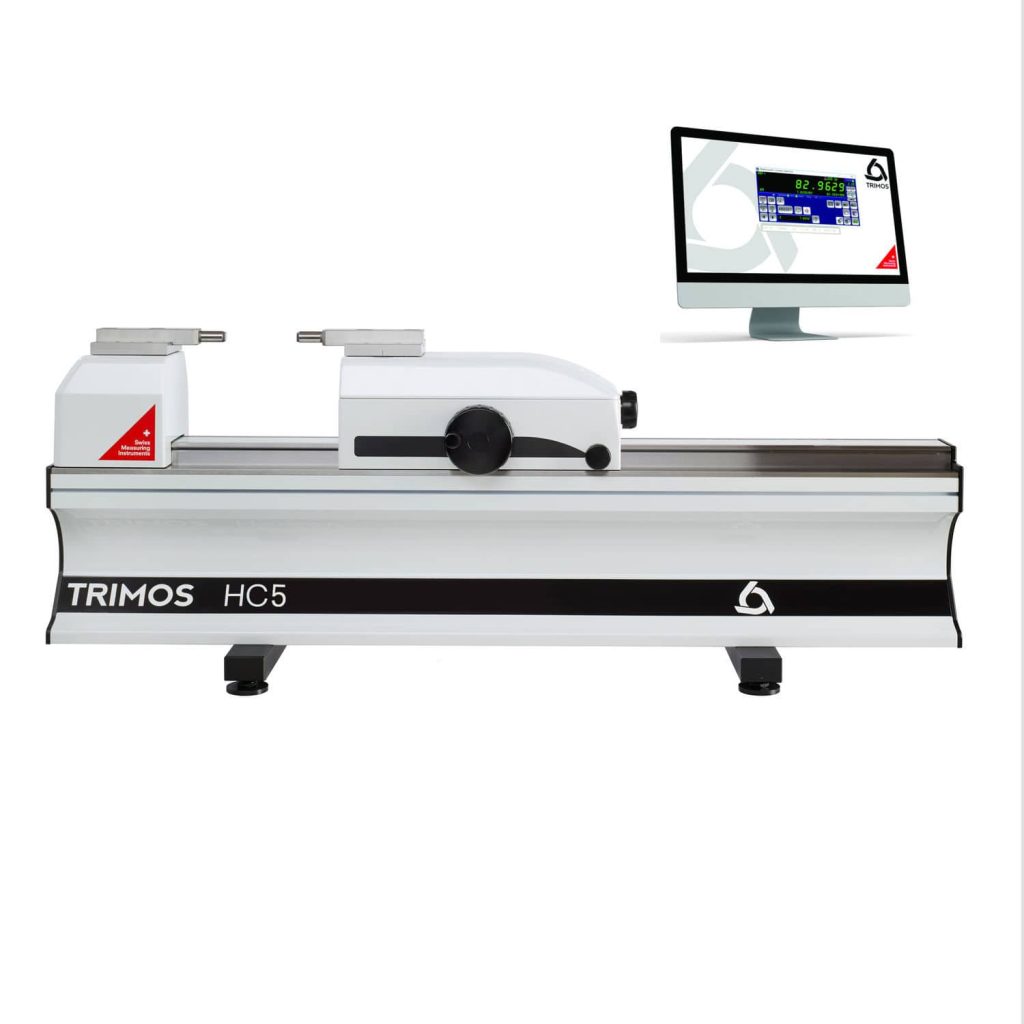

| HC5 | 300 | 500 | 1000 | |
| Measuring range * | mm (in) | 350 (13) | 550 (20) | 1050 (40) |
| Max. permissible errors, BMPE 1) | µm | 0.1+L/2000 | 0.15+L/2000 | |
| Repeatability, RMPE (2s) | µm | 0.05 | ||
| Maximum resolution | mm | 0.00001 | ||
| Fixed measuring force | N | 0.3 2,3) / 0.5 2,3) / 1 ÷ 12 3) | ||
| Max. displacement speed | mm/s | 4000 | ||
| Operating temperature | °C | +10 ÷ +40 | ||
| Relative humidity | % | 20 ÷ 80 | ||
| Weight | kg | 78 | 94 | 123 |
