Description
Belec Compact Port HLC
Portable Optical Emission Spectrometer
The Belec Compact Port HLC is the World’s only Portable Hybrid Spectrometer for Metal Analysis For perfect Analysis of Carbon combined with Best and Unique Flexibility and latest 6GSO-System.
What has only be known from huge laboratory spectrometers, now comes true also in our latest portable spectrometer generation.
Belec engineers have again developed a unique solution – the hybrid-double-spectrometer inside the new Belec Compact Port HLC.
Flexibility combined with best possible precision: By using the latest digital detectors (CCD) which cover the entire spectral range for consequent line selection without compromises, plus high performing Photomultipliers for selected elements like Carbon that guarantee lowest detection limits and unattained performance.
Applications
THE BELEC COMPACT PORT HLC IN USE
The Belec Compact Port HLC spectrometer offers a variety of application possibilities. Whether it is used for measurings in production areas, on pipes in construction sites or on scrap yards – moving from one application to another is no problem for the instrument with its heat-stabilised climatic chamber. Furthermore, only one person is needed for transport and operation of the equipment.

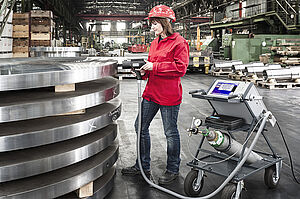

![[Translate to Englisch:] Anwendungsbeispiel Belec Compact Port HLC](https://www.belec.de/fileadmin/_processed_/9/4/csm_Belec_452_Variante_b1dc04b32c.jpg)
High-precision analysis and quick mix-up check
Every type of probes is especially designed for an appropriate use. For each analysis assignment you have the most suitable equipment at your disposal. Your high-precision analytical apparatus can be converted into a quick mix-up checking instrument in no time.
Together with a device for an argon bottle, storage for samples or grinder, the spectrometer turns into a mobile laboratory on an adequate trolley. Due to the ergonomically designed construction a comfortable operation of the equipment is granted.
Accessories
Belec offers a number of accessories, both for mobile use at different places and localized use of the stationary instruments.
Whether sparking probes for mobile use with the Belec Compact Port HLC or in addition to the sparking table of the Belec Vario Lab – get to know more about our additional solutions for your individual requirements.
A number of adapters allow the testing of most different sample types as wires, tubes or other small parts. Due to especially developed adapters they can be analysed without any problems.
Furthermore, we offer our customers other solutions which exactly match with their applications.
Sparking Probes
Argon Probe
At Belec we produce handy sparking probes which are convincing because of its high measuring accuracy. In addition to other elements, the carbon content can be exactly analysed. By using a special optical procedure, measurements lower than 0,1 %C can be attained with the same accuracy as those achieved by special carbon analyzers.
Features
- argon-flushed sparking probe
- high measuring accuracy, incl. C
- non-destructive testing
- multi fibre quarz optics, 3m to 8m* length
- special probe connector system
- lightweight shockproof plasic probe housing
- adequate adapters available
Argon Probe UV
The Argon Probe UV allows the analysis of phosphorus and sulphur also with the Belec Compact Port HLC. The short wavelengths emitted by these elements can not be transmitted by an optical fibre, unlike carbon. Instead, a small spectrometer is built into the probe. At the same time, it keeps its easy and comfortable handling due to low weight.
Features
- argon-flushed sparking probe incl. C-analysis
- argon-flushed sparking probe incl. P, S, N*-analysis
- probe connector system
- multi fibre quartz optics, 3 m to 8 m*
- adapters for tubes, wires + small parts
- non-destructive material testing
Air Probe
The air probe comes into operation for quick mix-up checking. Inspection cycles of less than three seconds can be achieved, after which an approximate analysis and grade identification is displayed. If a mix is found, a visual and/or audible fault signal is generated, which must be confirmed by the operator.
Features
- air measurings
- quick mix-up testing
- multi fibre quarz optics, 3m to 8m* length
- special probe connector system
- lightweight shockproof plastic probe housing
- visual signal on mix-up testing incl. confirmation button
- adequate adapters available
Adapters
Wire Adapters
The hoder for the wire adapter can easily be mounted on the head of the argon standard probe. Like this, the correspondant wire adapters are fixed and allow the analysis of wires with the sparking probe.
The set of wire adapters can be used for wires from Ø 2mm to Ø 12mm in intervals of 0,5mm.
Tube Adapters
Do you need a tube adapter for your applications?
We offer the complete set of tube adapters for standardised outer diameter. The 9-piece set of adapters can easily be transported in a small box and e. g. deposited on the trolley.

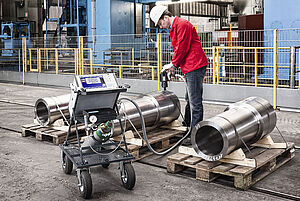

![[Translate to Englisch:] Anwendungsbeispiel Belec Compact Port HLC](https://www.belec.de/fileadmin/_processed_/b/a/csm_Belec_550_Variante_01_0ac272c0ac.jpg)
Belec Compact Port HLC — applications
