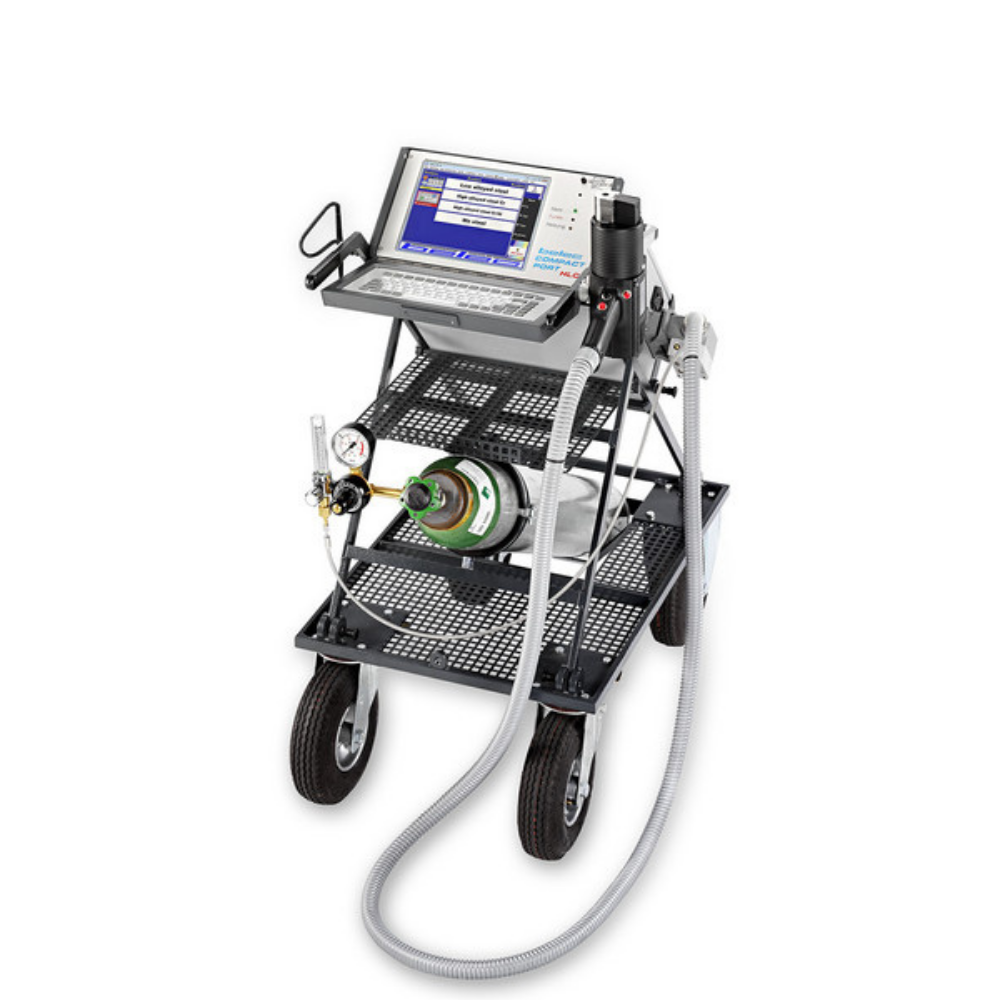

Belec Compact Port HLC is a compact portable optical emission spectrometer (OES) designed for fast, accurate on-site metal analysis. It provides laboratory-grade performance in a mobile format, enabling the identification of up to 70 elements, including carbon, phosphorus, sulfur, boron, tin, and nitrogen. With interchangeable sparking probes, battery-powered operation, and a rugged design, it is ideal for quality control, PMI, scrap sorting, and industrial field inspections.
Our Belec Compact Port HLC is your reliable partner for mobile metal analysis. With its robust design and state-of-the-art technology, it delivers accurate results, whether in the laboratory or directly on site. Rely on our over 50 years of experience in mobile spectrometry.
The Belec Compact Port HLC offers you maximum flexibility: It can be equipped with three different sparking probes that are optimally tailored to your specific requirements. Each probe is designed to ensure accurate results in different application scenarios.
Choose from three models: UV+ probe, Argon probe, Air probe
| Sparking Probe Features | UV+ Probe (N*) | Argon Probe | Air Probe |
|---|---|---|---|
| argon-flushed sparking probe incl. C-analysis | YES | YES | – |
| argon-flushed sparking probe incl. P, S, N*-analysis | YES | – | – |
| probe connector system | YES | YES | YES |
| quick mix-up checking | – | – | YES |
| multi fibre quartz optics, 3m to 8 m* | YES | YES | YES |
| adapters for tubes, wires + small parts | YES | YES | YES |
| non-destructive material testing | YES | YES | YES |
| Features | Details |
| Weight analysis unit | 50.7 lbs. (23,00 kg) |
| Weight UV+ probe | 3.9 lbs. (1,75 kg) |
| Weight Argon probe | 2.9 lbs. (1,30 kg) |
| Weight Air probe | 1.8 lbs. (0,80 kg) |
| Dimensions W x H x D | 16.5 x 7.9 x 19.3 in. (420 x 200 x 490 mm) |
| Analysis spectrum | All common metals |
